Reversing the door swing.

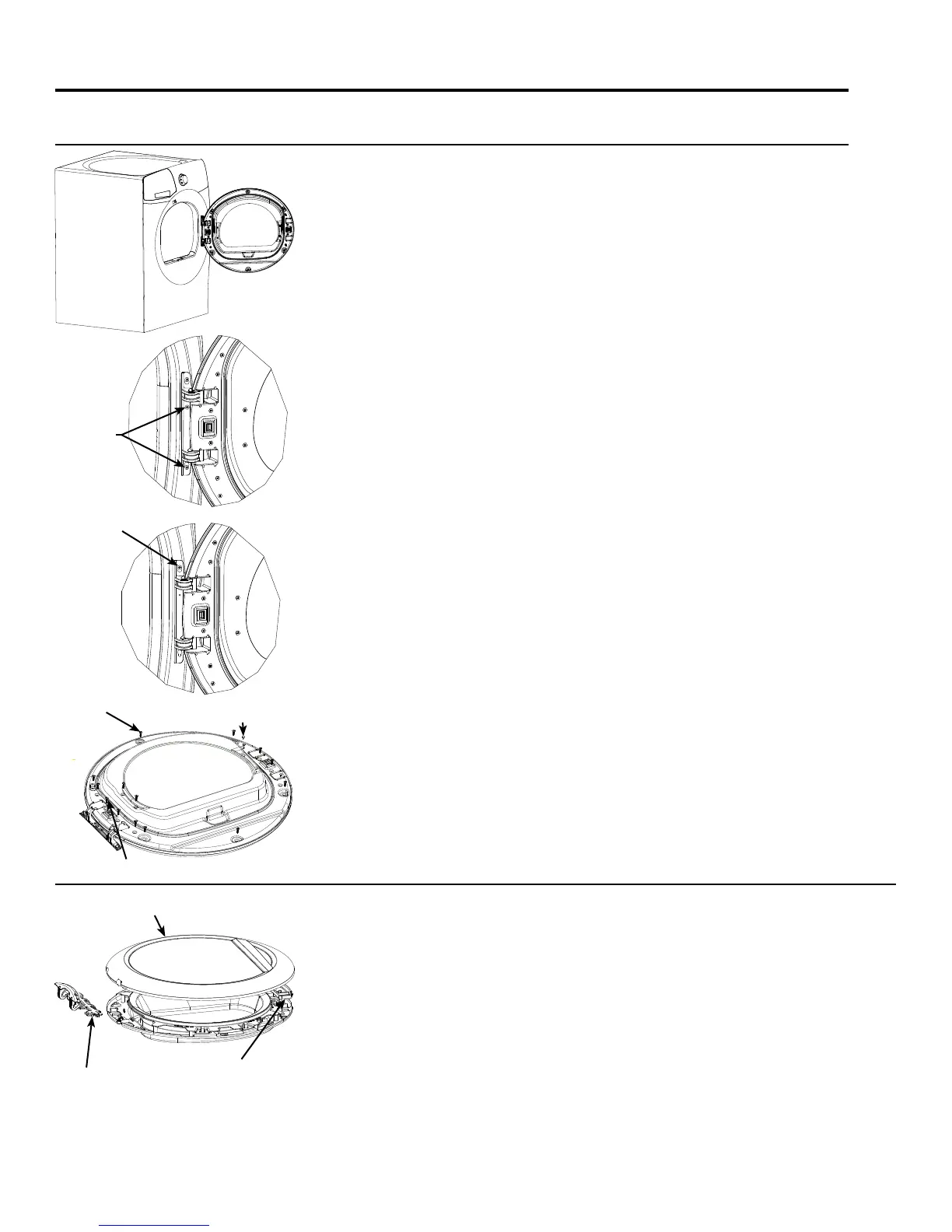

STEP-BY-STEP INSTRUCTIONS (cont.)
Remove Door Assembly
2. Open the door to approximately 130 degrees.
3. Remove the 4 screws starting from the bottom to the top. Make sure the door
is supported while removing the screws.
4. Loosen the top screw as shown. Unhook the door by lifting and pulling.
5. Place the door on a soft protected flat surface so the inner door faces upward
(door resting on handle side). Remove the 8 tapping screws located around the
perimeter of the door outlining the gasket. Remove the 4 machine screws.
Remove
Top Screw
8-#10 Tapping Screws
4-# 8 Machine Tapping Screws
4 Beauty Buttons
Outer Door Assembly
Hinge Assembly
Hinge Cover
Remove Hinge and Cover
IMPORTANT: Note the location of the hinge (left or right) before removing.
6. With the screws removed, turn the door over and separate the outer door assembly
and hinge cover of the door from the door frame and set aside.
To Next Page
