Installation
Installing the capacitors
GE Information L31- 742EN/03
4/4
03- 2017
Installing the capacitors
Process

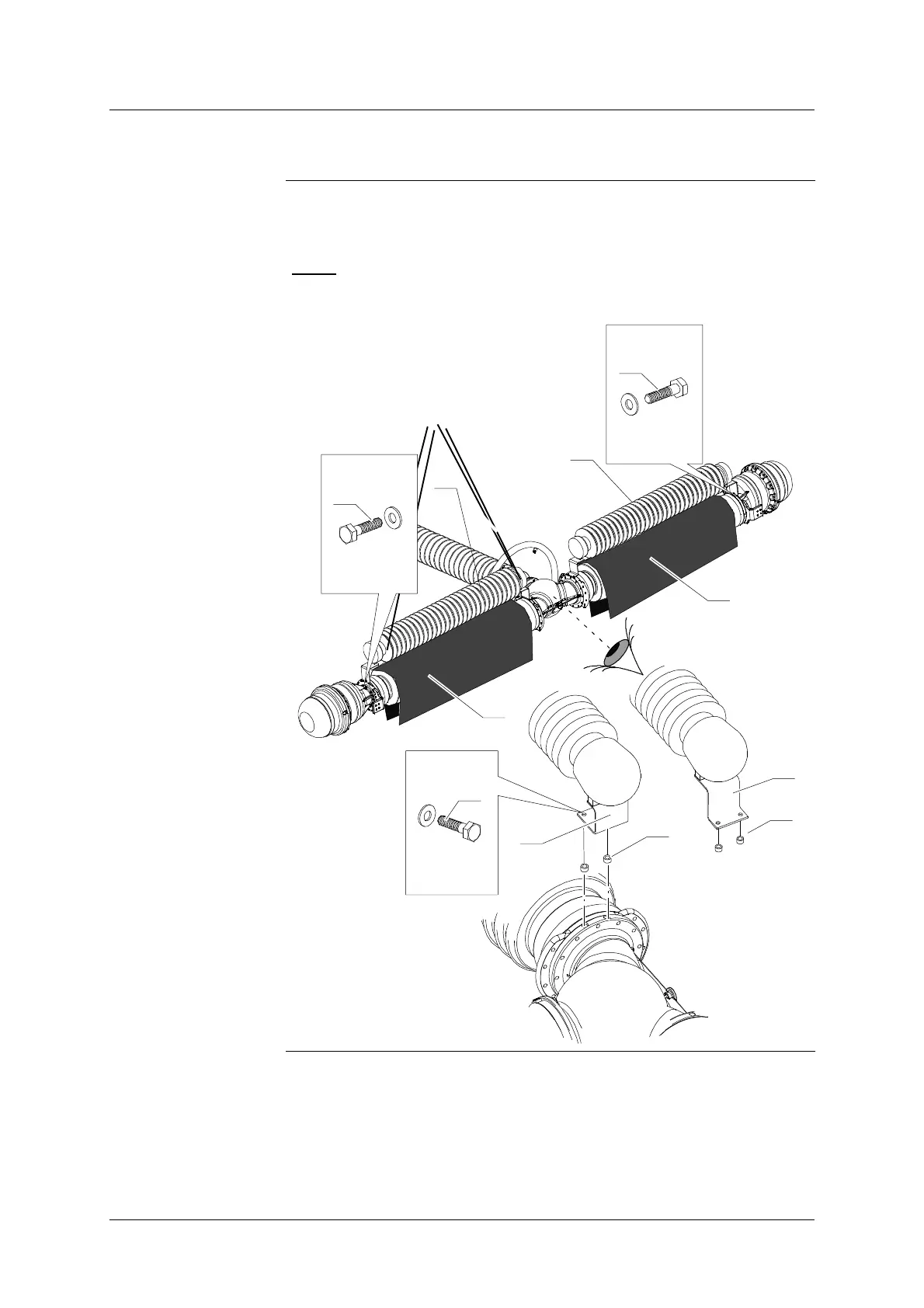

Install the capacitors (1) on the interrupting chambers (6) and (7) using the
screws (8) and (9).
NOTE
: Use the two spacers (10) to install the capacitors - capacitor
support (4) side.
10
x2
HM12-45
5daN.m
8
4
1
10
4
1
6
7
x2
HM12-25
5daN.m
9
x2
HM12-25
5daN.m
9
