Installation
Installing terminals
with p reparation o f con t act surfaces
GE Information L31- 508EN/04
4/4
03- 2017
Installing terminals

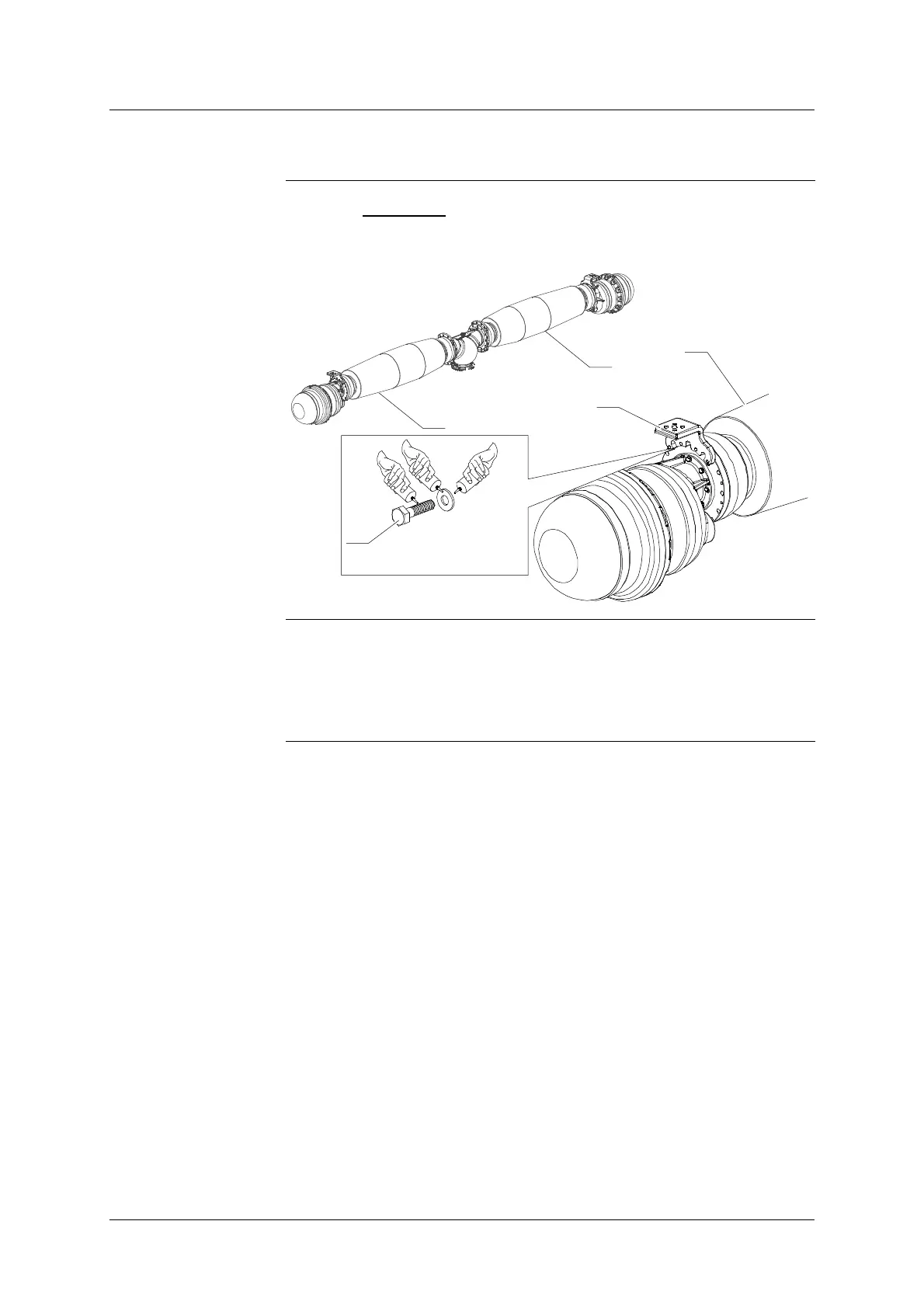

Process
Assemble immediately
the terminals (1) on the interrupting chambers (2) after
preparation of contact surfaces. Fasten the terminals using screws (3); use
CONTACT GREASE to seal the screws.
2
2
1
2
x4
HM12-45
5daN.m
3
Comment
D The electrical resistance value of the assembly should be :
R 2
D Before installing H.V. connectors, prepare the contact surfaces in the
same way.
