Installation
Installing the capacitors
GE Information L31- 603EN/03
4/4
03- 2017
Installing the capacitors
Process

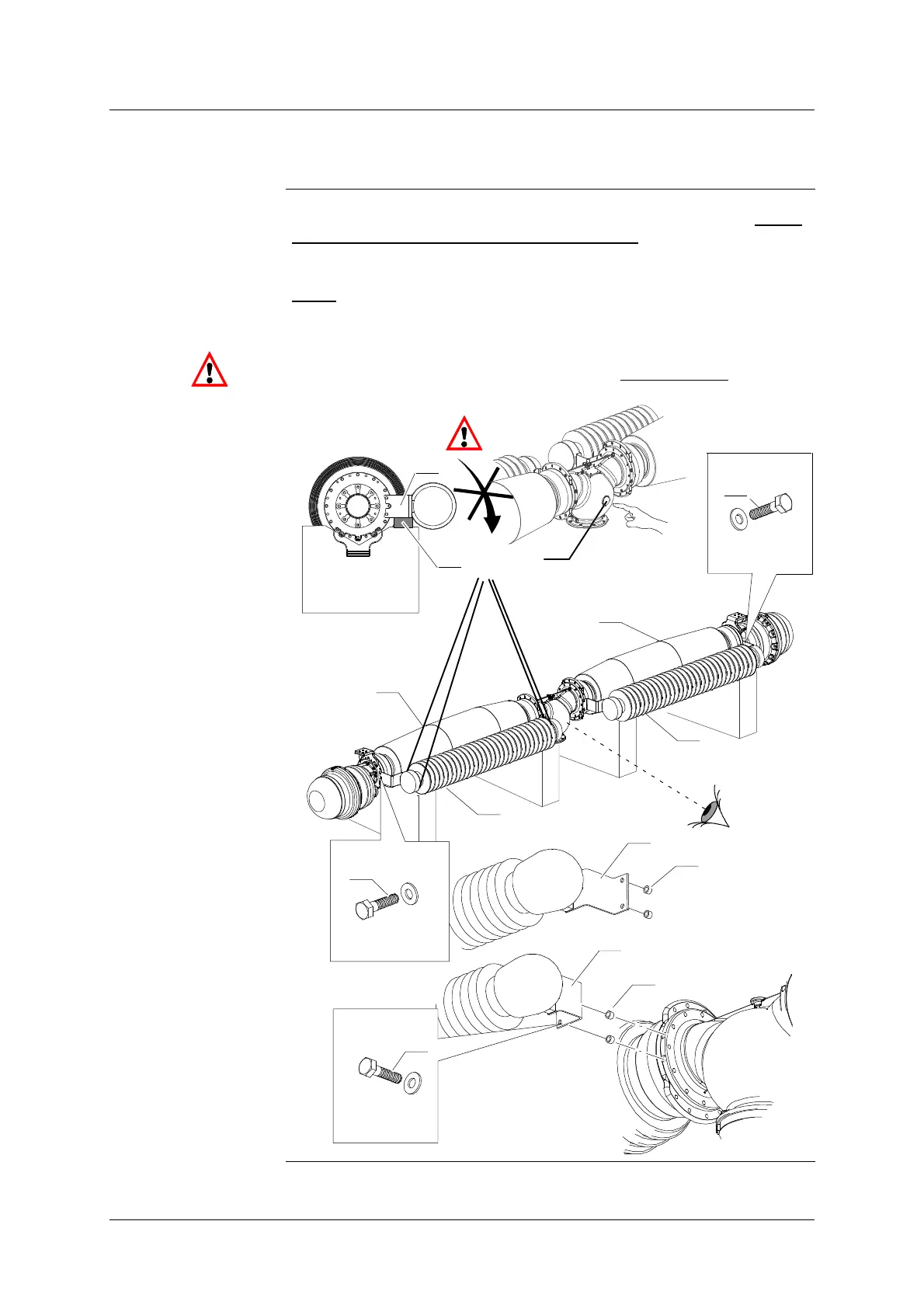

Install the capacitors (1) on the interrupting chambers (6) and (7) - on
the
opposite side as the bosse of the housing (13)
- using the screws (8)
and (9).
NOTE
: Use the two spacers (10) to install the capacitors - capacitor
support (4) side.
To avoid the rotation of the interrupting chambers, insert a wedge (13)
under the supports of the capacitors (3)- (4) after installing
.
10
10
4
4
13
3- 4
7
1
6
x2
HM12-25
5daN.m
9
x2
HM12-45
5daN.m
1
8
15
x2
HM12-25
5daN.m
9
