Installation
Chamber - Column Coup ling
GE Information L31- 7143EN/02
7/16
03- 2017
Final coupling
Orientation of the
chambers
To aid later identification of the chambers it is of the utmost important that they
be coupled the right way round.

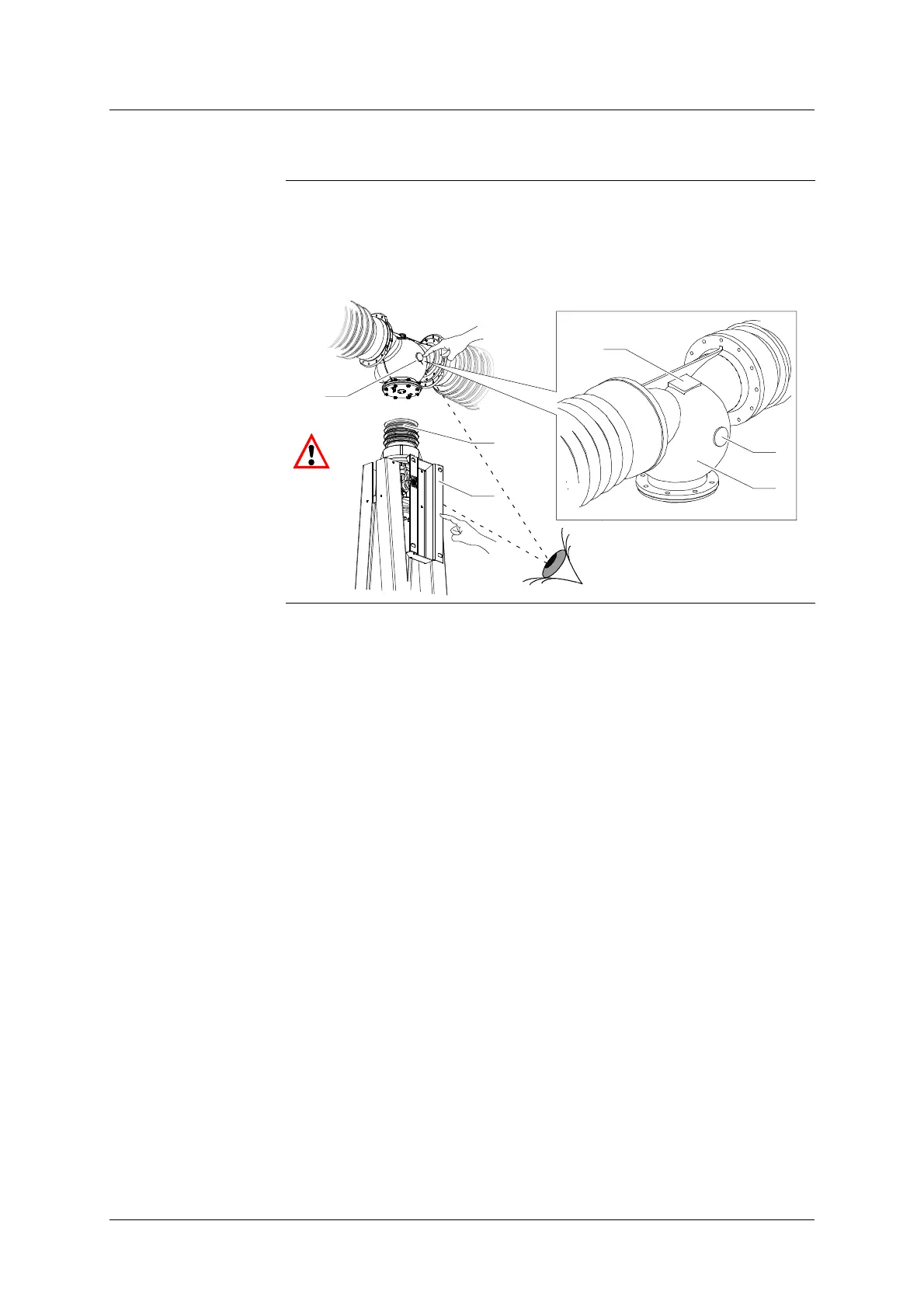

There are two ’humps’ (B1 & B2) on the casing (2).
Set the chambers level with the column (1) so that the humps (B1 & B2) on
the casing (2) are on the same side as the control mounting (3).
2
3
1
B2
2
B1
Continued on next page.
