Installation
Installation of operating device
GE Information L31- 7902EN/02
4/12
11- 2016
Preparing the pole operating shaft, continued
“Manual opening”
operation

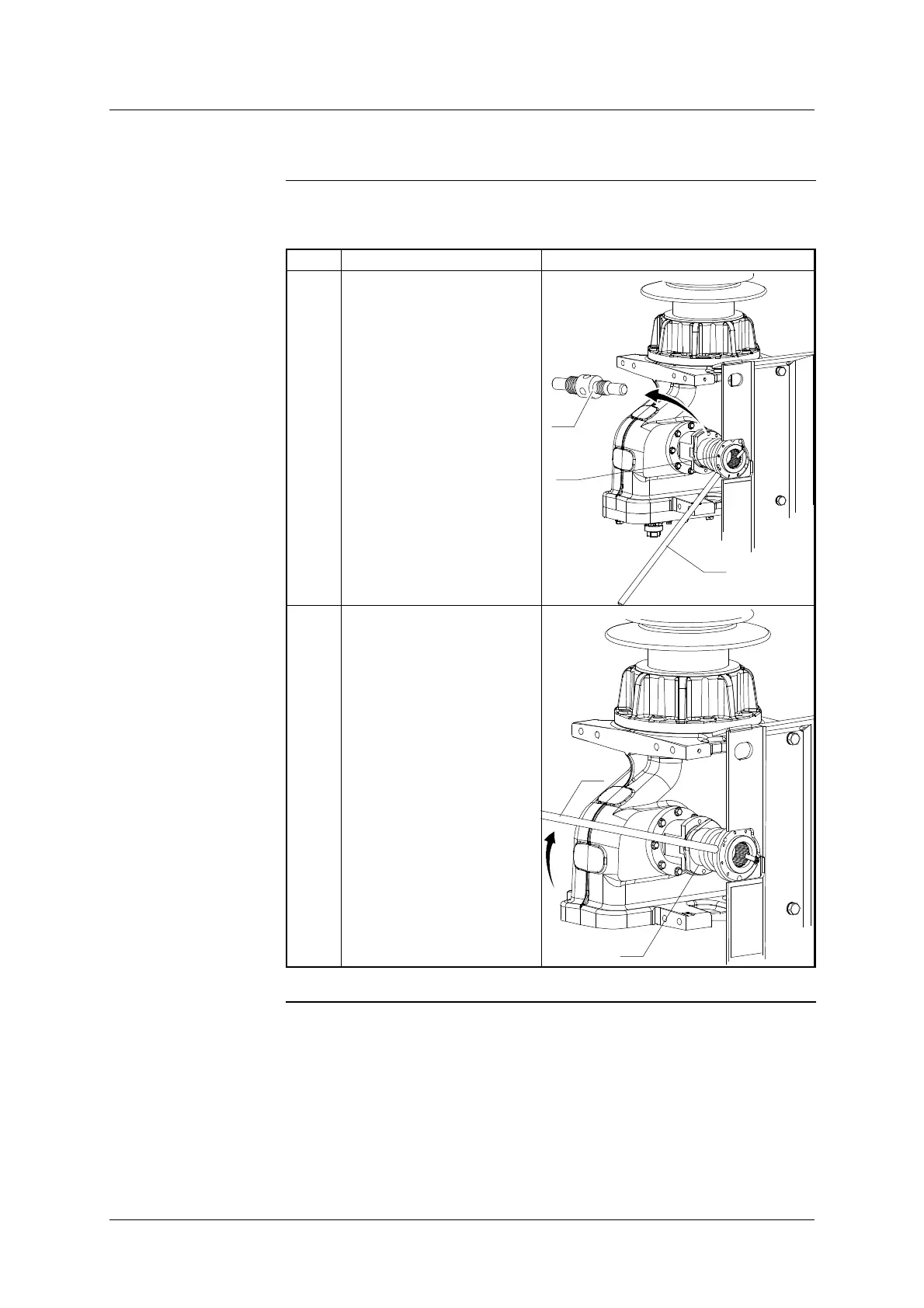

The table below gives the steps of “manual opening” operation :
Step Action Diagram
1 Remove the securing tool
(4) then screw the operating
lever (6) onto the flange on
the front of the handle
sleeve (12).
12
4
6
2 With the help of the lever (6),
effect a 60 rotation of the
sleeve (12).
6
12
