Installation
Chamber - Column Coup ling
GE Information L31- 7142EN/02
5/18
03- 2017

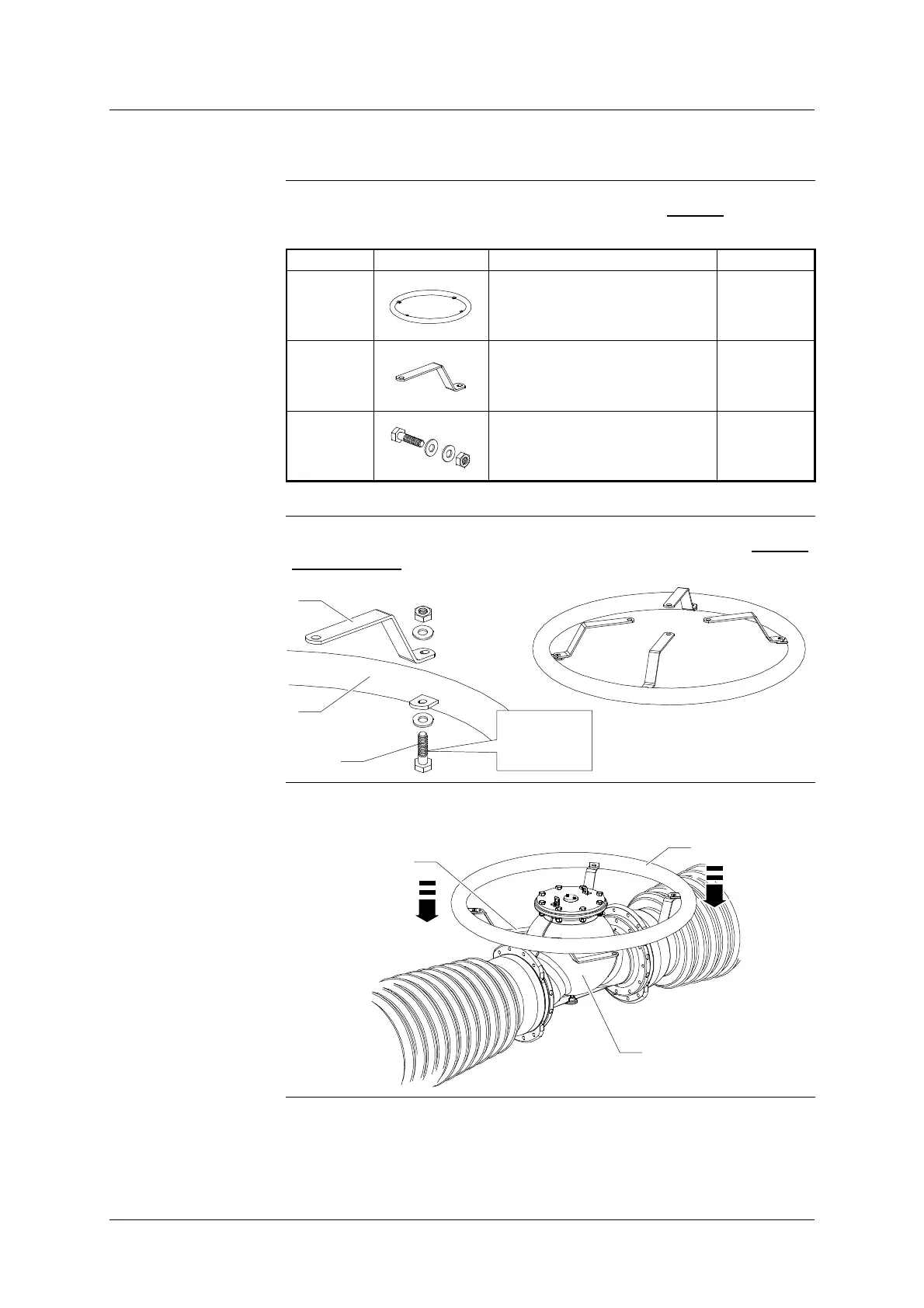

Preparing t he co lu mn’s corona shield
Elements required:
Grid Solutions
List of Grid Solutions elements required for assembly (per pole
):
Mark Illustration Description Quantity
(50) Corona shields 1
(51) Lugs 4
(52)
Fittings
H M10-30
4
Assembly
Attach the lugs (51) to the corona shield (50) using the fittings (52)
without
overtightening
.
50
51
52
x4
HM10-30
Positioning
Temporarily position the corona shield (50) and lugs (51) on the casing (2).
50
51
2
