Installation
Chamber - Column Coup ling
GE Information L31- 7142EN/02
7/18
03- 2017
Preparing the elements required for the coupling operation (continued)
Tools required
Grid Solutions

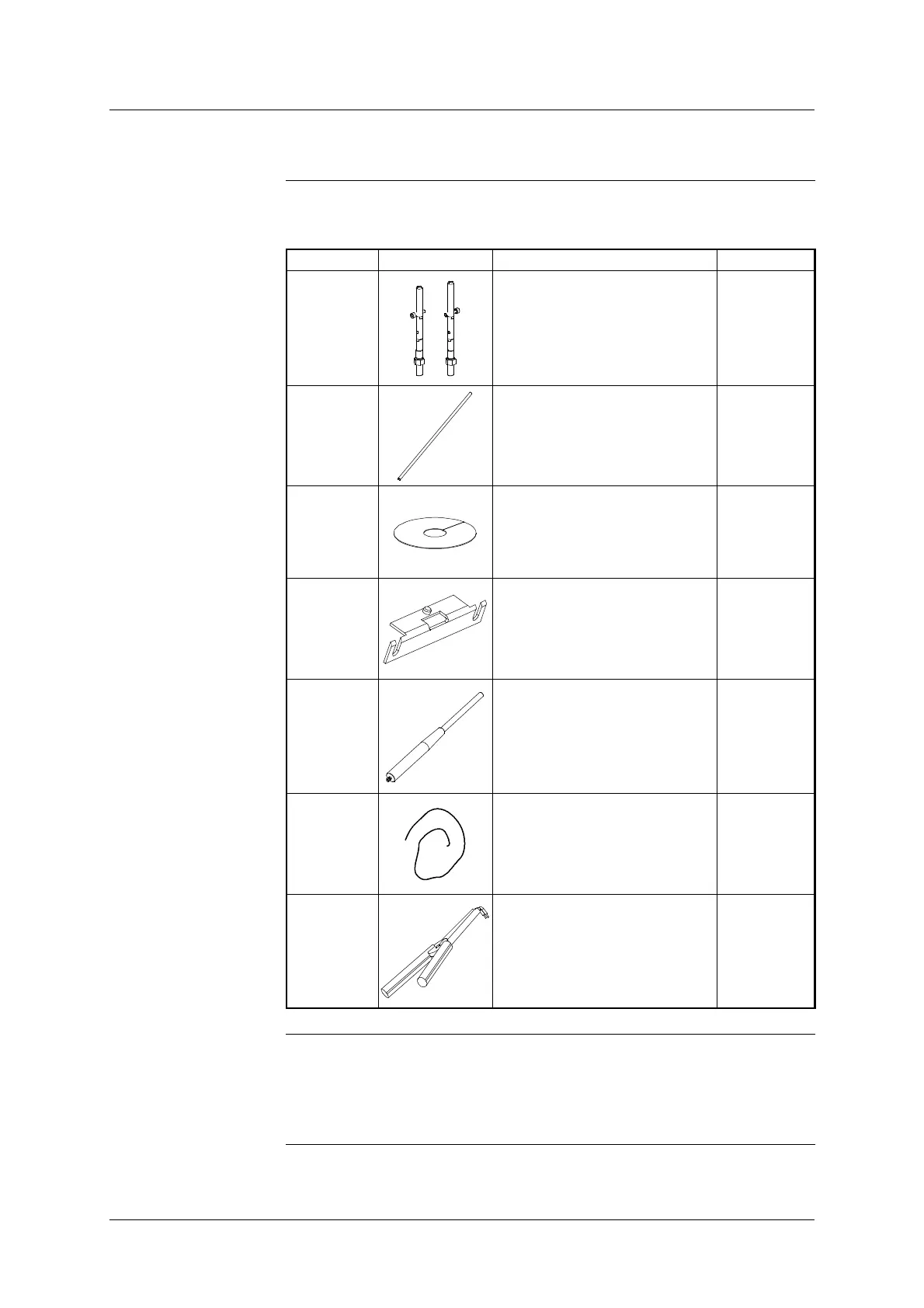

List of Grid Solutions tools necessary for the operation:
Mark Illustration Description Quantity
(30)
(31)
”Short” centring pin
”Long” centring pin
1
(32) Lever 1
(33) Protective mask 1
(34) T rolley stop 1
(35)
Fitting tool for
coupling pin
1
(36)
(80 cm)
Rigid electrical wiring cable
1
(37)
Circlip clamp
(not supplied).
1
Products required
S MOLYKOTE M11 1 Grease: greasing contact surfaces
S LOCTITE 225: locking fitting in place
S MOBILPLEX 47 - MOBILUX EP3: greasing fittings
