Installation
Tipping d o wn th e po le of the circuit- breaker
and vacuum operation
GE Information L31- 722EN/03
2/4
03- 2017
Tipping d o wn th e po le of the circuit- breaker
Process

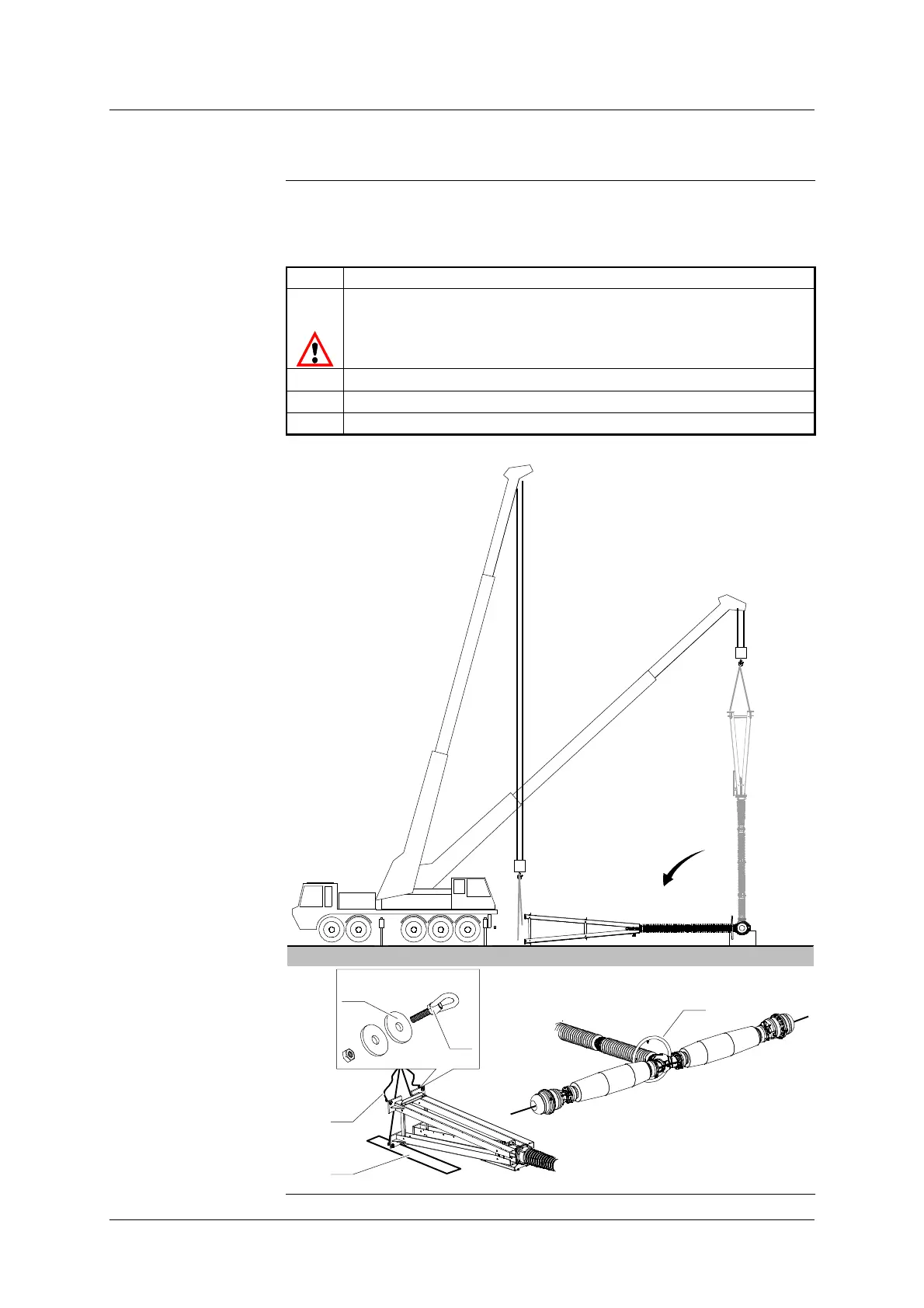

The table below gives the steps of tipping down the pole of the circuit-
breaker :
Step Action
1 Using the lifting device, slowly tip down the pole around the axis of
the interrupting chambers until the ground.
Pay attention to do not damage the stress- shields ring (11).
2 Lay the supports of the frame on two wood boards (12).
3 Remove the flexible lifting straps (15).
4 Remove the ring bolts (13) and the thick washers (14).
11
12
x4
13
14
15
