11
Installation Instructions

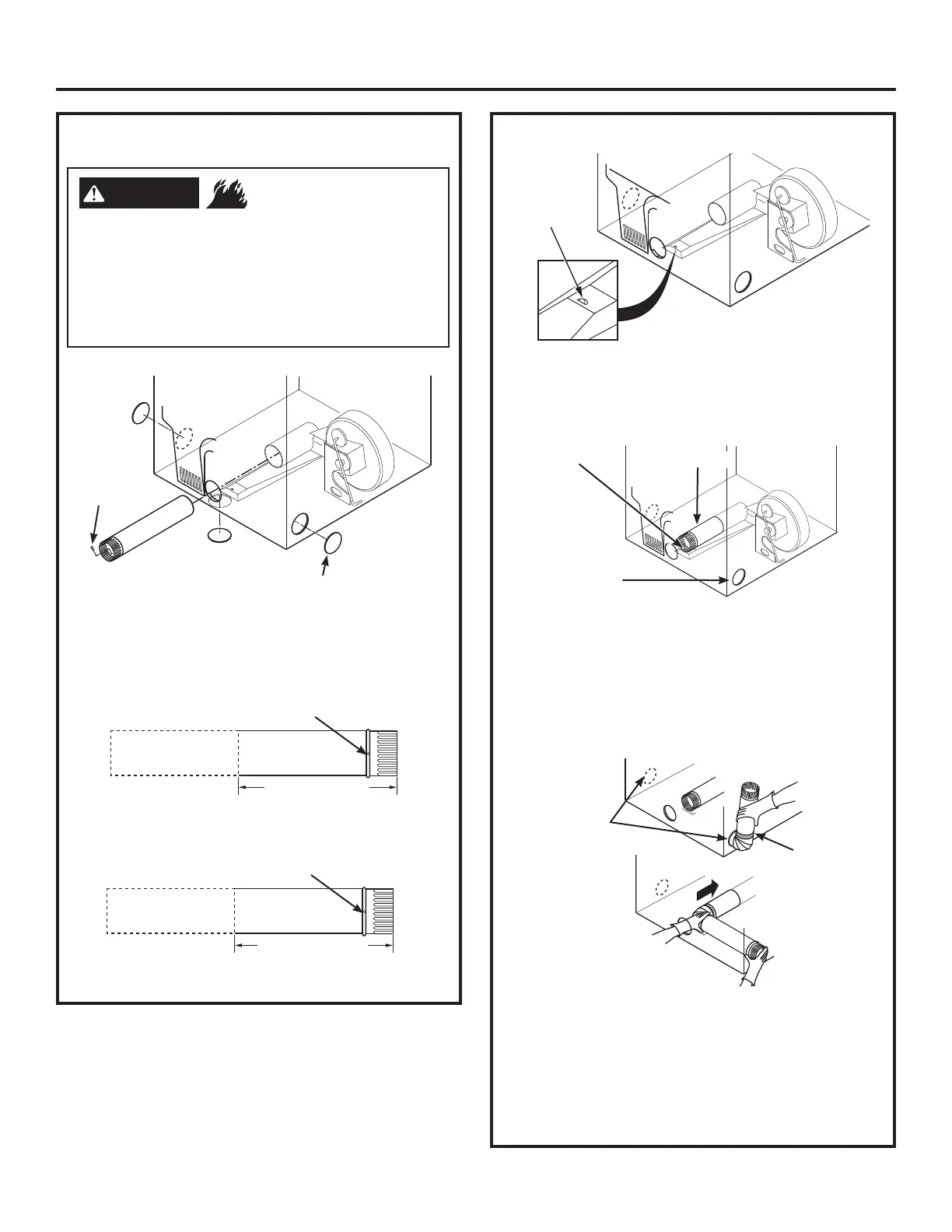

SIDE OR BOTTOM VENTING
Detach and remove the right, left or bottom
knockout as desired. Remove the screw inside the
dryer exhaust duct and save. Pull the duct out of
the dryer.
Reconnect the cut portion (A) of the duct to the
blower housing. Make sure that the shortened
duct is aligned with the tab in the base. Use the
screw saved previously to secure the duct in place
through the tab on the appliance base.
ADDING ELBOW AND DUCT FOR EXHAUST TO
LEFT OR RIGHT SIDE OF CABINET
• Preassemble 4” elbow with 4” duct. Wrap duct
tape around joint.
•
Insert duct assembly, elbow first, through the
side opening and connect the elbow to the dryer
internal duct.
Be sure not to pull or damage the electrical wires
inside the dryer when inserting the duct.
TAB LOCATION
- Fire Hazard
WARNING
Close the back opening with cover plate (Kit
WE1M454).
Disconnect dryer from electrical supply.
Wear gloves and arm guards.
Failure to do so may result in fire, electrical shock
or lacerations.
Through the rear opening, locate the tab in the
middle of the appliance base. Lift the tab to about
45°,
using a flat-blade screwdriver.
ADDING A NEW DUCT
Exhaust can
be added to
left or right
Duct
tape
BEND TAB
UP 45
o
Portion “A”
Right or left
side exhaust
Fixing
hole
For models GTD60, GTD65 and GTD68 only, use the
dimension below.
Fixing hole
A
9-1/2” (24.13cm)
Fixing hole
A
10-1/2” (26.67cm)
Cut the duct as shown and keep portion A.
Remove
screw
and
save
Remove desired
knockout (one only)
Right
Left
Bottom
To Next Page
