Installation Instructions
EXHAUSTING THE DRYER
- Fire Hazard
WARNING
This dryer MUST be vented to the outdoors.
Use only 4” rigid metal ducting for the home
exhaust vent.
Use only 4” rigid metal or UL-LISTED transition duct
to connect the dryer to the home exhaust duct.
DO NOT use a plastic vent.
DO NOT exhaust into a chimney, kitchen exhaust,
gas vent, wall, ceiling, attic, crawl space, or
concealed space of a building.
DO NOT install a screen in or over the exhaust duct.
DO NOT use duct longer than specified in the
exhaust length table.
Failure to follow these instructions can result in
death or fire.
8

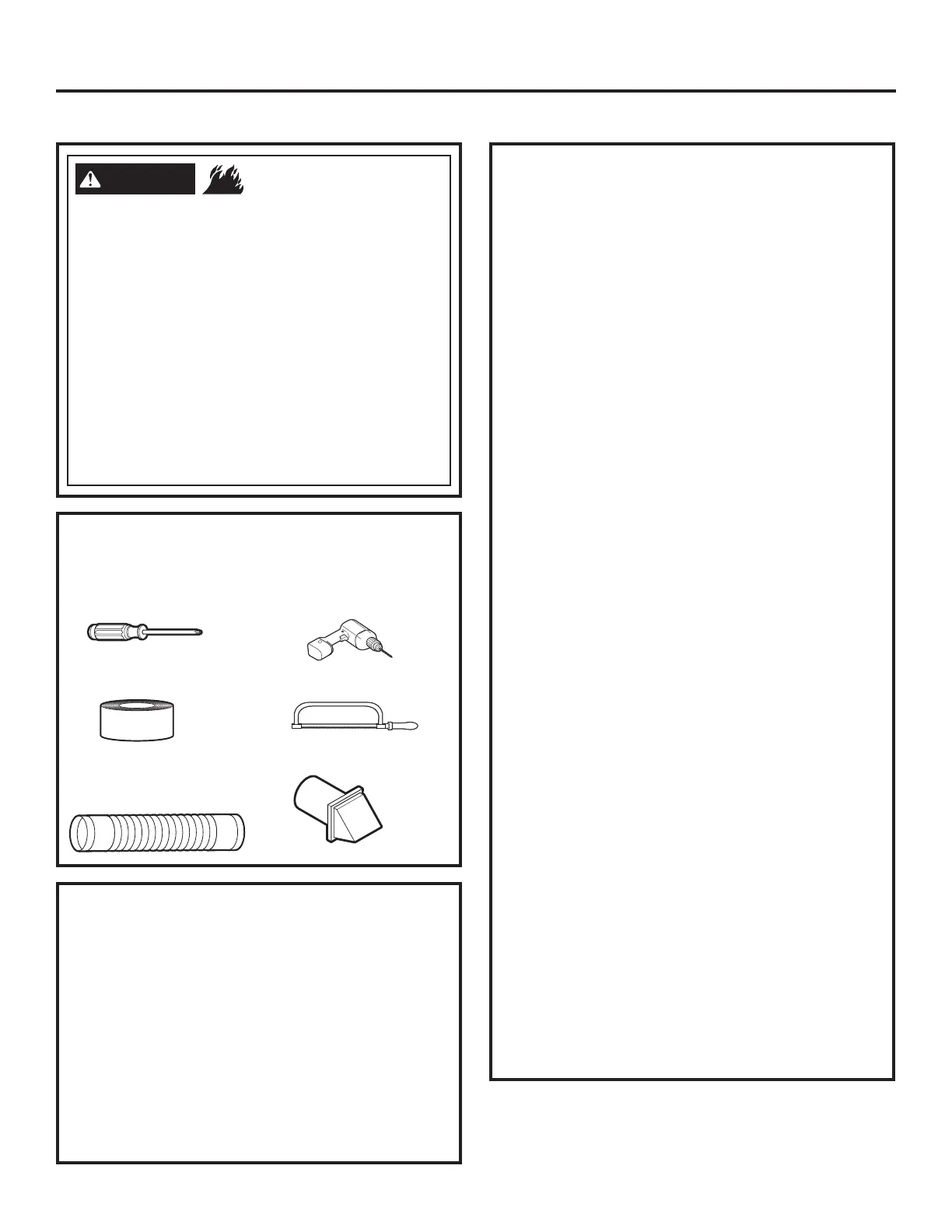

TOOLS AND MATERIALS YOU WILL
NEED TO INSTALL EXHAUST DUCT
CONNECTING THE DRYER TO HOUSE
VENT
RIGID METAL TRANSITION DUCT
•
For best drying performance, a rigid metal transition
duct is recommended.
•
Rigid metal transition ducts reduce the risk of crushing
and kinking.
UL-LISTED FLEXIBLE METAL CLOTHES DRYER
TRANSITION DUCT
•
If rigid metal cannot be used, then UL-LISTED flexible
metal clothes dryer transition duct (GE parts –
PM08X10085, WX08X10085 or WX08X10077) can be
used.
•
Never install transition duct in walls, ceilings, floors or
other enclosed spaces.
•
Total length of transition duct should not exceed
8’ (2.4 m).
• For many applications, installing elbows at both
the dryer and the wall is highly recommended (see
illustrations at right). Elbows allow the dryer to sit
close to the wall without kinking and/or crushing the
transition duct, maximizing drying performance.
•
Avoid resting the duct on sharp objects.
UL-LISTED FLEXIBLE METAL (FOIL-TYPE) TRANSITION
DUCT
•
In special installations, it may be necessary to connect
the dryer to the home exhaust vent using flexible metal
(foil-type) transition duct. UL–LISTED universal flexible
dryer transition duct (GE parts – PM8X73 or WX8X73)
may be used ONLY in installations where rigid metal or
flexible metal transition ducting cannot be used AND
where a 4” diameter can be maintained throughout
the entire length of the transition duct.
•
In Canada and the United States, only transition ducts
that comply with “UL 2158A STANDARD FOR CLOTHES
DRYER TRANSITION DUCT” shall be used.
•
Avoid resting the duct on sharp objects.
•
For best drying performance:
1. Slide one end of the duct over the clothes dryer
outlet pipe.
2. Secure the duct with a clamp.
3. With the dryer in its permanent position, extend
the duct to its full length. Allow 2
”
of duct to
overlap the exhaust pipe. Cut off and remove
excess duct. Keep the duct as straight as
possible for maximum airflow.
4. Secure the duct to the exhaust pipe with the
other clamp.
PARTS AVAILABLE FROM LOCAL
SERVICE ORGANIZATIONS
•
Rigid Metal Duct Components
WX8X63 4 x 1 Duct
WX8X64 4 x 2 Duct
WX8X51 4 Elbow
WX8X59 4 Aluminum Hood
•
Flexible Metal Duct Components
WX8X58 4 Clamps (2)
WX8X59 4 Aluminum Hood
WX08X10077 6 UL-Listed, Flexible Metal (Semi-Rigid)
Duct, 2 Clamps, 2 Close Elbows
WE1M454 Cover rear exhaust opening
Phillips-head
screwdriver
Duct tape or
duct clamp
Rigid or UL-listed
flexible metal 4”
(10.2 cm) duct
Drill with 1/8” drill bit
(for bottom venting)
Hacksaw
Vent hood
