6. Disconnect the coil wire harness from each

coil.

7. Disconnect the ignitor wire harness and the

WZRZLUHVIURPWKHÀDPHGHWHFWRU

8. Remove the two 1/4-in. hex-head screws

that

DWWDFKWKHJDVYDOYHEUDFNHWWRWKHGU\HUÀRRU

9. Pull the bracket toward the front of the dryer

WRGLVHQJDJHWDEVIURPGU\HUÀRRU

NOTE: Upon assembly, ensure the gas valve

bracket is inserted under the two tabs located in

WKHGU\HUÀRRU

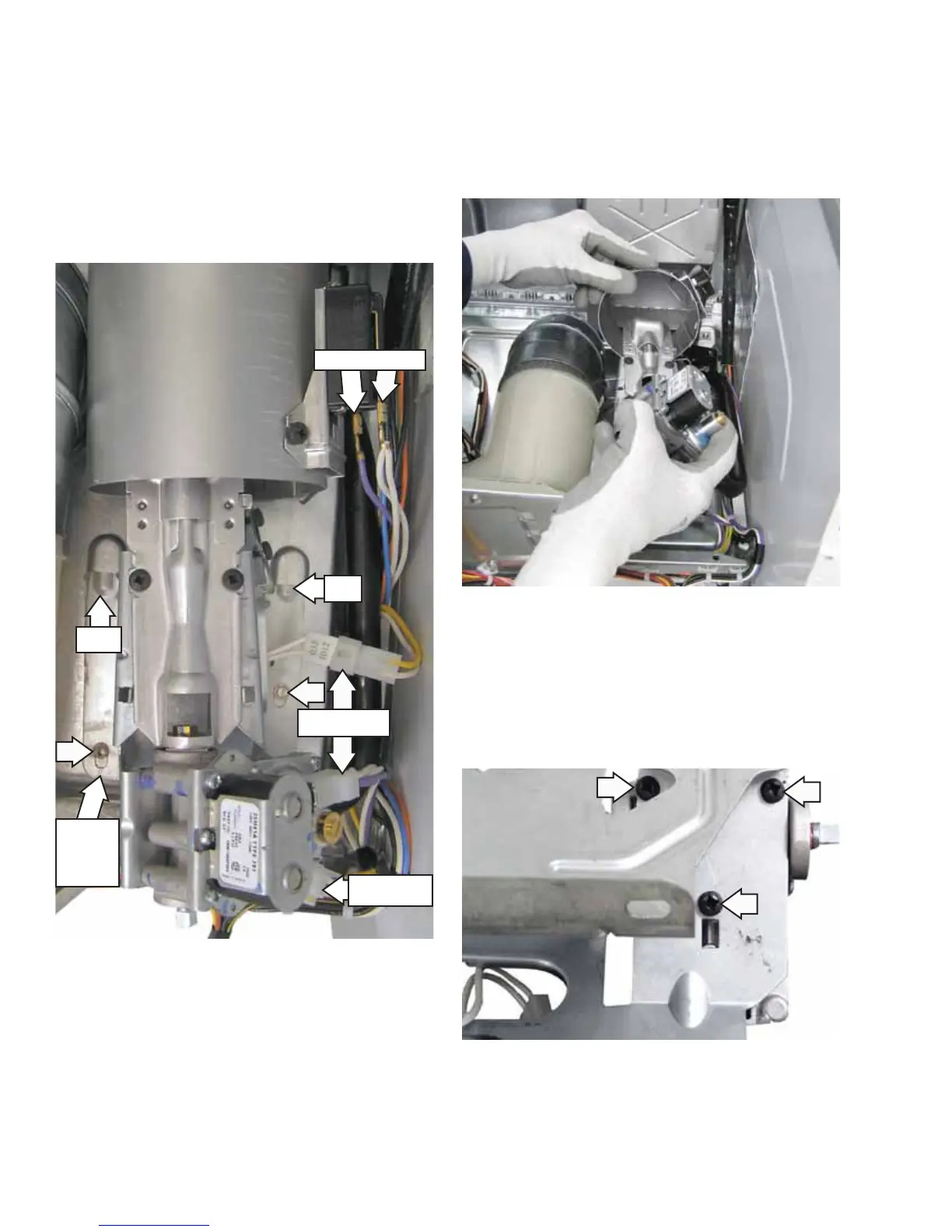

Gas

Valve

Bracket

Disconnect

Tab

Disconnect

Caution: The ignitor is very fragile. To prevent

breaking the ignitor, care must be taken when

removing or installing the gas valve.

10. Lift the front of the combustion chamber, then

maneuver the gas valve assembly from the

dryer.

11. Remove the coils from the gas valve. (See

Gas Valve Coils in this section of this service

guide.)

12. Turn the bracket over. Remove the three

Phillips-head screws that attach the gas valve

to the gas valve bracket.
