– 49 –

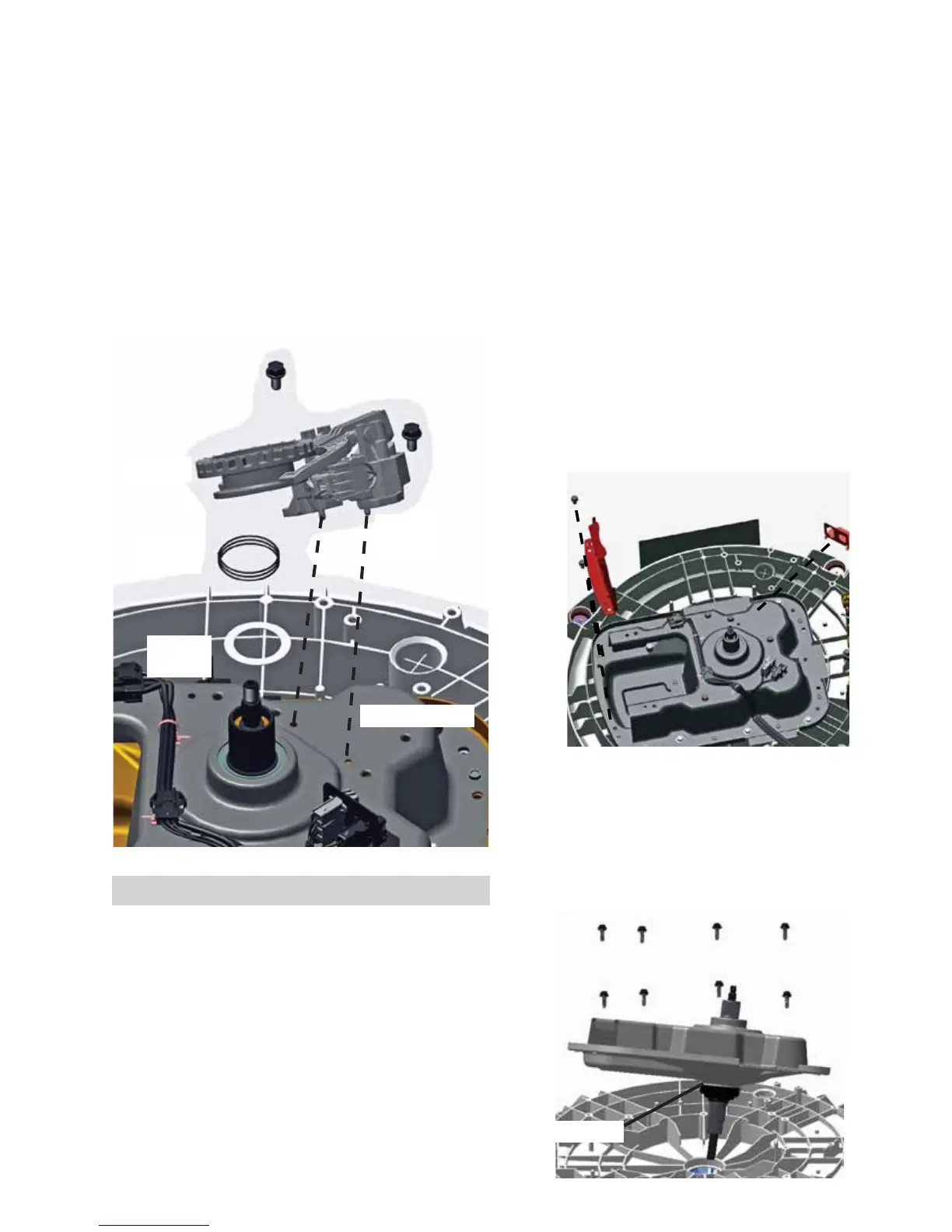

Platform/Transmission Removal
1. Remove the agitator. (See $JLWDWRU5HPRYDO
in the Washer Components section of this
service guide.)
2. Remove the hub nut and Belleville washer.
(See Spin Basket Removal under Spin
Basket in this section of the service guide.)
3. Remove outer tub. (See Outer Tub Removal
in this section of the service guide.)
After all other components have been removed
from the platform assembly:
4. Cut the wire ties that support the main
harness to the platform assembly.
5. Remove the 3/8-in. hex-head bolts securing
the motor shield and the harness brackets to
the platform.
6. Remove the eight 3/8-in. hex-head bolts
securing the platform to the bottom of the tub.
7. Pry the platform assembly away from the tub.
The tub seal is pressed onto the shaft. Prying
against the tub bottom to remove the platform
assembly may be necessary.
Mode Shifter Reinstallation
1. ,QVWDOOWKHÀDWZDVKHURQWRWKHORZHU
transmission shaft.
2. Install the clutch spring.
3. Slide the clutch into the clutch level of the
mode shifter and slide the clutch onto the
shaft. There are guide pins on the bottom of
the mode shifter that go into locator holes on
the platform.
4. Install the two 3/8-in. hex-head bolts and
torque to 60 inch pounds.
Locator Holes
Flat
Washer
Clutch
Spring
Clutch
Guide
Pins
The platform assembly not only houses the
transmission, but is used to mount the drive motor
and mode shifter. The transmission has planetary
gears inside to assist with the agitation and spin
cycles of the washer. It is one complete part
with the exception of the two harness mounting
brackets (some models have one harness
mounting bracket) and a motor splash guard.
Tub Seal
Platform/Transmission Assembly
