– 44 –

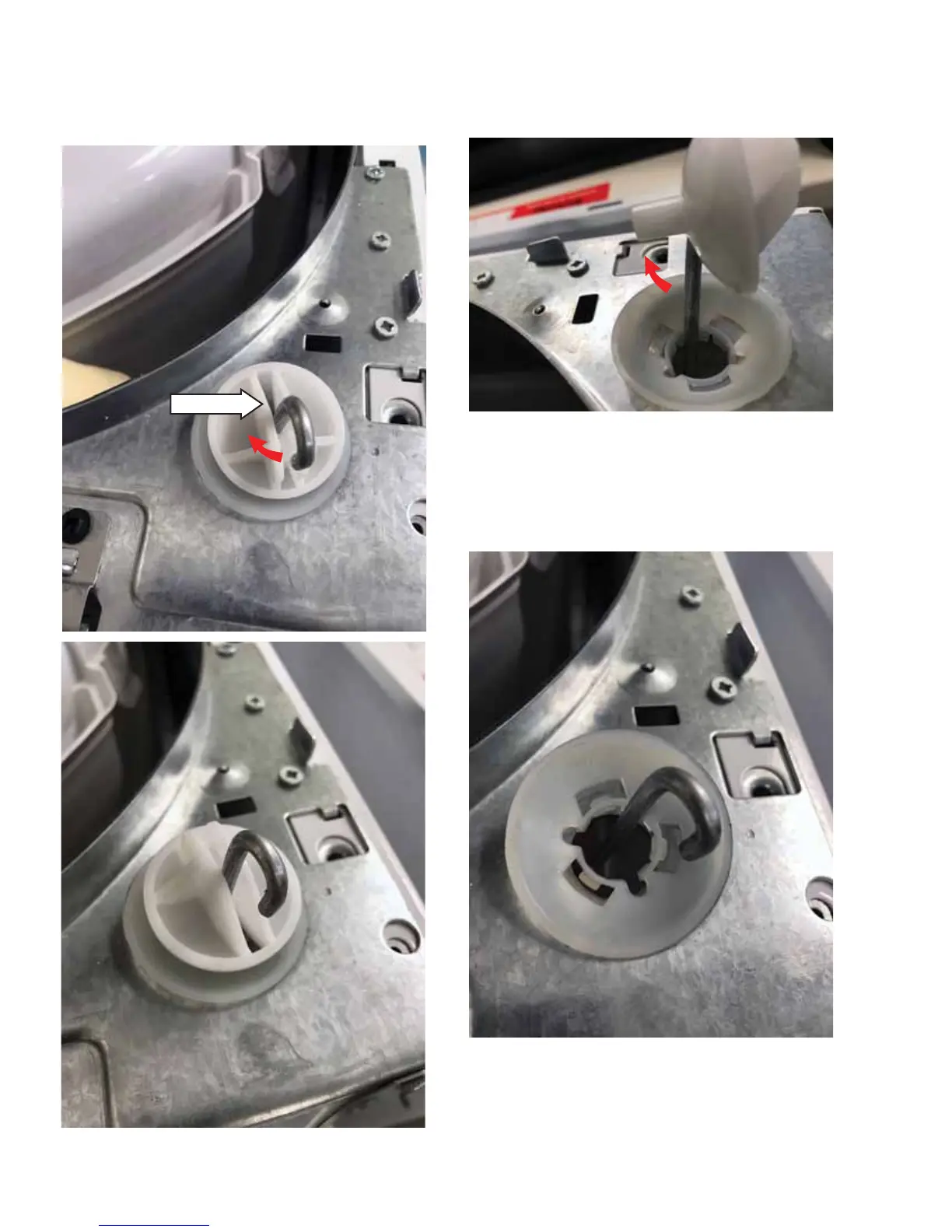

3. Lift the rod through the support cup, tap the
rod support ball down, and rotate the rod to
align with the open slot in the cup. Lower the
suspension rod through the slot.
Open Slot
4. Lift up on the rod while at the same time
sliding the rod support ball down on the shaft.
Unsnap the shaft of the rod support ball from
the metal rod and remove the ball.
5. Slide the rod down through the support cup
and remove the rod and spring assembly from
the washer tub.
NOTE: Ensure to note the rod assembly location,
black to the front.
To Next Page
