ATC Thermistor Removal
NOTE: The ATC thermistor harness comes
with the water valve harness and are replaced
together.

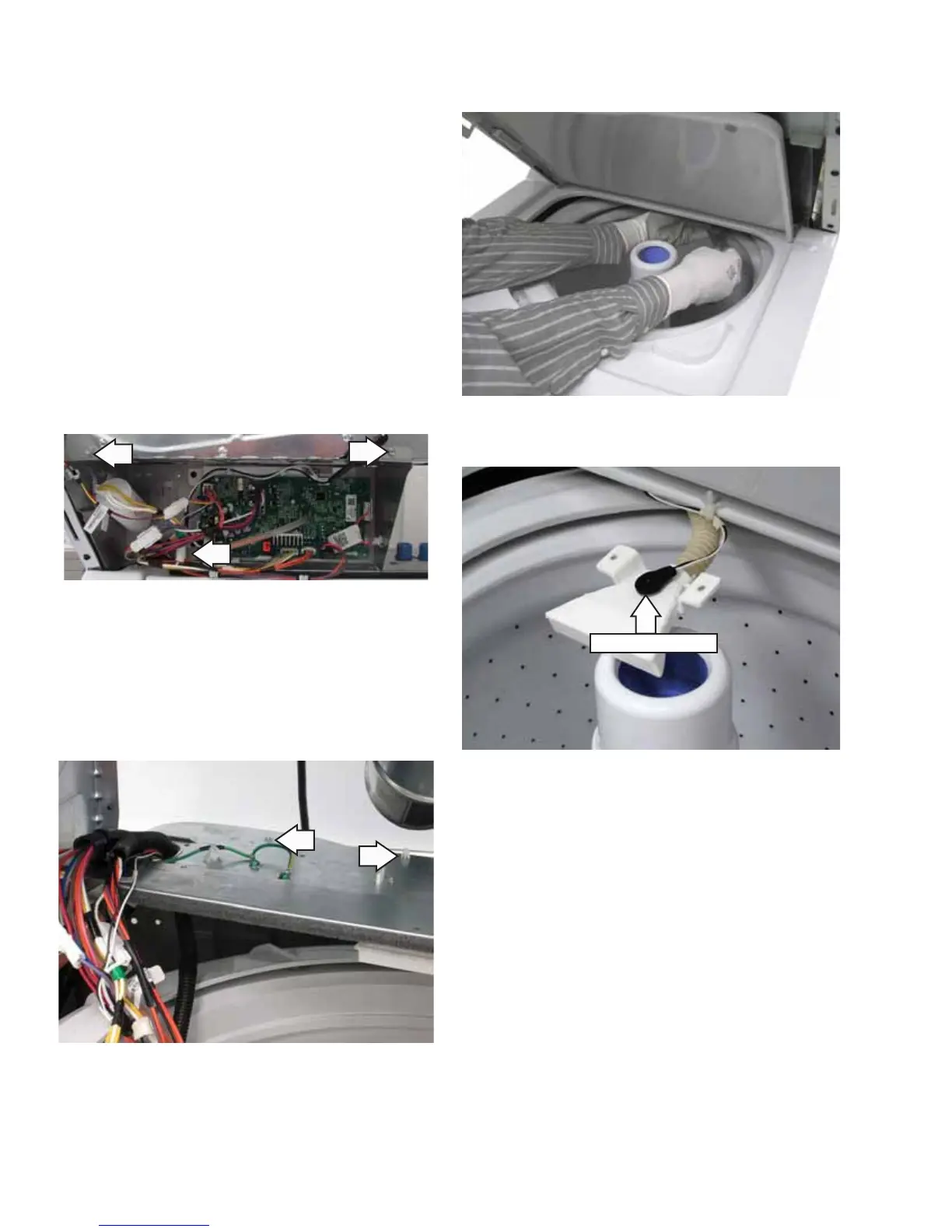

1. Remove electrical power from the machine.
2. Remove the service panel.
3. Disconnect the water valve connecter J514
and thermistor connecter J701 from the main
board.
4. Remove main board enclosure by removing
three 1/4-inch hex-head screws securing the
enclosure to the washer.
5. Pull the enclosure and lay it forward. This
will give access to the wire ties securing
the thermistor harness to the water valve
mounting bracket.
NOTE7KHZDWHULQOHW¿OOIXQQHOLVDWWDFKHGWRWKH
water valve mounting bracket with two 1/4-inch
hex-head screws.
6. With the Board housing pulled forward,
squeeze and push the two wire ties securing
the thermistor harness to the valve mounting
bracket.
7. From inside the tub, remove the two 1/4-in.
hex-head screws that attach the funnel to the
washer.
8. Pull and unsnap the thermistor from the top of
WKH¿OOIXQQHO
ATC Thermistor
(Continued Next Page)
To Next Page
