OPTION D.
DRAIN LINE ADAPTER INSTALLATION (FIG. 3D)
DO NOT install the drain line downstream of a disposal
or in a horizontal pipe. Install the provided drain line
adapter under the sink as shown. The baffle-tee or
y-connector shown must be in place (purchase and install
if necessary) to prevent a clog in the Reverse Osmosis
drain line. Route the drain line from the air gap to the
drain line adapter ensuring that there are no dips, loops
or low spots in the line, which could result in a clogged
drain line. The drain line adapter should be aligned
vertically so that the hose connection points in a direction
45°off vertical. (See Fig. 3E.) This installation MAY result
in a slight drain noise in the sink drain when the Reverse
Osmosis system is operating. Rotate the Drain Line
adapter tee assembly slowly until noise is minimized.
Generally, 180° opposite the existing horizontal
pipe/baffle-tee is a good orientation.

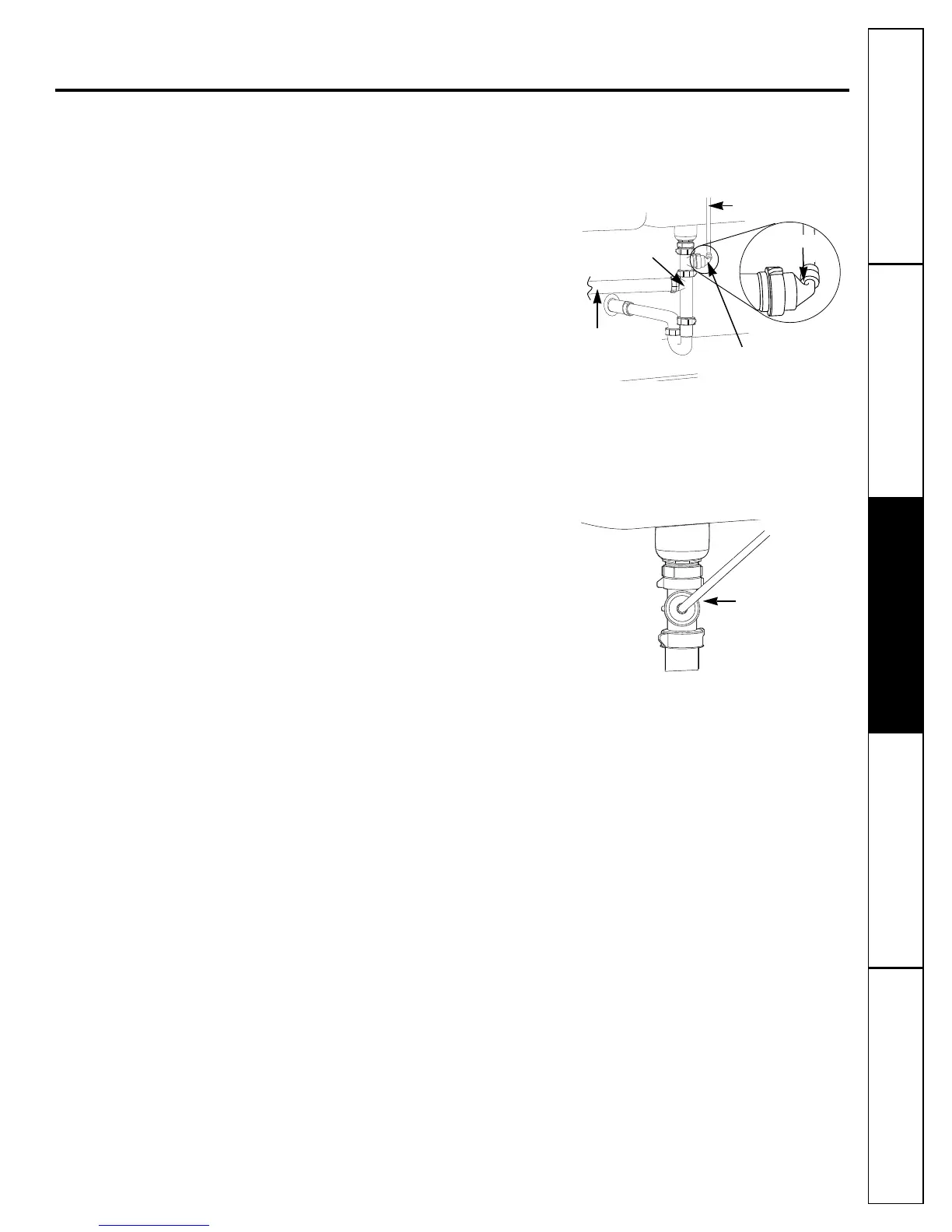

Fig. 3D.
Fig. 3E.
Mandatory baffle-tee
or y-connector
From second
sink or disposer
45°
From faucet air gap
Drain line
adapter
Drain line connection should
be 180° opposite existing
horizontal pipe/baffle-tee
as shown in diagram
Drain line adapter
Proper drain line adapter orientation.
