14
Installation Instructions
INSTALATION INSTRUCTIONS
UNDER THE SINK LOCATION
The Reverse Osmosis Filter Assembly and
storage tank may be installed in a kitchen or
bathroom sink cabinet.
REMOTE INTERIOR LOCATION
The Reverse Osmosis Filter Assembly and
storage tank may also be installed in a
remote interior location away from the
Reverse Osmosis faucet. A nearby water
source and drain point are required.
PREPARE FOR INSTALLATION
1. Before starting, close the hot and cold
water shutoff valves.
2. Temporarily place tank and filter assembly
into planned location. Check position of
items and space required for installation.
Ensure tubes may be routed without
kinking.
3. Remove tank and filter from planned
location and set aside.
PLAN THE INSTALLATION

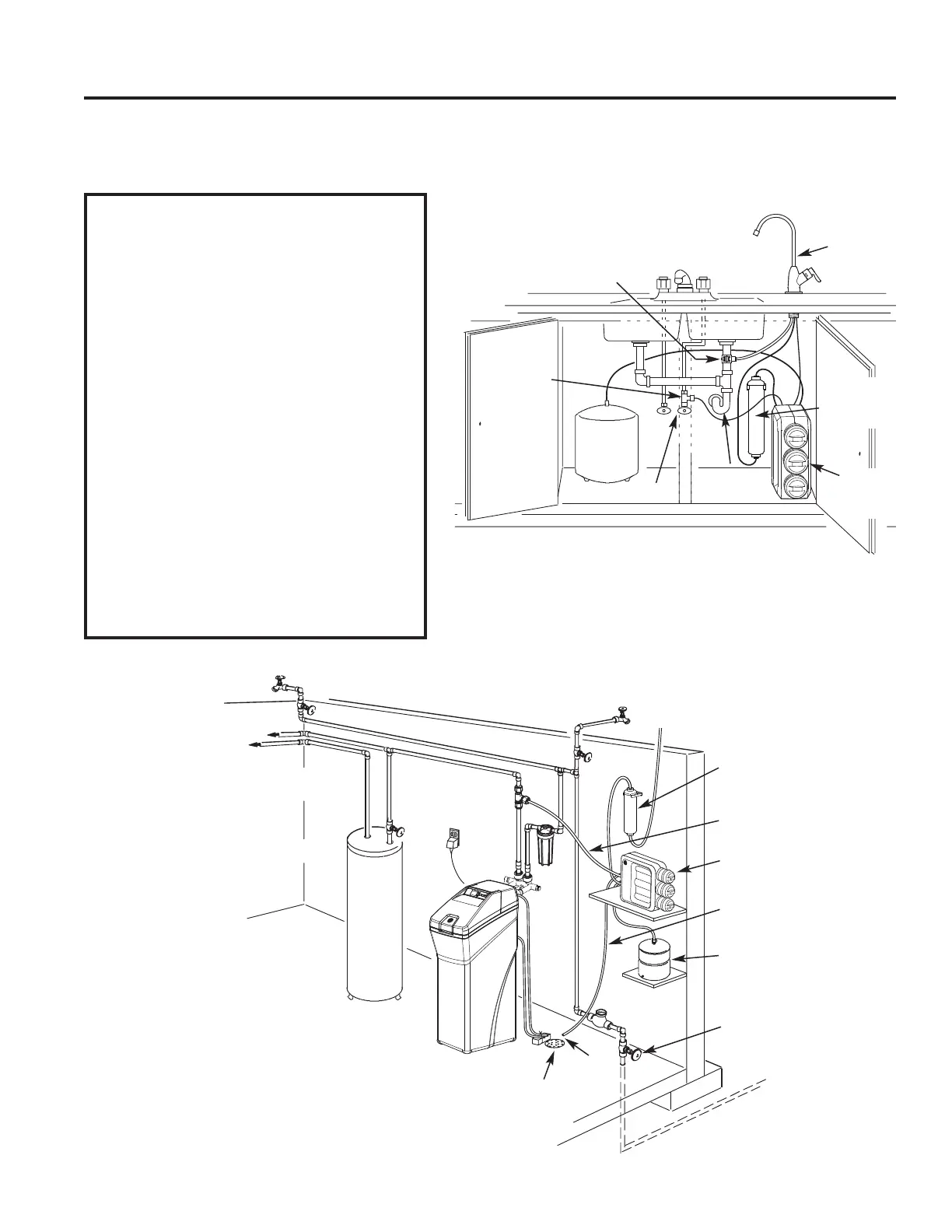

The Reverse Osmosis System can be installed under a sink or in a remote location. Typical remote sites are a
laundry room or utility room. Review the location options below and determine where to install the system.
Cold Water
Supply
Storage
Tank
Sink Drain
P-Trap
Shutoff Valve
Reverse
Osmosis
Assembly
HOT COLD
Typical Under Sink Installation
Installation items included in parts bag.
Reverse
Osmosis
Faucet
D
rain Adapter
for Reverse
Osmosis
Reject Water
Outside Faucet
(Hard Water)
Soft, Cold Water
Soft, Hot Water
Outside Faucet
(Hard Water)
Shutoff
Valve
H
a
rd
Wa
te
r L
in
e
Hard
Water
to
House
Water
Meter
To Faucet
Water
Heater
Water
Softener
Floor
Drain
1-1/2”
Air Gap
Reverse Osmosis
Drain
Remineralizer/
Antimicrobial Filter
Main
Shutoff
Valve
Storage
Tank
Reverse Osmosis
System
Typical Remote Installation
Additional parts required.
Soft water to
R.O. System
Remineral -
ization/Anti -
microbial
Filter
