24
Installation Instructions
REMOVE THE REFRIGERATOR DOORS (cont)
Disconnect the water line from the back of the unit by
pressing down on the dark grey collar while pulling up
on the water line.
Pull water line through case conduit from the top to
free the line for door removal. The water line is more
than 4’ long and may need to be taped to Door for
accessibility when reinstalling.
Using a 3/8” socket ratchet/driver, remove the screws
securing the top hinge to the cabinet,
then lift the hinge straight up to free the hinge pin
from the location in the top of the door.
CAUTION
Lifting Hazard.
Single person lift could cause injury. Use assistance
when handling, moving or lifting the refrigerator doors.
Note: when removing door, to prevent damage to door
and electronics, carefully place the door in a proper
location.
Note: The lower door hinge pin and hinge are keyed and
must be matched correctly for the door to self close
properly. Please follow the directions carefully.

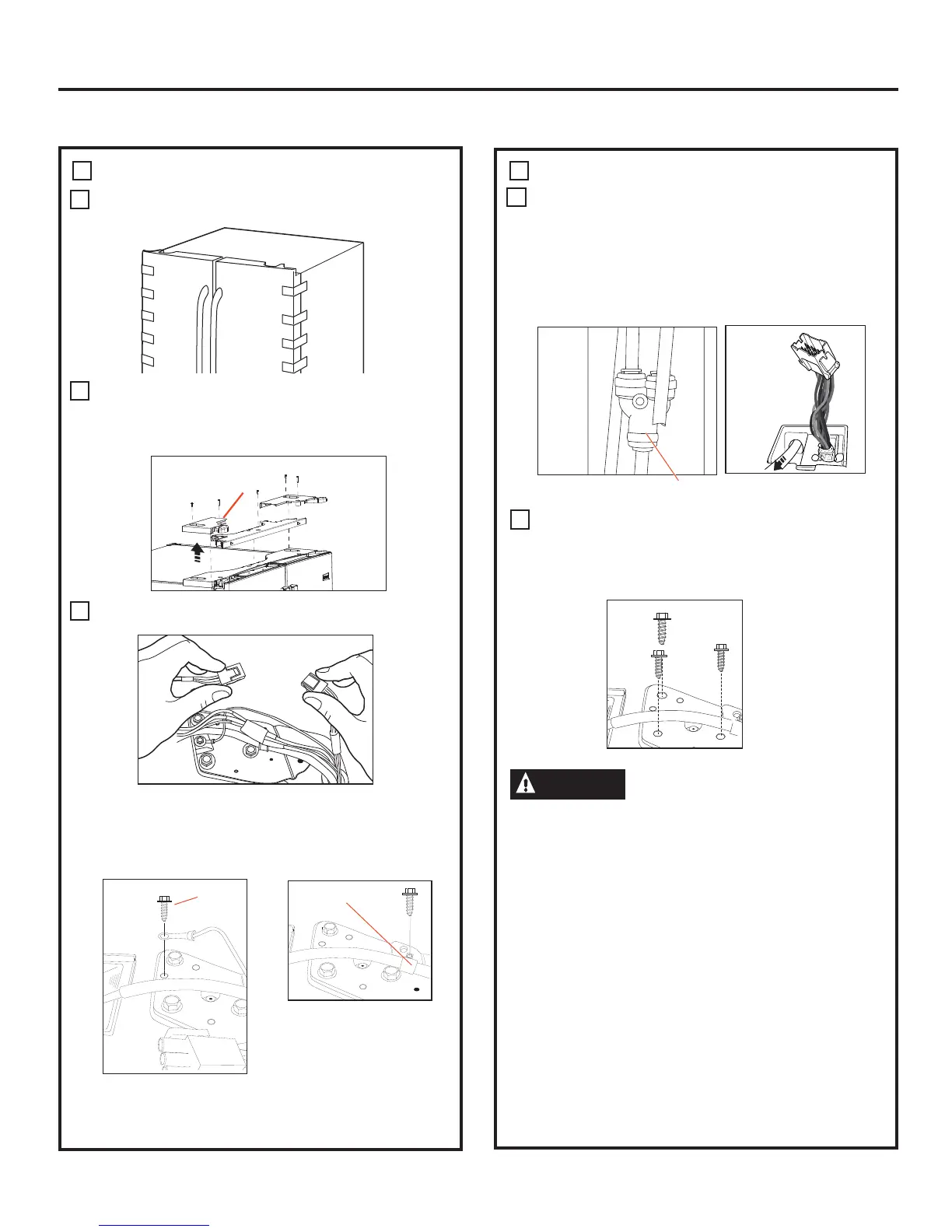

REMOVE THE REFRIGERATOR DOORS
A
Securely tape the door shut with masking tape or have
a second person support the door.
B
Start with left-hand door first: Remove the hinge cover
on top of the left refrigerator door by removing all hex
screws and pulling it up. Do the same for the
right-hand door and the middle cover.
C
Disconnect both electrical connectors at the top cover.
Remove the 1/4” hex head screw to disconnect the
ground wire from the hinge.
Remove the 1/4” hex head screw to remove the strain
relief from the water line.
INSTALLING THE REFRIGERATOR (cont.)
3 3
E
D
Ground
screw
Strain
Relief
Hinge
Cover
Y or Straight
Connector
To Next Page
