14 HANDHELD DISPLAY – INSTRUCTION MANUAL
HHD GRAPHICAL DISPLAY PAGES HANDHELD DISPLAY

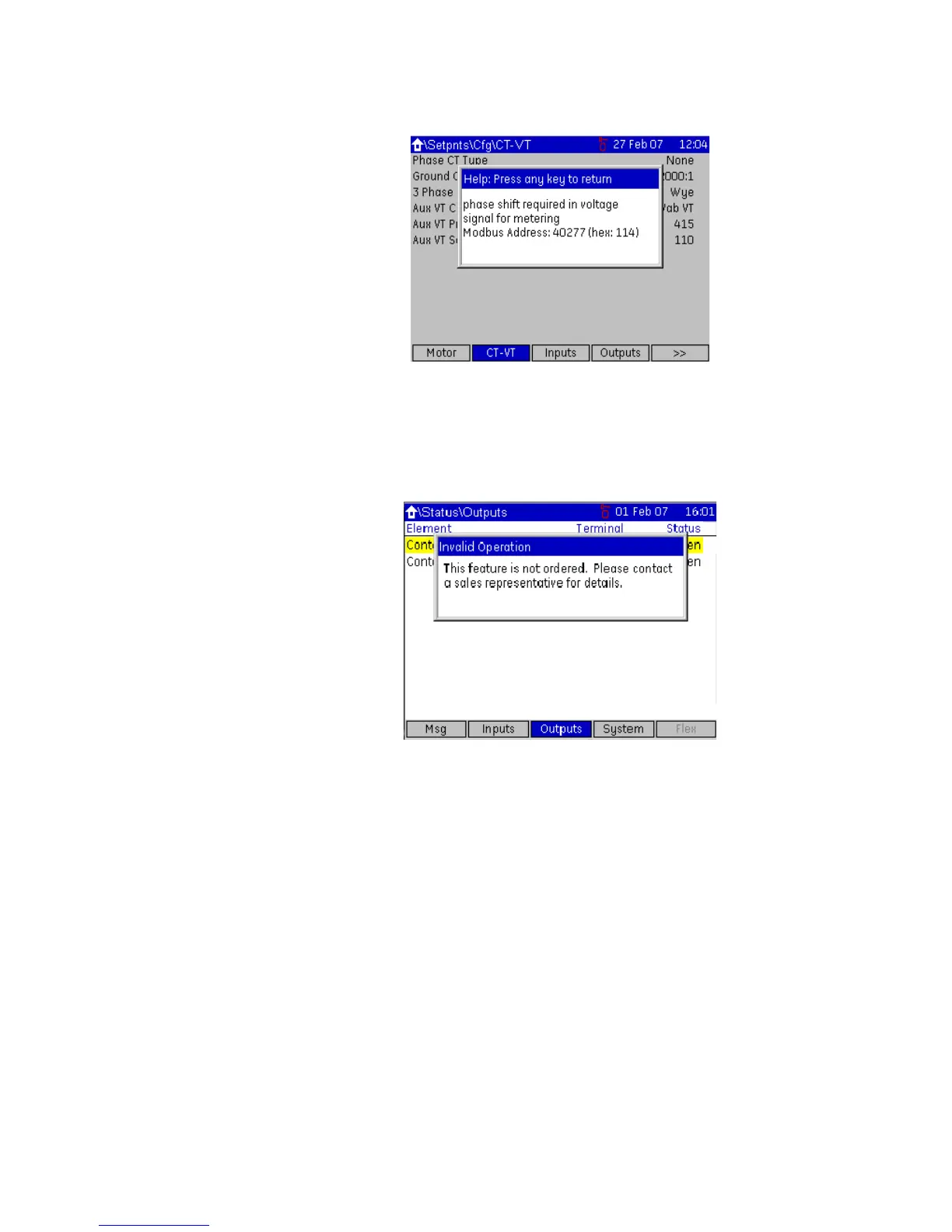

Figure 19: Typical help popup window
Invalid operation popups explain the problem and provide direction on how to rectify it.
This may also include invalid features or uninstalled options (for example, accessing the
undervoltage restart page when undervoltage restart option is not ordered). Where a
keypress is illegal because a security passcode is required, the popup is a passcode entry
dialog box.
Figure 20: Typical invalid operation popup window
Help and illegal action popup windows remain open until they are acknowledged by
clicking any soft or hard key, or until a pre-determined period of inactivity has passed.
