Single Stage Agitator

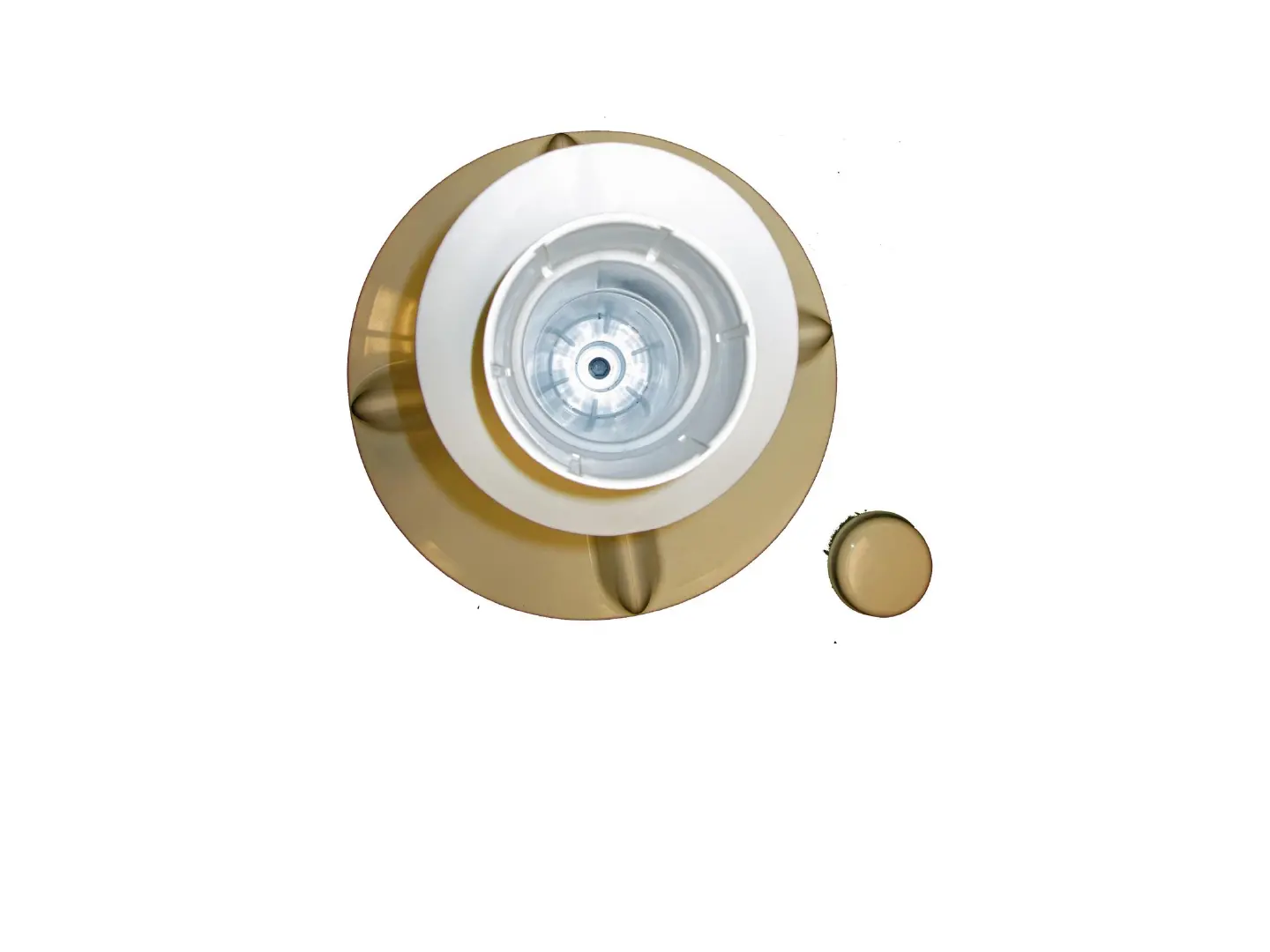

Remove the single action agitator by taking the agitator cap off to access the 7/16
th
hex bolt.
The bolt is located inside the agitator at the bottom. A long socket extension (at least 17 in.
long) will be needed to remove it.
Note: Agitator bolts should be replaced any time it is removed for service and torqued to 100
in-lbs.
