Drive Motor

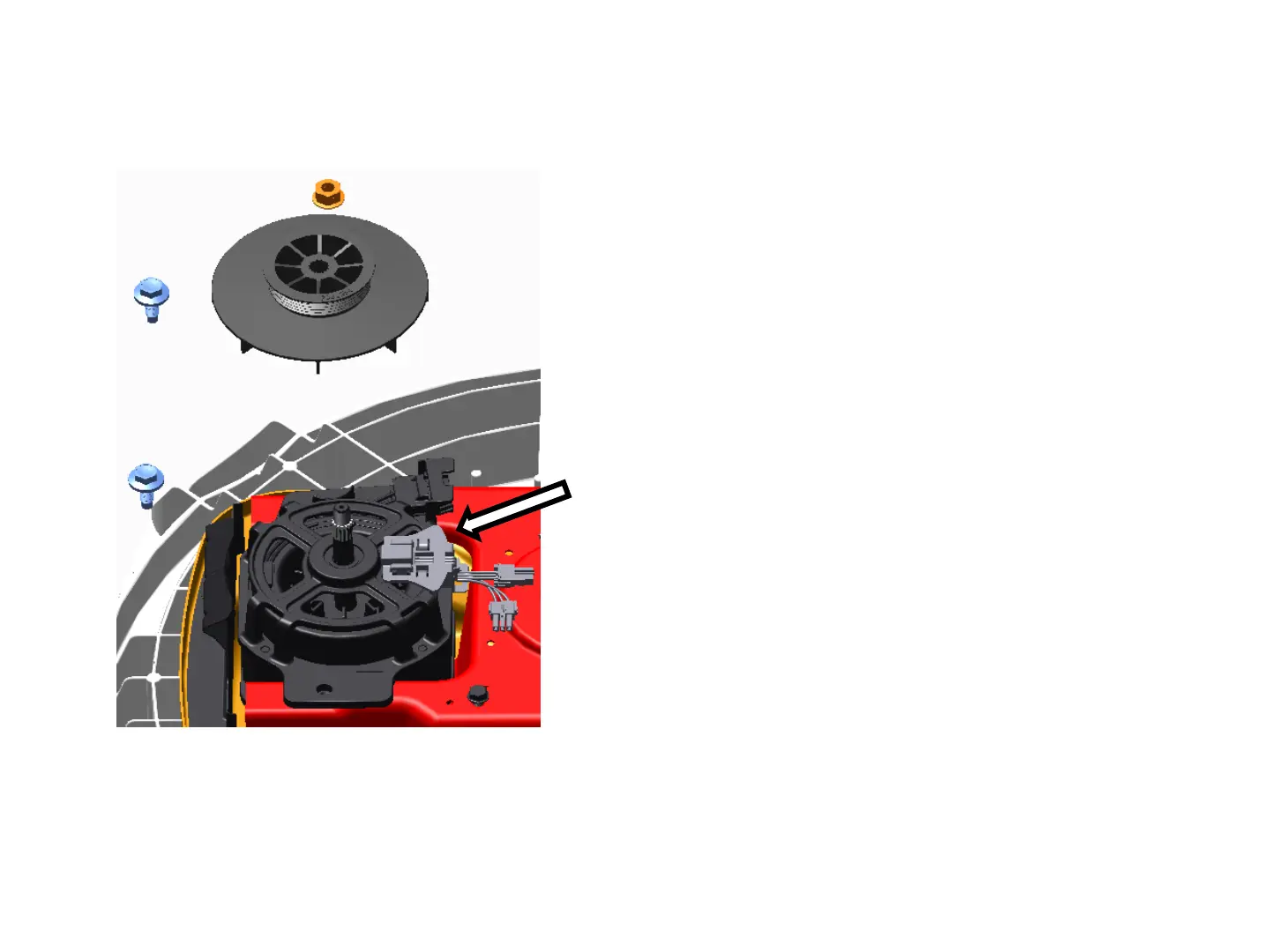

Unclip the hall/speed sensor
from the motor.
Remove two 1/2 in. bolt
mounting the motor to the tub
letting the motor come loose
from the platform.
When reinstalling the motor
mounting bolts torque to 170
in-lbs.
Hall/Speed
Sensor
Note: If the hall/speed sensor is wire tied to the motor when
replacing the motor. Order both the motor and hall/speed sensor.
