Mode Shifter Assembly
Disconnect the mode shifter motor
harness connector.
Remove two 3/8
th
hex head mounting
bolts. This will allow the complete mode
shifter assembly to be removed with the
clutch.
The clutch spring and spring washer will
come off as well. When reinstalling be
sure to install the spring washer before
the clutch spring.

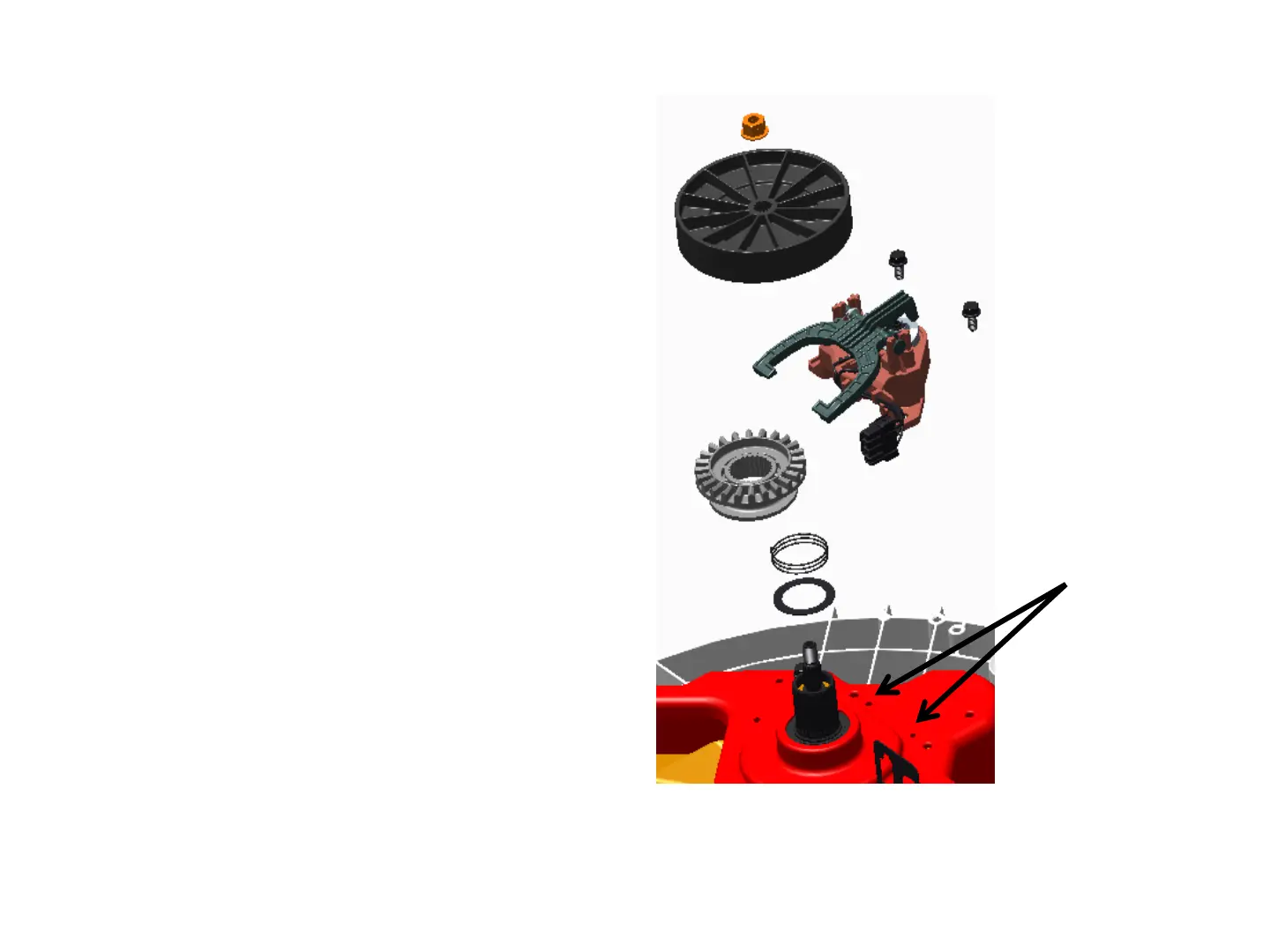

Guide Pin
Location Holes
To Next Page
