Installation Instructions

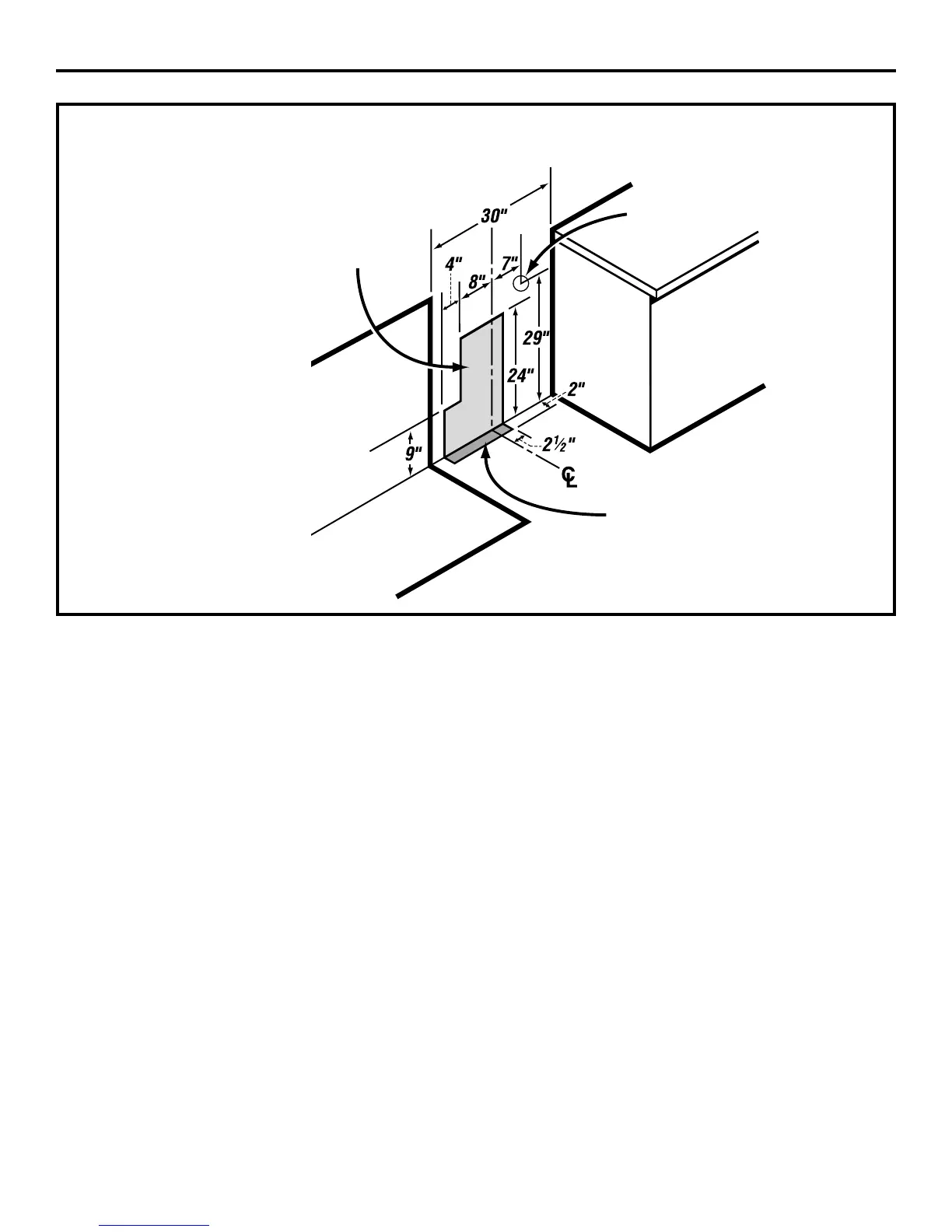

GAS PIPE AND ELECTRICAL OUTLET LOCATIONS
This area allows for flush range
installation with through-the-floor
connection of pipe stub/shut-off
valve.
Shortest connection from
hard pipe stub location to
range hookup.
This area allows for flush
range installation with
through-the-wall connection
of pipe stub/shut-off valve and
rear wall 120V outlet.
32
