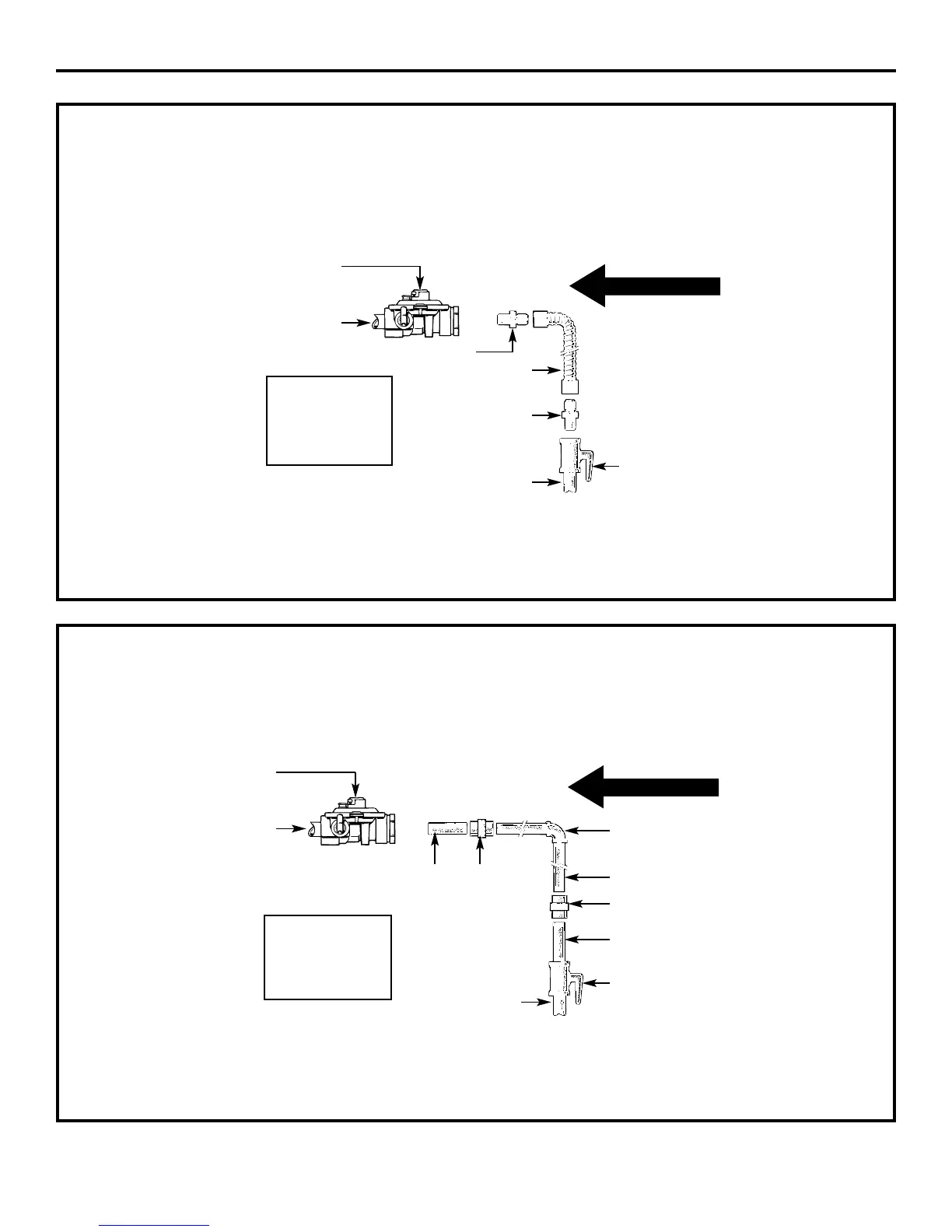

FLEXIBLE CONNECTOR HOOKUP
Gas Flow into Range
33
RIGID PIPE HOOKUP
Installation Instructions
Adapter
1/2″ or 3/4″ Gas pipe
Adapter
Flex connector
(6 ft. max.)
Manifold pipe
Pressure regulator
Gas shut-off valve
UnionNipple
Manifold pipe
Pressure regulator
1/2″ or 3/4″ Gas pipe
Gas shut-off valve
Nipple
Union
Black iron pipe
90° Elbow
Installer: Inform
the consumer of
the location of
the gas shut-off
valve.
Installer: Inform
the consumer of
the location of
the gas shut-off
valve.
Gas Flow into Range
