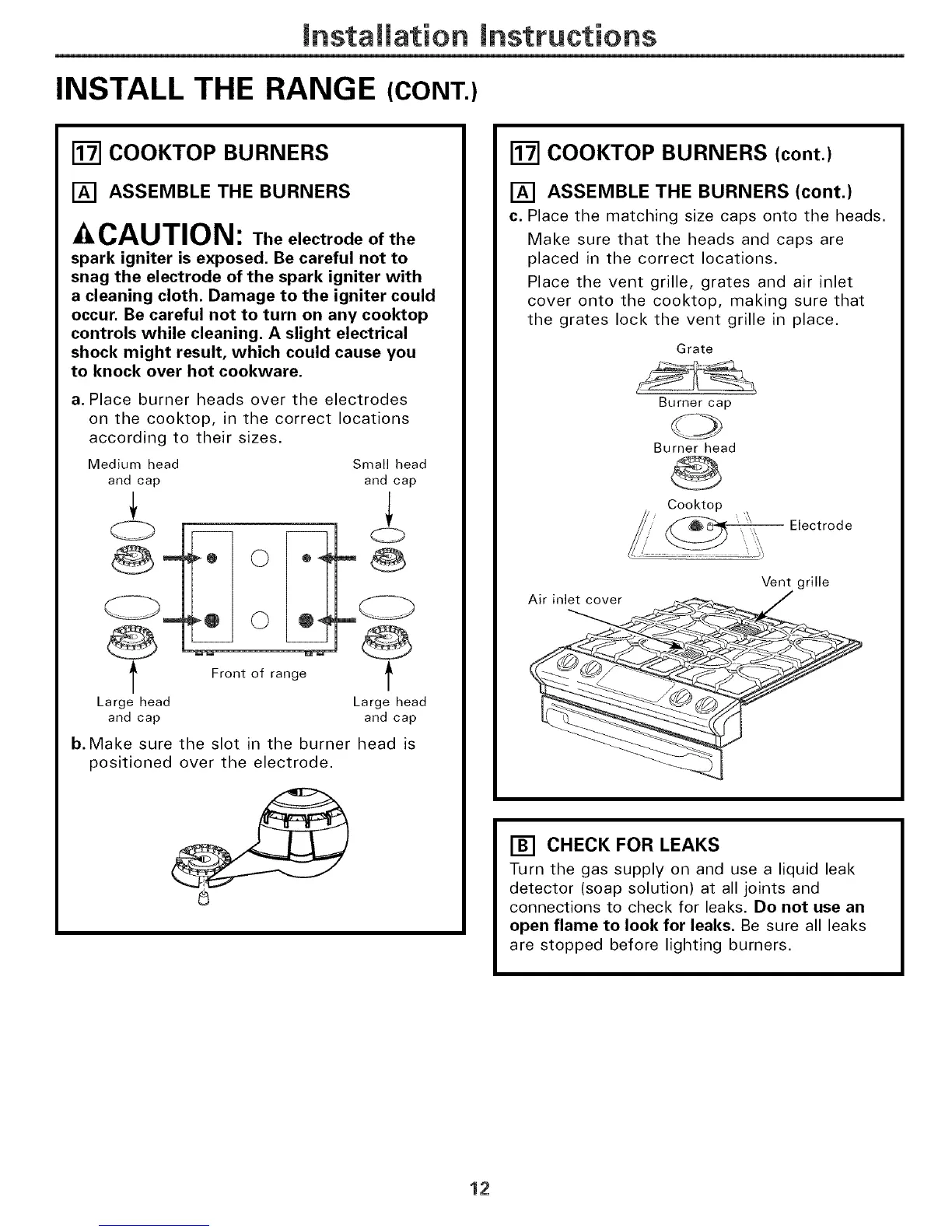

Installation Instructions
INSTALL THE RANGE (CONT.)
r_] COOKTOP BURNERS
[] ASSEMBLE THE BURNERS
CAUTION: The electrode of the
spark igniter is exposed. Be careful not to
snag the electrode of the spark igniter with
a cleaning cloth. Damage to the igniter could
occur. Be careful not to turn on any cooktop
controls while cleaning. A slight electrical
shock might result, which could cause you
to knock over hot cookware.
a. Place burner heads over the electrodes
on the cooktop, in the correct locations
according to their sizes.
Medium head Small head
and cap and cap
Front of range t
/
Large head Large head
and cap and cap
b. Make sure the slot in the burner head is
positioned over the electrode.
r_l COOKTOP BURNERS (cont.)
[] ASSEMBLE THE BURNERS (cont.)
c. Place the matching size caps onto the heads.
Make sure that the heads and caps are
placed in the correct locations.
Place the vent grille, grates and air inlet
cover onto the cooktop, making sure that
the grates lock the vent grille in place.
Grate
Burner cap
Air inlet cover
Burner head
Cooktop
Electrode
Vent grille
[] CHECK FOR LEAKS
Turn the gas supply on and use a liquid leak
detector (soap solution) at all joints and
connections to check for leaks. Do not use an
open flame to look for leaks. Be sure all leaks
are stopped before lighting burners.
12
To Next Page
