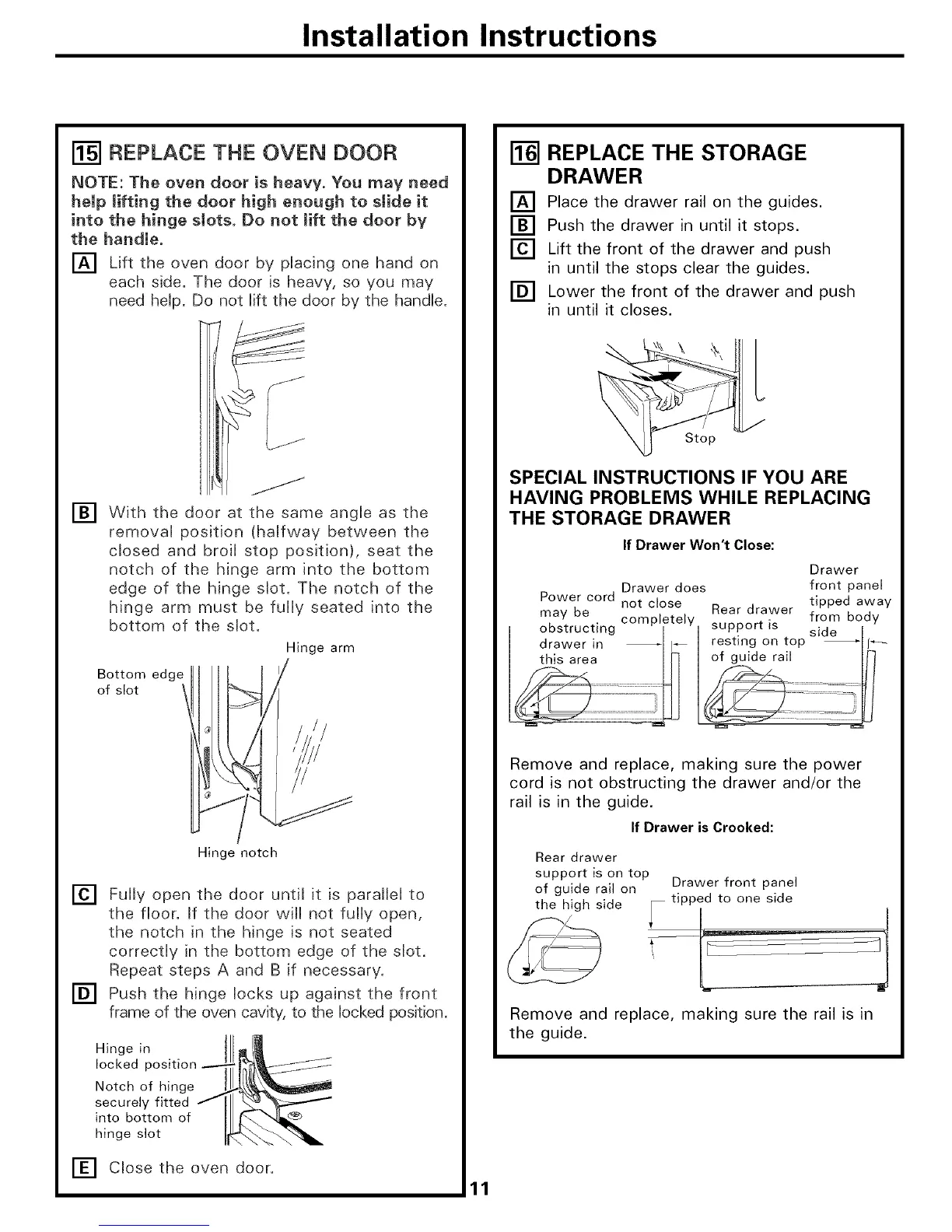

Installation Instructions
r_] REPLACE THE OVEN DOOR
NOTE: The oven door is heavv. You mav need
help lifting the door high enough to slide it
into the hinge stots. Do not lift the door by
the handme.
[] Lift the oven door by placing one hand on
each side. The door is heavy, so you may
need help. Do not lift the door by the handle.
[] With the door at the same angle as the
removal position (halfway between the
closed and broil stop position), seat the
notch of the hinge arm into the bottom
edge of the hinge slot. The notch of the
hinge arm must be fully seated into the
bottom of the slot.
Hinge arm
Bottom edge
of slot
Hinge notch
[] Fully open the door until it is parallel to
the floor. If the door will not fully open,
the notch in the hinge is not seated
correctly in the bottom edge of the slot.
Repeat steps A and B if necessary.
[] Push the hinge locks up against the front
frame of the oven cavity, to the locked position.
Hoi:g:d hpo sit ion __ __[I _-
N:t c he lyf fl:t'te_e _" _ ,_#_C" L__ .......
!nto bottom of
ninge slot [_-_'_'_h_
[] Close the oven door.
r_ REPLACE THE STORAGE
DRAWER
[] Place the drawer rail on the guides.
[] Push the drawer in until it stops.
[] Lift the front of the drawer and push
in until the stops clear the guides.
[] Lower the front of the drawer and push
in until it closes.
SPECIAL INSTRUCTIONS IF YOU ARE
HAVING PROBLEMS WHILE REPLACING
THE STORAGE DRAWER
If Drawer Won't Close:
Drawer
Drawer does front panel
Power cord not close tipped away
may be Rear drawer . . .
• completely su ortis trom eoay
obstructing PP side
drawer in _ I_ resting on top _ _
I this area 117 I of guide rail Ill
222_2:--2222:2:::!!
Remove and replace, making sure the power
cord is not obstructing the drawer and/or the
rail is in the guide.
If Drawer is Crooked:
Rear drawer
support is on top
of guide rail on Drawer front panel
the high side _ tipped to one side
Remove and replace, making sure the rail is in
the guide.
11
