NOTE: This Oven is not approved to be
installed under a Solid Disk, Induction or
Downdraft Modular Cooktop.

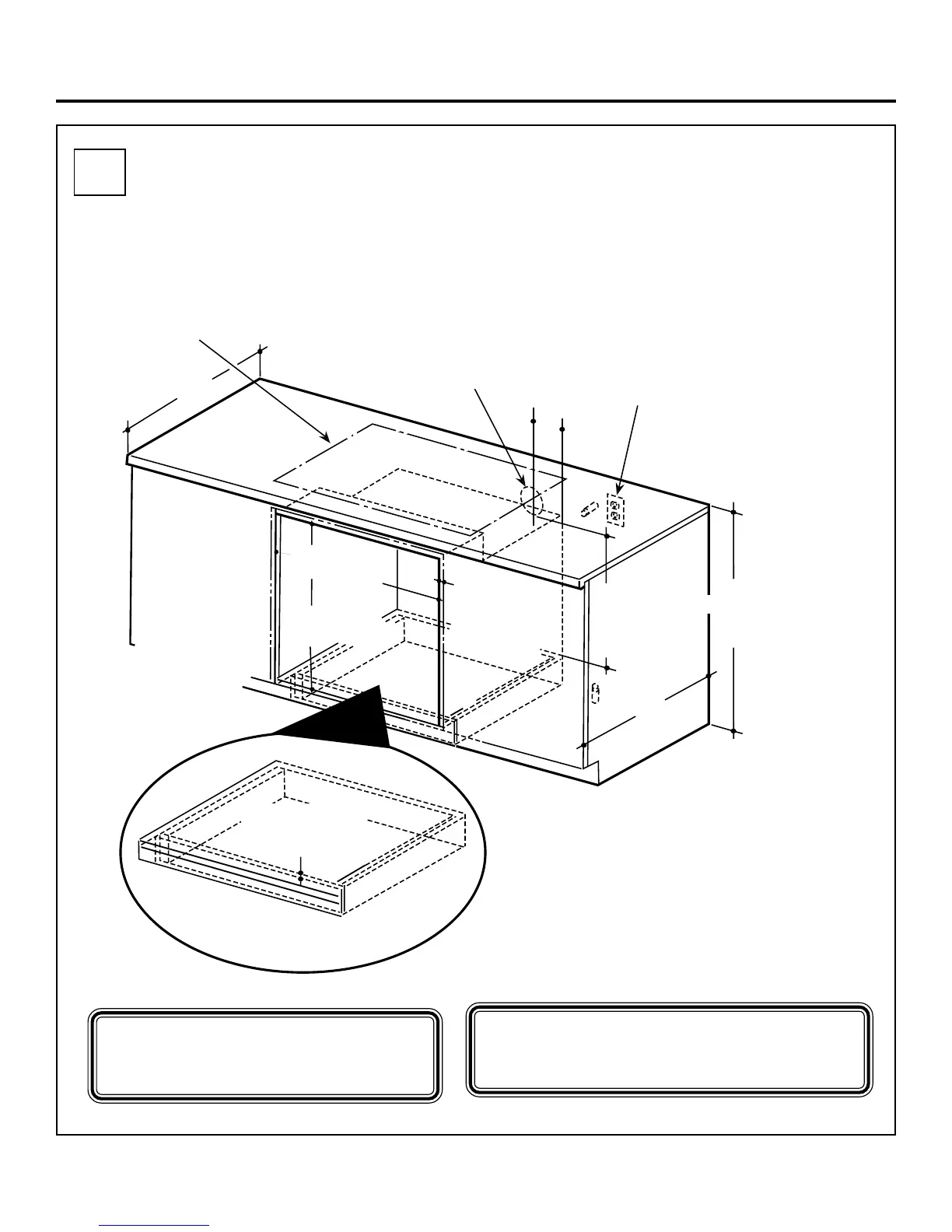

Cutouts for Single Oven Under Counter
A3
Installation Instructions
7
25"
Gas or electric cooktops
may be installed over this
oven. See cooktop installation
instructions for cutout size.
See label on top of oven for
approved cooktop models.
Gas or electric connections
for gas cooktop must be
located in an adjacent
accessible location
to the right
5"
240V / 208V
Junction Box
Location
32"
Typical
Countertop
Height
24"
Allow 1"
unit overlap
all edges
25" MIN.
25 1/4" MAX.
27 5/8" MIN.
28 1/8" MAX.
3/4" Support
Platform
Required
MUST SUPPORT 150 LBS.
22" MIN.
Above
Support
Platform
NOTE: Stainless Steel models are
not approved for under the counter
installation.
To Next Page
