NOTE: If the cabinet does not
have a front frame and the sides
are less than 3/4” thick, shim
both sides equally to establish
the cutout width.

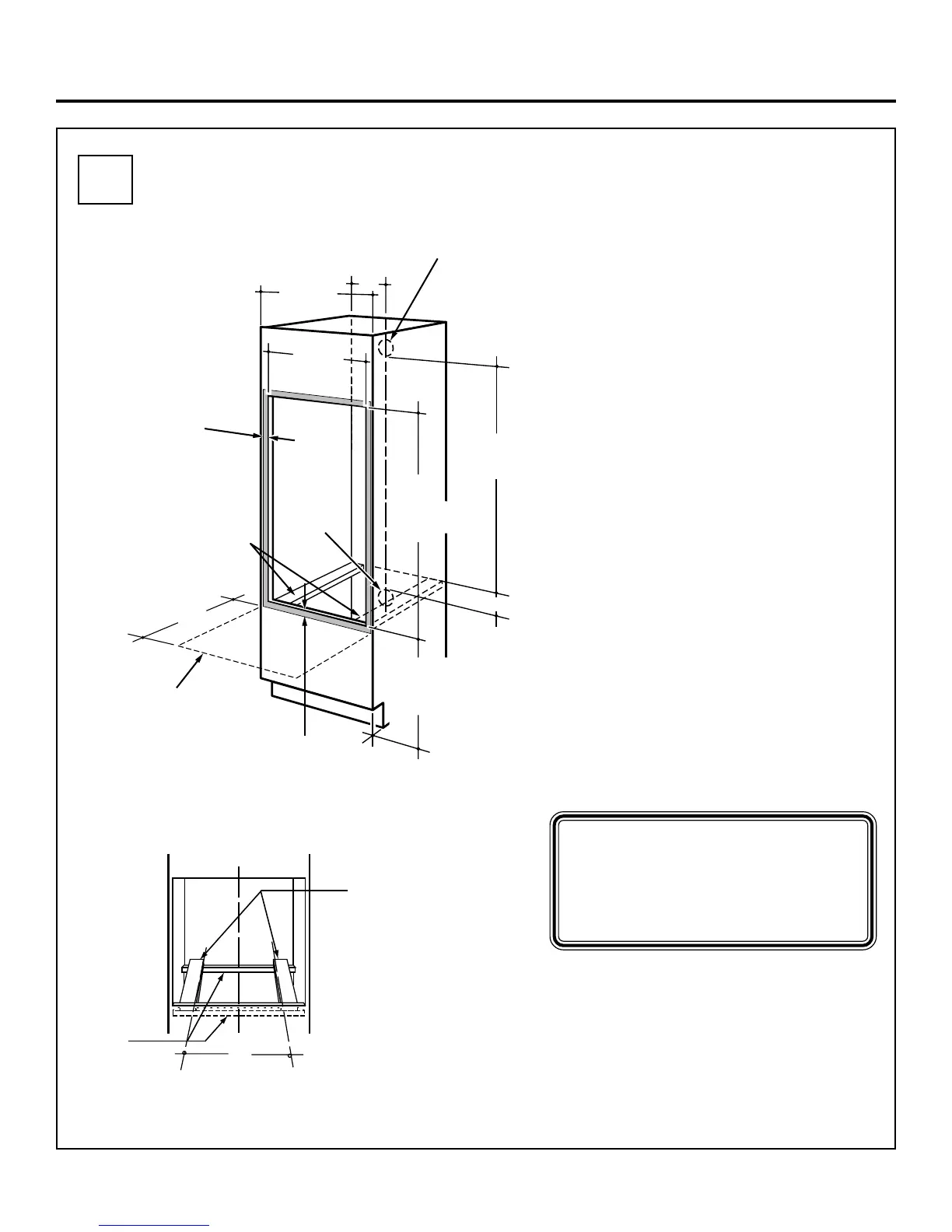

Cutouts for Double Built-In-Oven
A2
6
Cabinet Width 27”
Recommended
Cutout Location
from Floor 13 1/4”
Cutout Depth 23 5/8” Min.
Cutout Wdth 25” Min.
25 1/4” Max.
Cutout Height 49 11/16” Min.
50 1/8” Max.
Installation Instructions
C
L
SUITABLE
BRACING
TO SUPPORT
RUNNERS
2" x 4" or
EQUIVALENT
RUNNERS
18"
OVER CENTERLINE
OF CABINET
If the cabinet does not have a solid bottom,
then two braces and runners must be
installed to support the weight of the oven.
For double ovens the runners and braces
must support 275 pounds.
Cutout
Width
25" MIN.
25 1/4" MAX.
5"
Junction Box
Location
44"
above base
rail
10"
Cabinet
Width
27"
Allow a minimum of 20"
for clearance to adjacent
corners, drawers, walls, etc.
when door is open
Allow 7/8"
for overlap of
oven over side
edges of cutout
Allow 1" for
overtlap of oven
top and bottom
of cutout
Recommended
cutout location
from floor
13 1/4"
20"
2" x 4" or
equivalent
runners
Alternate
junction
box
location
Cutout
Height
49 11/16" MIN.
50 1/8" MAX.
