8
Turn off the circuit breaker or remove fuses
to the oven branch circuit.

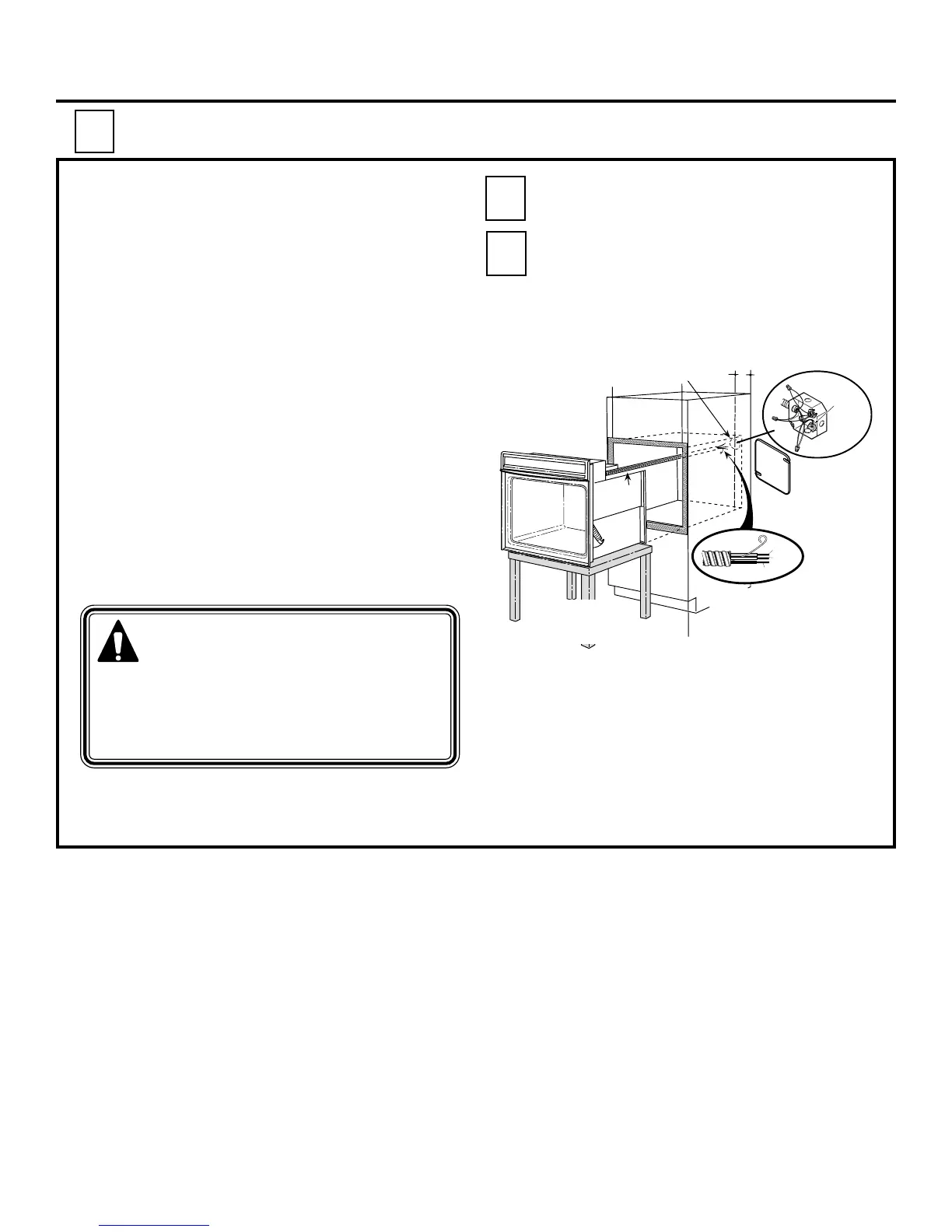

With the oven in front of the cabinet
opening, on a table or platform, connect the
flexible conduit to the electrical junction box
as shown below. You will need to purchase
a strain relief clamp to complete the
connection of the conduit to the junction
box.
Electrical Connections
( Continued on Next Page)
Installation Instructions
B
B1
B2
WARNING: Improper connection of
aluminum house wiring to copper
leads can result in an electrical
hazard or fire. Use only connectors
designed for joining copper to aluminum
and follow the manufacturer’s
recommended procedure closely.
Do not shorten the flexible conduit.The
conduit strain Relief Clamp must be securely
attached to the junction box and the flexible
conduit must be securely attached to the
clamp. If the flexible conduit will not fit within
the clamp, do not install the oven until a
clamp of the proper size is obtained.
NOTE TO ELECTRICIAN: The 3 power leads
supplied with this appliance are UL recognized for
connection to larger gauge household wiring. The
insulation of these 3 leads is rated at temperatures
much higher than the temperature rating of house-
hold wiring. The current carrying capacity of the
conductor is governed by the temperature rating of
the insulation around the wire, rather than the wire
gauge alone.
5"
JUNCTION BOX
LOCATION
CONDUIT
48 1/2"
LONG
PLACE OVEN ON
A SUPPORT
TO ASSIST IN
CONNECTING
CONDUIT
BARE
GROUND
RED
BLACK
WHITE
STRAIN RELIEF CLAMP
( NOT INCLUDED )
MUST BE USED
AT JUNCTION BOX
Ground
Wires
ATTENTION INSTALLER!!!
All electric wall ovens must be hard wired
(direct wired) into an approved junction
box. A plug and receptacle is NOT
permitted on these products.
To Next Page
