GE JSP46 Installation Instructions

5
Installation Instructions

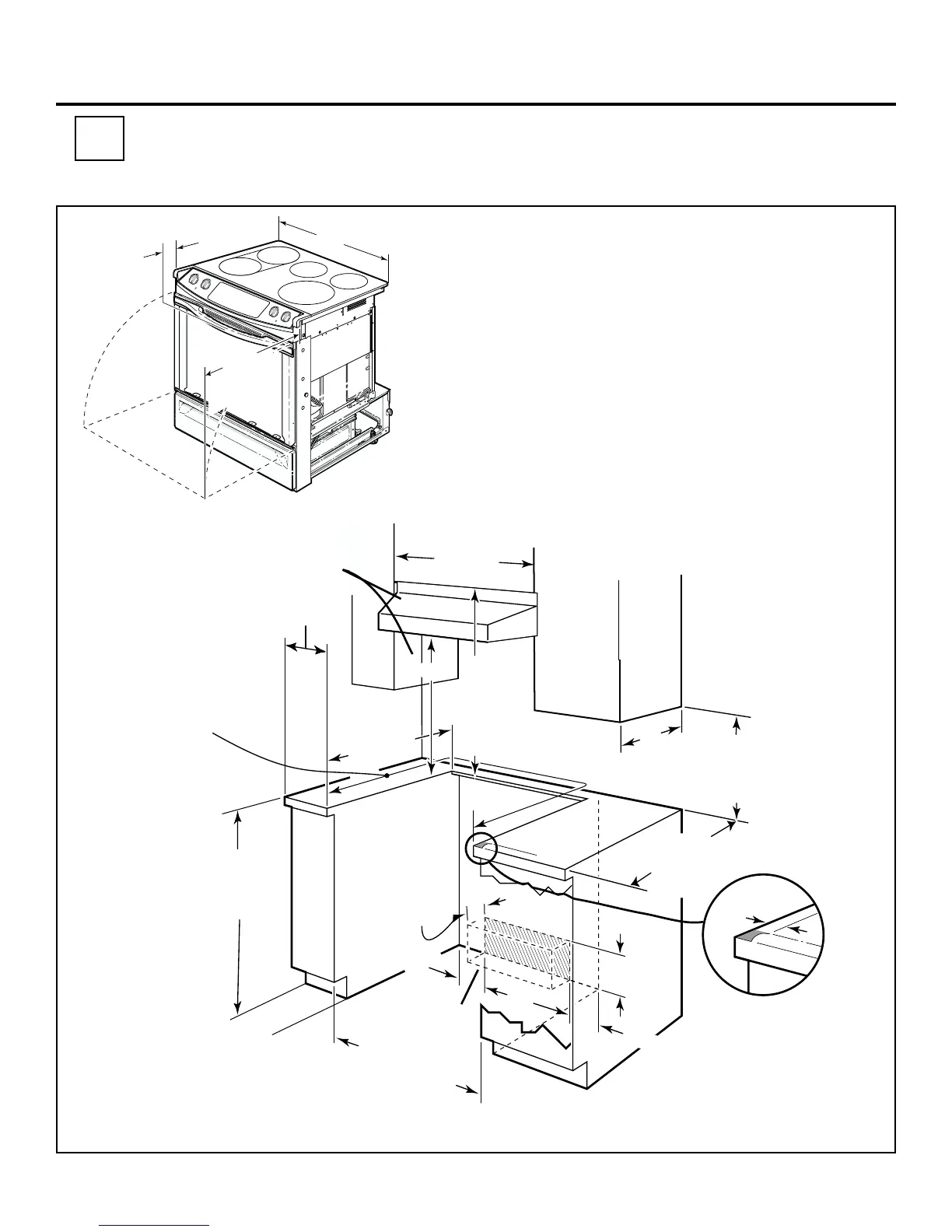

Pre- Installation Cutout and Required
Clearances
A
If cabinets are placed less than 30” above the
range, see alternate construction page 12.
NOTE: Product meets UL requirements for 0”
clearance to back and side walls.
Wall coverings, counters and cabinets around
range must withstand heat (up to 200°F)
generated by the range.
31-1/4"
2-7/8"
To Front
Surface Of
Countertop
Door Clearance
From Front
Surface of
Countertop
20-5/8"
5-1/2"
19"
5-1/2"
29-15/16"MIN
30-1/16" MAX
23-3/16"
7"
Acceptable
Electrical
Outlet Area
30" Min.
30" Min.
from
cooking
surface to bottom
of overhead
cabinets
Shave Raised Edge
To Clear 31-1/8"
Wide Control Panel
6" Min.
From Walls
9/16"
A
13"
Max.
depth
24"Min.
For Optimum
Installation These
Surfaces Must
Be Flat & Level
Max. depth of
cord, plug and
recpt. box
4" to prevent
interference
with drawer
Follow instructions
packaged with alternate
appliance.
Countertop
Depth 25"
35-1/2" to 36-1/2"
from floor to
countertop
15" Min. vertical
distance from the
bottom of the adjacent
overhead cabinets
