6
Standard Installation
B
Installation Instructions
If the construction of your cabinet cannot
provide a 1/4” flat area back of the countertop
opening, consider changing the counter top to
accomodate this dimension. See alternate
constructions section. If the area is not flat,
excess tension may be applied to the glass
causing breakage and voiding the warranty.
B1
Remove countertop raised edge. If
incorporated (See illustration on page 5).

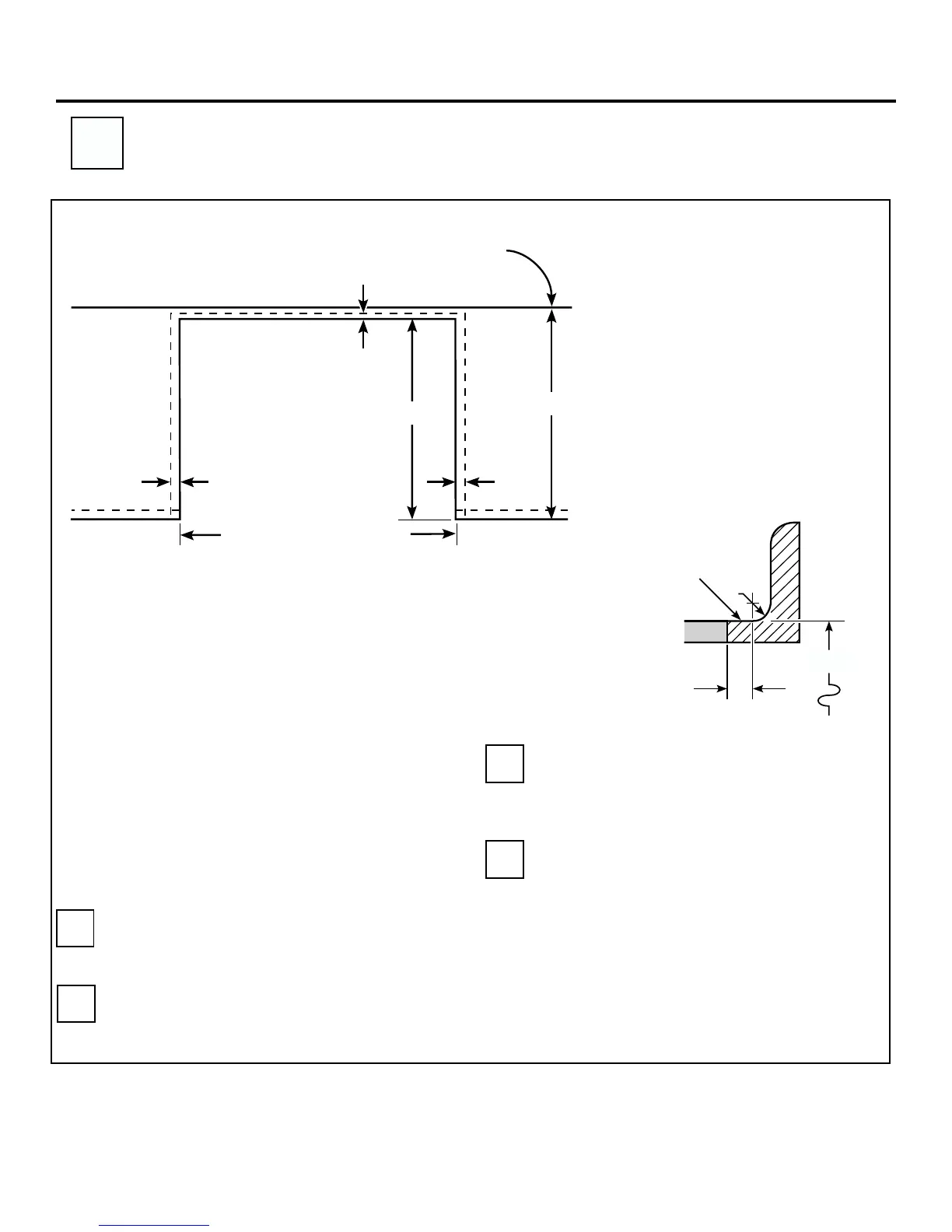

Center the 30” wide opening over the
adjacent cabinets and mark with a
straight edge.
B2
Using a straight edge mark the back line
at 23-3/16” from the front edge of the
counter.
B3
Be careful not to damage the adjacent
cabinets while cutting the countertop.
Use a hand or saber saw to make
straight smooth cuts.
B4
1/4"
R
FLAT AREA
36"
23-3/16"
25"Typically
Standard Installation
29 -15/16 to 30 -1/16"
Smooth Cut
Wall
9/16" Min.
Flat
1/4" Min.
Flat
9/16" Min.
Flat
To Next Page
