Installation Instructions
Installing the Anti-Tip Bracket
D
a. For concrete installation you will need two
1/4"x 1-1/2" lag screws, and two sleeve
anchors.
b. Locate the center of the four holes identified
in Fig. 1 as Floor-Concrete and Wall. Drill
the recommended size holes in each.
c. Install the sleeve anchors into the predrilled
concrete holes and install the lag and wall
screws through the Anti-Tip bracket. Make
sure the screws are securely tightened.
a. Locate the centers of the four holes identified
in Fig. 1 as Floor-Wood and Wall.
b. Drill a 1/8" pilot hole through the pre-marked
areas. Note the angle of the wall screw in
Fig. 2.
c. Mount the Anti-Tip bracket with the four
screws provided.

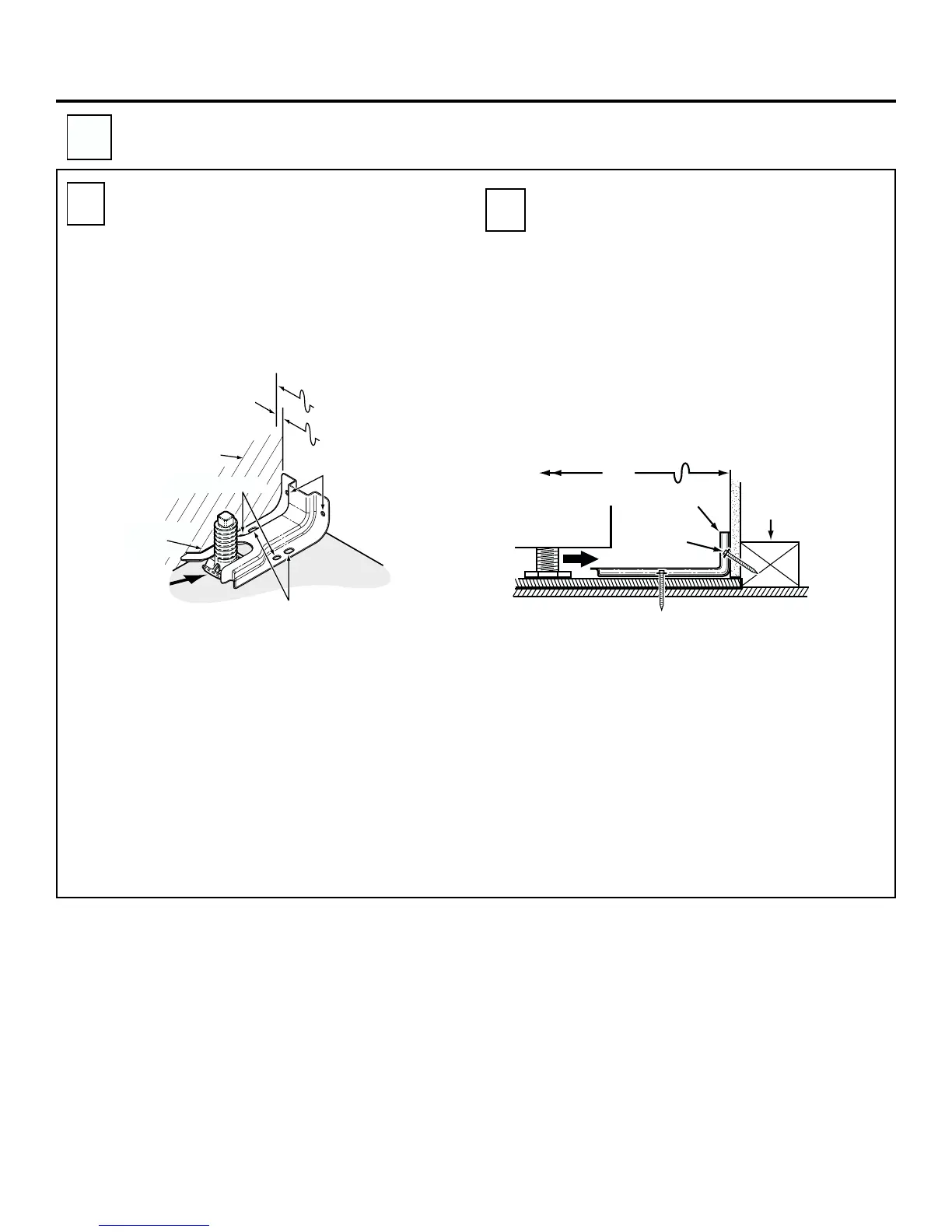

Locating The Bracket
a. Decide whether the bracket will be
installed on the right or left side of range
opening.
b. Place the bracket as shown in Fig. 1.
Fig. 1
Installing The Bracket in Wood
or Concrete
D1
INSTALLATION–WOOD CONSTRUCTION
I NSTALLATION–CONCRETE CONSTRUCTION
D2
Fig. 2
ATTACHMENT TO WALL
WALL
PLATE
BRACKET
SCREW MUST
ENTER WOOD
OR METAL
TO FRONT EDGE
OF
COUNTERTOP
25"
WALL
FLOOR-WOOD
REAR
LEVELING
LEG
ADJACENT CABINET
BRACKET
SIDE
FLOOR-CONCRETE
30"
Equal Space
Each Side
Larger Than 30" Opening
