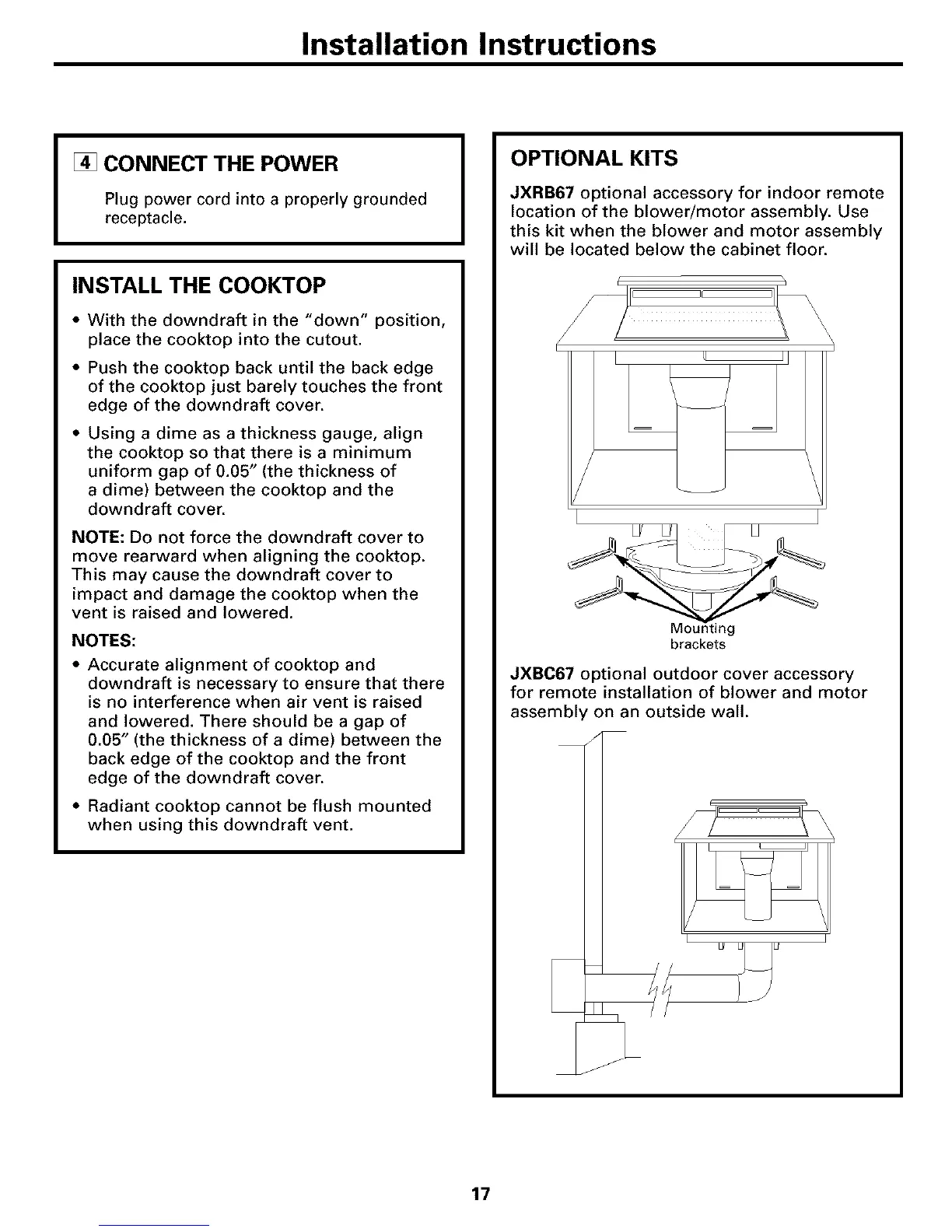

Installation Instructions
[] CONNECT THE POWER
Plug power cord into a properly grounded
receptacle.
INSTALL THE COOKTOP
• With the downdraft in the "down" position,
place the cooktop into the cutout.
• Push the cooktop back until the back edge
of the cooktop just barely touches the front
edge of the downdraft cover.
• Using a dime as a thickness gauge, align
the cooktop so that there is a minimum
uniform gap of 0.05" (the thickness of
a dime) between the cooktop and the
downdraft cover.
NOTE: Do not force the downdraft cover to
move rearward when aligning the cooktop.
This may cause the downdraft cover to
impact and damage the cooktop when the
vent is raised and lowered.
NOTES:
• Accurate alignment of cooktop and
downdraft is necessary to ensure that there
is no interference when air vent is raised
and lowered. There should be a gap of
0.05" (the thickness of a dime) between the
back edge of the cooktop and the front
edge of the downdraft cover.
• Radiant cooktop cannot be flush mounted
when using this downdraft vent.
OPTIONAL KITS
JXRB67 optional accessory for indoor remote
location of the blower/motor assembly. Use
this kit when the blower and motor assembly
will be located below the cabinet floor.
/
f
brackets
JXBC67 optional outdoor cover accessory
for remote installation of blower and motor
assembly on an outside wall.
17
