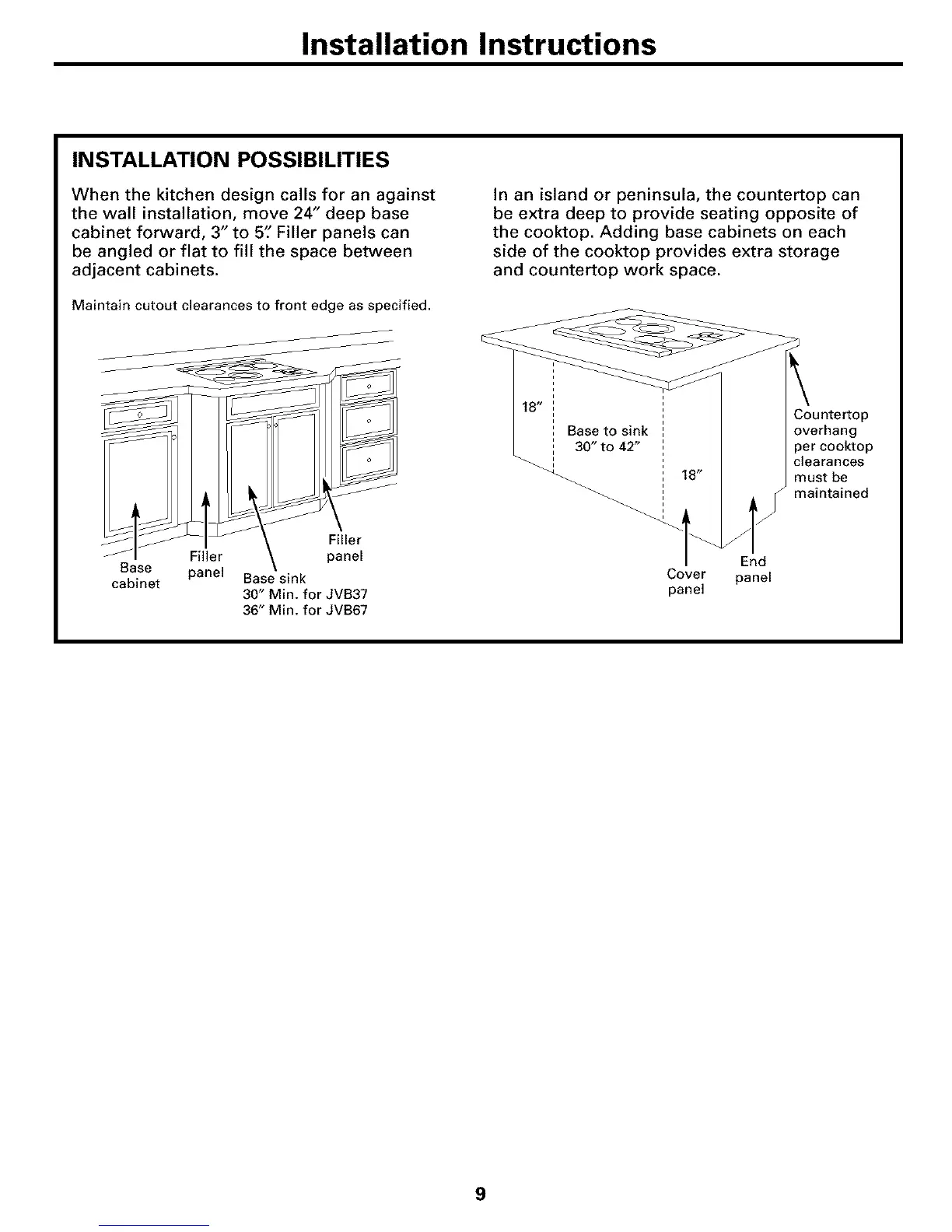

Installation Instructions
INSTALLATION POSSIBILITIES
When the kitchen design calls for an against
the wall installation, move 24" deep base
cabinet forward, 3" to 5'.' Filler panels can
be angled or flat to fill the space between
adjacent cabinets.
Maintain cutout clearances to front edge as specified.
/// Filler
Filler panel
Base panel
cabinet Base sink
30" Min. for JVB37
36" Min. for JVB67
In an island or peninsula, the countertop can
be extra deep to provide seating opposite of
the cooktop. Adding base cabinets on each
side of the cooktop provides extra storage
and countertop work space.
i
18" i
i
: Base to sink
30" to 42"
_l _ End
Cover panel
panel
overhang
per cooktop
clearances
must be
/ maintained
9
