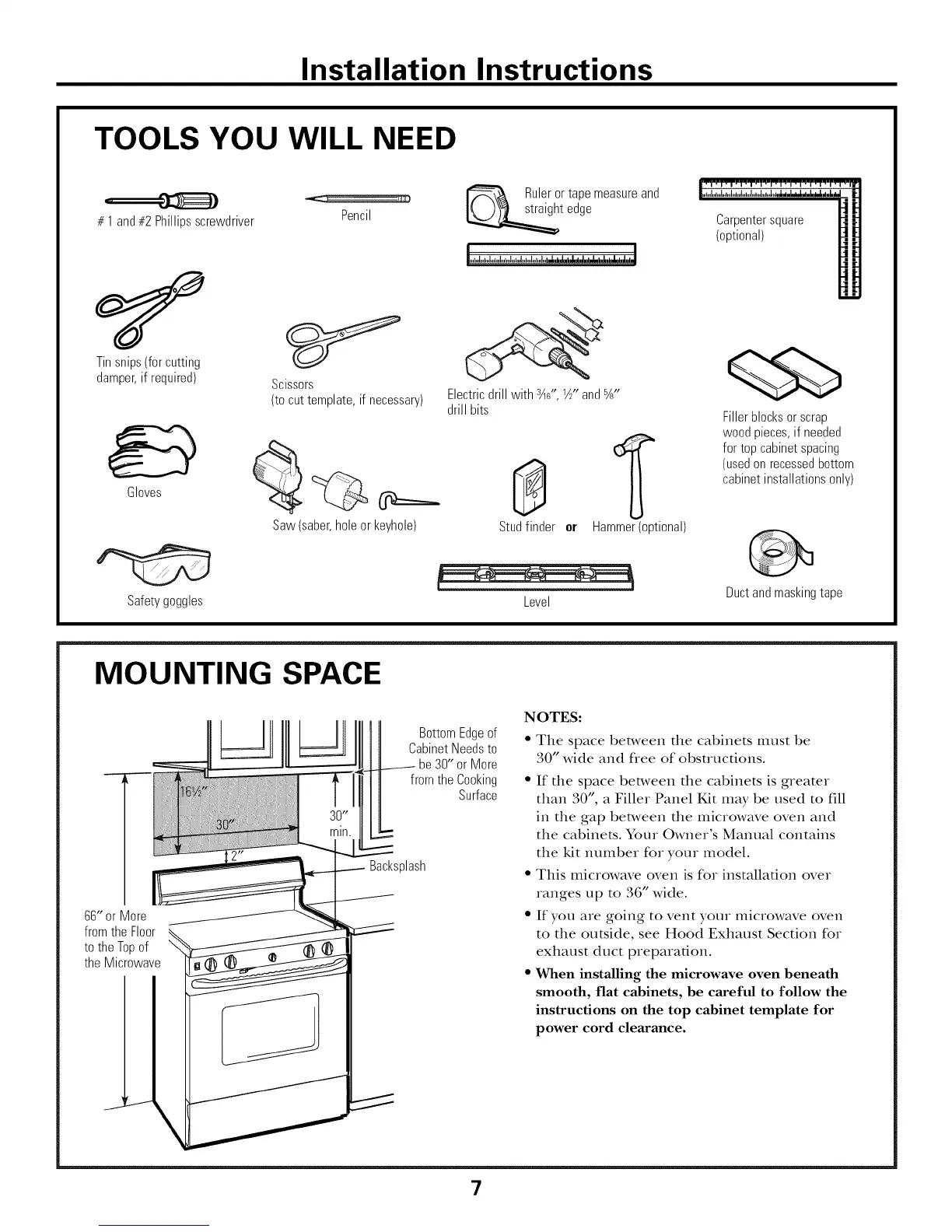

Installation Instructions
TOOLS YOU WILL NEED
# 1 and#2 Phillipsscrewdriver
Tinsnips(forcutting
damper,if required)
Gloves
Pencil
Scissors
(to cut template,if necessary)
Saw (saber,holeor keyhole)
Ruleror tapemeasureand
t edge
Electricdrill with s_s',Y2"and%"
drill bits
8
Studfinder er
Hammer (optional)
Carpentersquare
(optional)
Fillerblocksor scrap
woodpieces,if needed
for top cabinetspacing
(usedonrecessedbottom
cabinetinstallationsonly)
Safety goggles
Level
Duct and masking tape
MOUNTING SPACE
66" or More
fromthe Floor
tothe Topof
the Microwave
\
BottomEdgeof
CabinetNeedsto
be30" or More
from the Cooking
Surface
Backsplash
NOTES:
• The space between the cabinets must be
• 0 wide and free of obstructions.
• If the space between the cabinets is greater
than 30", a Fillet Panel Kit may be used to fill
in the gap between the microwave oven and
the cabinets. Your Owner's Manual contains
the kit number for your model.
• This microwave oven is for installation over
ranges tap to 36" wide.
• If you are going to vent your microwave oven
to the outside, see Hood Exhaust Section for
exhaust duct preparation.
• When installing the microwave oven beneath
smooth, flat cabinets, be careful to follow the
instructions on the top cabinet template for
power cord clearance.
7
To Next Page
