2

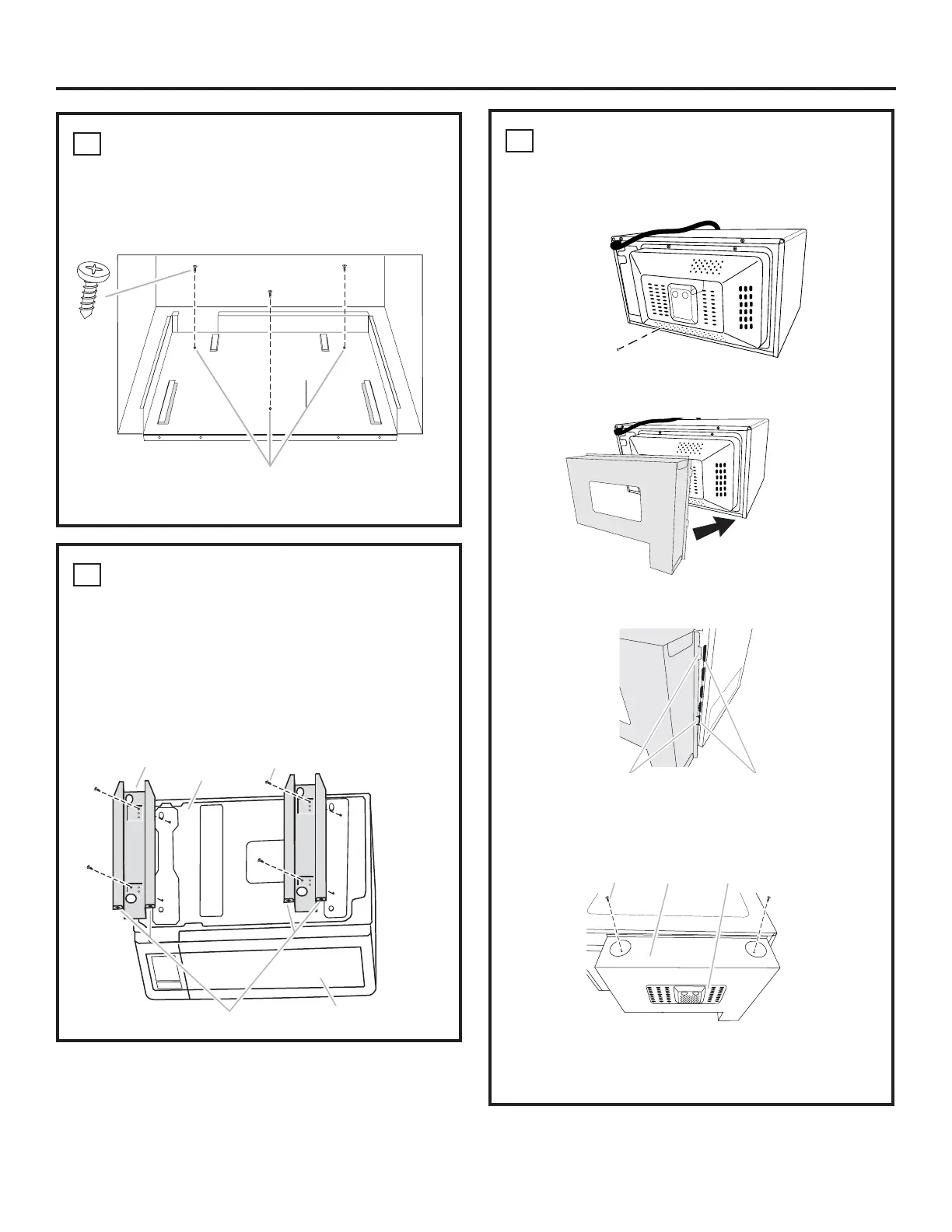

INSTALL THE RAILS
Disconnect the microwave oven from the receptacle.
Remove everything out of the microwave oven, including
packing, Owner’s Manuals, turntable and turntable support.
A protective film has been applied to some microwave
oven and trim kits. If applied, remove the film. Turn over the
microwave oven and secure the rails to oven Base Plate
by inserting 4 screws (A). Be careful not to scratch the
microwave oven.
1
LOCATE AND INSTALL THE BASE PAN
Set Base Pan into the front cabinet microwave oven
cutout and center it right and left. Push back until the
front flange is against the cabinet front wall. Mount
the Base Pan using 3 screws (A).
3
Installation Instructions
Screw A
Microwave
Oven Bottom
Rail
Screw (A)
Flanges
Door
Base Plan
Mounting Holes
3
INSTALL THE REAR DUCT
1. Gently return microwave oven to its upright position.
2. Remove screw A.
3. Align the rear duct with the back of microwave oven, as
shown.
4. Slide two tabs into the slots on the right side of the back
of microwave oven.
5. Use two short screws to secure top of rear duct to the
back of microwave oven, as shown.
A. Rear duct tabs
B. Slots
A B
A. Short screws (2)
B. Rear duct
C. Back of microwave oven
A
B
C
Screw A
