GE LOGIQ F SERIES
DIRECTION 5446617-100, REVISION 10 BASIC SERVICE MANUAL
4 - 8 Section 4-3 - General Procedure
4-3-5-3 Touch Panel (Option)
NOTE: Touch panel is an option, and it is not supported on LOGIQ F3.
Touch Panel contains exam function and mode/function specific controls.
a.) Exam Function Controls
1.) Patient: Enters Patient screen
2.) Scan: Enters scanning mode screen
3.) Reports: Activates default report and Touch Panel of report chioces.
4.) End Exam: Activates Image Management and Touch panel with end of exam options.
5.) Utility: Activates system configuration menus.
6.) Model: Selects the application to use.
7.) Probe Indicator: Indicates and selects the probes.
NOTE: Different menus are displayed depending on which touch panel is selected.
At the bottom of the Touch panel, there are five joystick rotaries. The functionality of these rotaries
changes, depending upon the currently-displayed menu. Press the button to switch between
parameters, activate/disable fucntions or adjust the parameter. Rotate the dial to adjust the parameter.

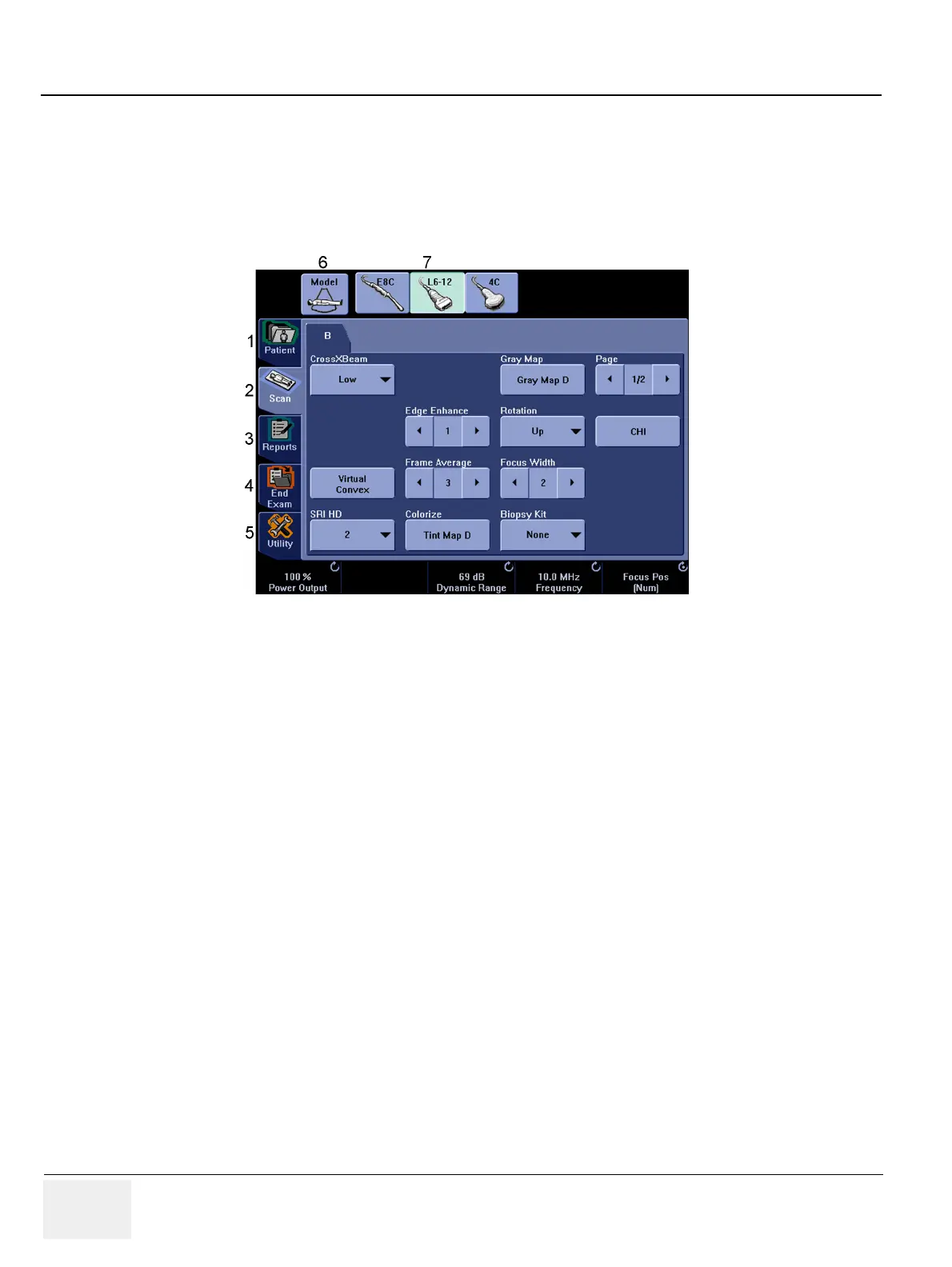

Figure 4-7 Exam Function Controls
