GE LOGIQ F SERIES
DIRECTION 5446617-100, REVISION 10 BASIC SERVICE MANUAL
4 - 10 Section 4-3 - General Procedure
4-3-5-4 Monitor Display

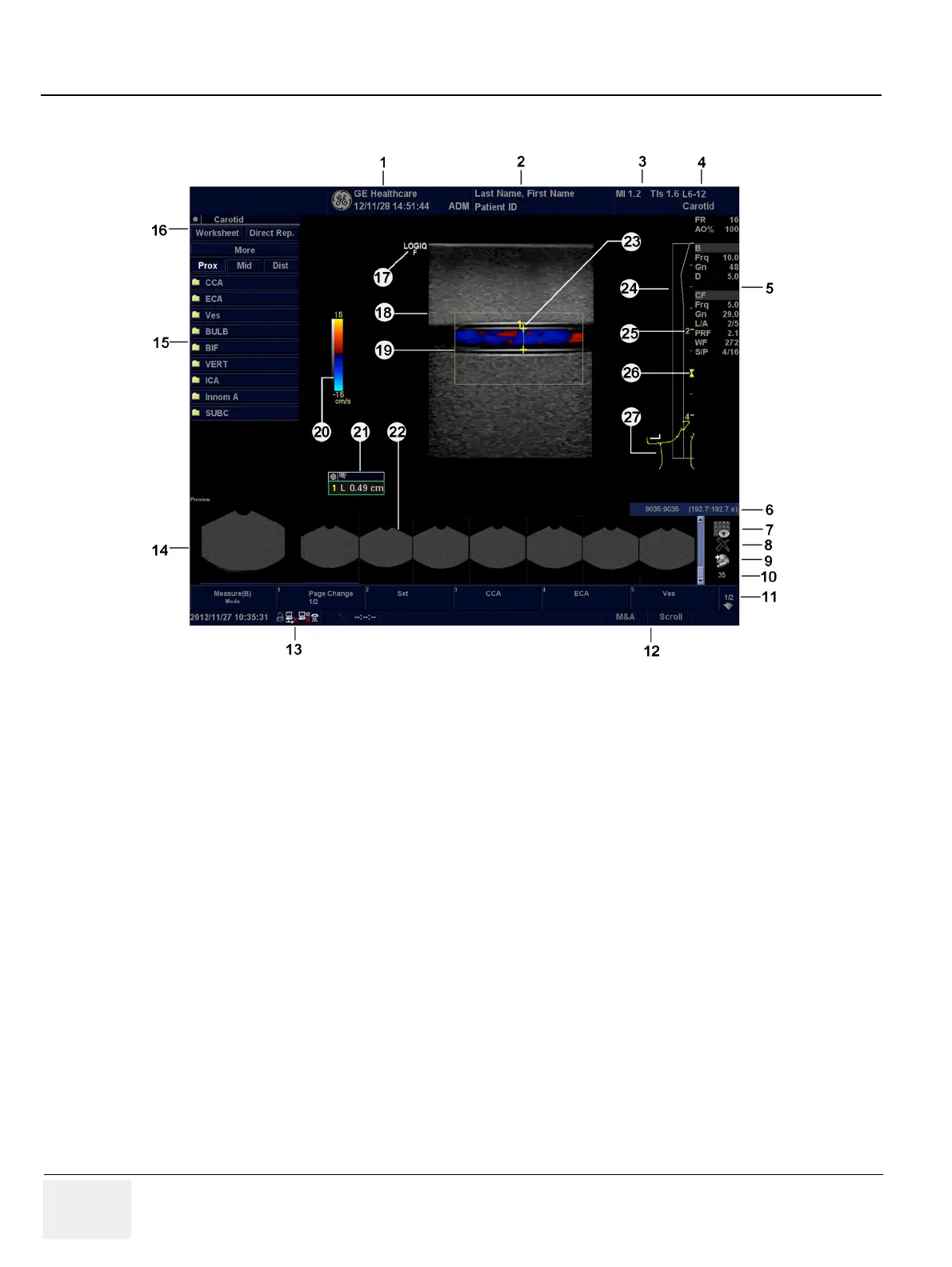

Figure 4-9 Monitor Display Tour
1. Institution/Hospital Name, Date, Time, Operator Identification.
2. Patient Name, Patient Identification.
3. Power Output Readout.
4. Probe Identifier. Exam Preset.
5. Imaging Parameters by Mode.
6. Cine Gauge.
7. Active Images screen.
8. Delete Image.
9. Save As Menu.
10. Number of Images in Exam.
11. Page Indication.
12. Trackball Functionality Status.
13. Current date and time, Caps Lock: (lit when on), network
connection indicator (PC=connected, PC with X=not
connected), system messages display, InSite status, InSite
controls. Image Preview
14. Image Preview.
15. Measurement Summary Window.
16. Worksheet/Direct Report.
17. Probe Orientation Marker.
18. Image.
19. Region of interest.
20. Gray/Color Bar.
21. Measurement Results Window.
22. Image Clipboard.
23. Measurement Calipers.
24. TGC.
25. Depth Scale.
26. Focal Zone Indicator.
27. Body Pattern.
