IRECTION 5308917-100, REVISION 8 LOGIQ P3 SERVICE MANUAL
Chapter 8 Replacement Procedures 8-49
3) Remove USB cable from MST board Refer Figure 8-55 on page 8-49

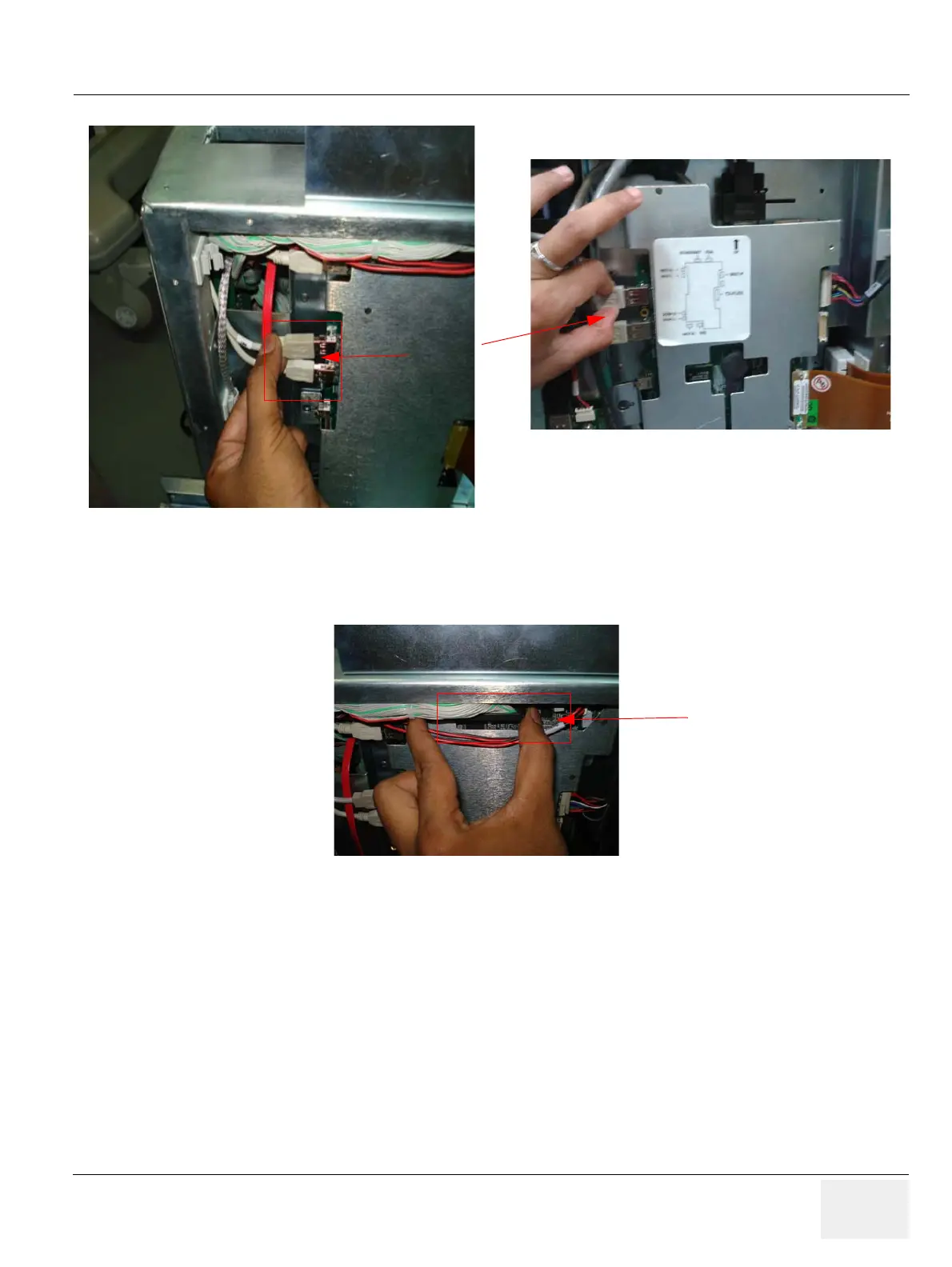

Figure 8-55 Removing USB cable of MST board
4) For LOGIQ P3 - Remove the FRC cable from MST board Refer Figure 8-56 on page 8-49
Figure 8-56 Removing FRC cable of MST board (LP3)
5) For LOGIQ P3BT10 - Remove the Video signal (VGA) cable from MST board as shown below.
USB cable
LOGIQ P3
LOGIQ P3 BT
FRC cable
