GE PROPRIETARY TO GE
D
IRECTION 5308917-100, REVISION 8 LOGIQ P3 SERVICE MANUAL
Chapter 8 Replacement Procedures 8-71
5) Remove the two flexi cable from TX board as shown below in Figure 8-78 on page 8-71

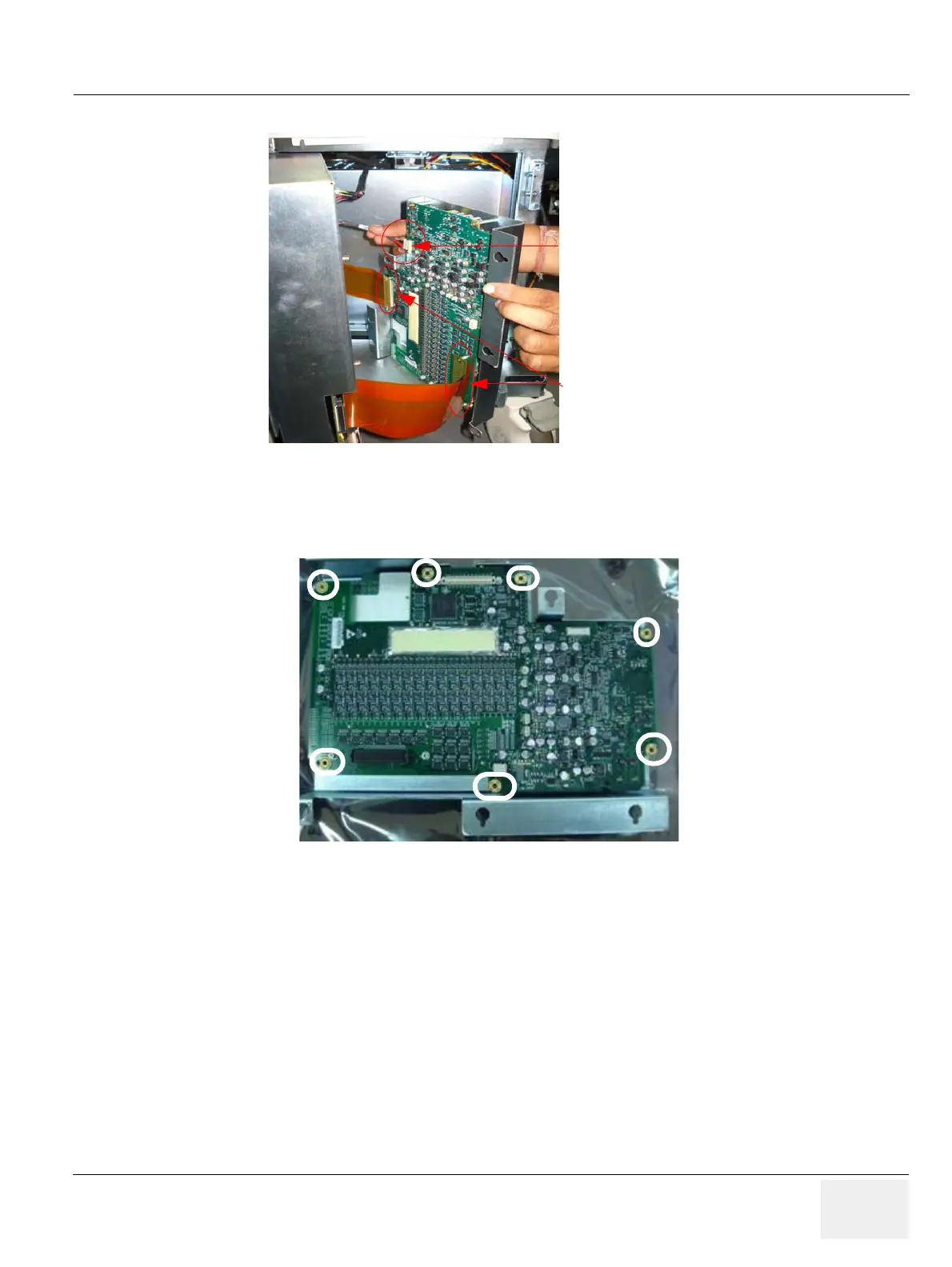

Figure 8-78 Removing TX conn board cable & Flexi cable
6) Remove the Screws fixed in Tx Pwa & seperate the RX PWA from TX PWA as shown in Figure 8-79
on page 8-71
Figure 8-79 Tx-RX combined
8-6-0-5 Mounting procedure
1.) Install the new parts in the reverse order of removal.
Tx conn board cable
Flexi cable
To Next Page
