4-6 MAC 1200 resting ECG analysis system Revision D
2012250-095
Repair Instructions: Replacing Components

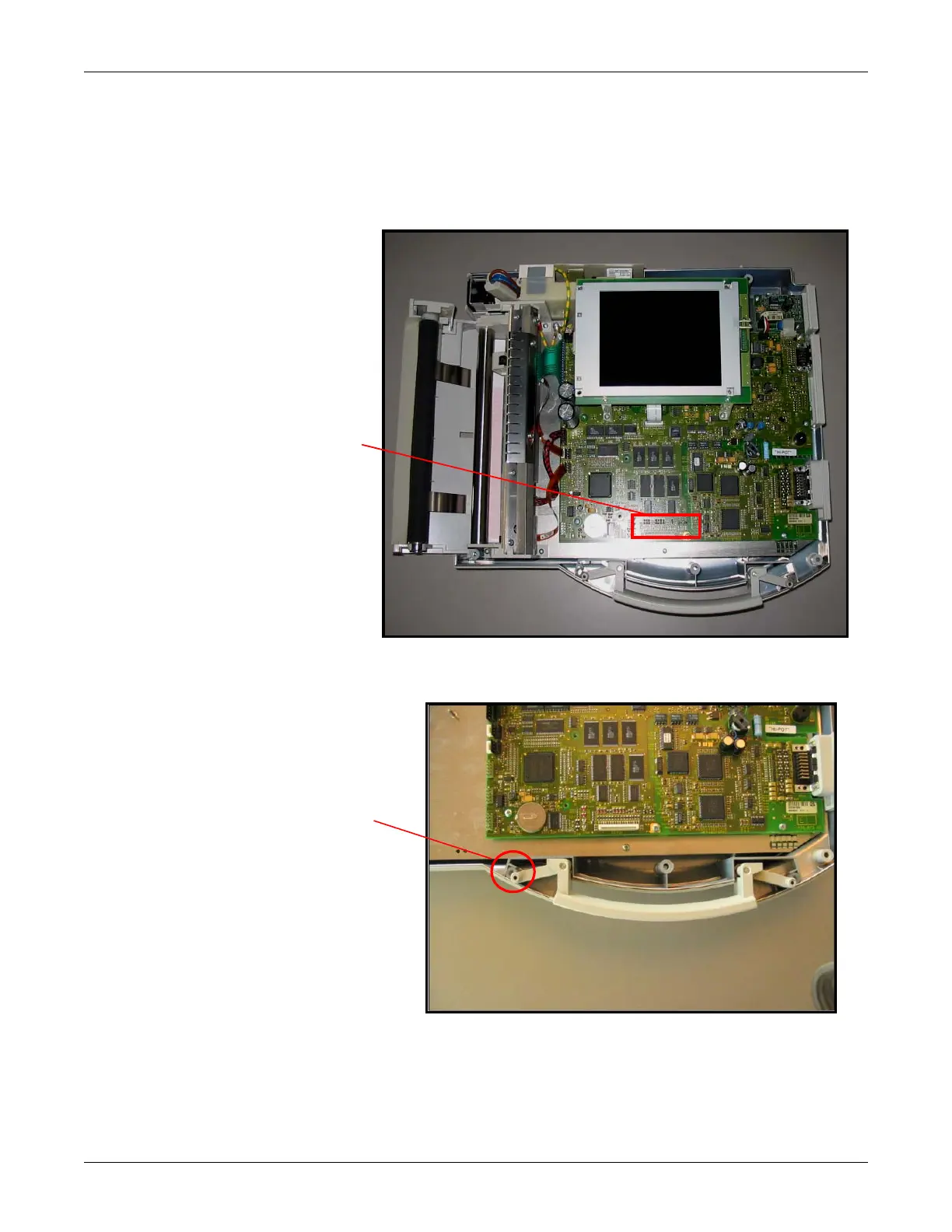

Replacing the Keypad
1. Open the device as described in “Opening the Device” on page 4-4.
2. Replace with new Keypad FRU Assembly by connecting keypad connector in
front of unit.
3. Place the plastic spacer tubes back in the handle.
4. Align upper shell to lower unit.
5. Insert and fasten 5 screws to lower unit
