22 MERLIN PERMEATE STORAGE SYSTEMS
Rev C
MERLIN PERMEATE STORAGE SYSTEMS
The Merlin is designed to provide an average 1/2 gpm (1.89 Lpm)
continuous flow rate at NSF/ANSI 58 conditions. Some applications may
require an intermittent flow rate higher than the 1/2 gpm rate. This can be
accomplished by using a permeate storage tank.
Type Of Storage Tank
Pressurized storage tanks create a backpressure on the system that will
reduce performance. For this reason we recommend the use of an
atmospheric storage tank with a float shutoff for storing permeate water
as shown in Figure 13.

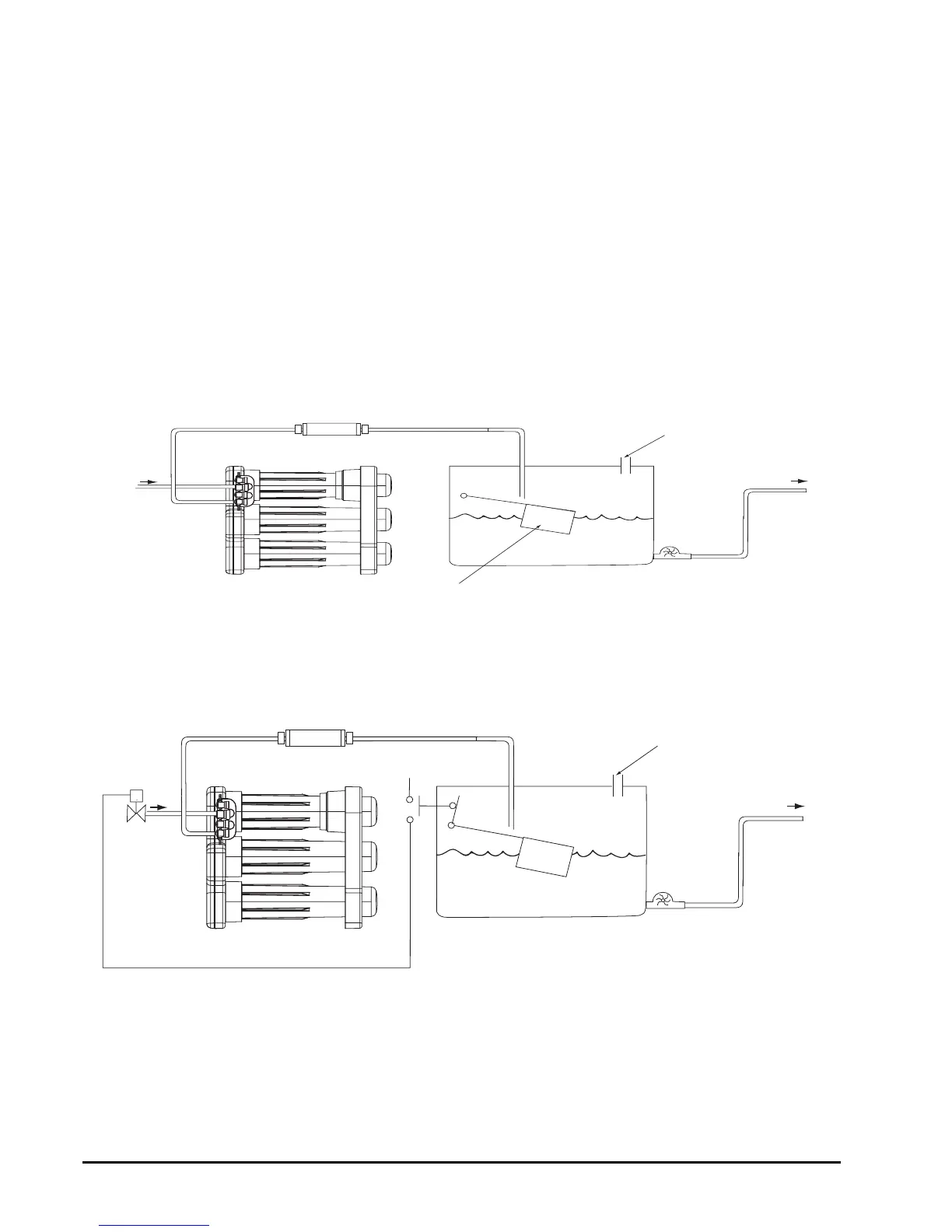

Figure 13 Option 1 with Mechanical Float
Figure 14 Option 2 with Solenoid
Merlin RO Assembly
Inlet
Pressure
Pump
To Point of Use
Vented to atmosphere
Mechanical float must trap and
hold permeate pressure or
Merlin will run to drain.
Merlin RO Assembly
Inlet
Pressure
Pump
To Point of Use
Vented to atmosphere
Solenoid
Feed Valve
