30 COMMERCIAL AND INDUSTRIAL APPLICATIONS
Rev C

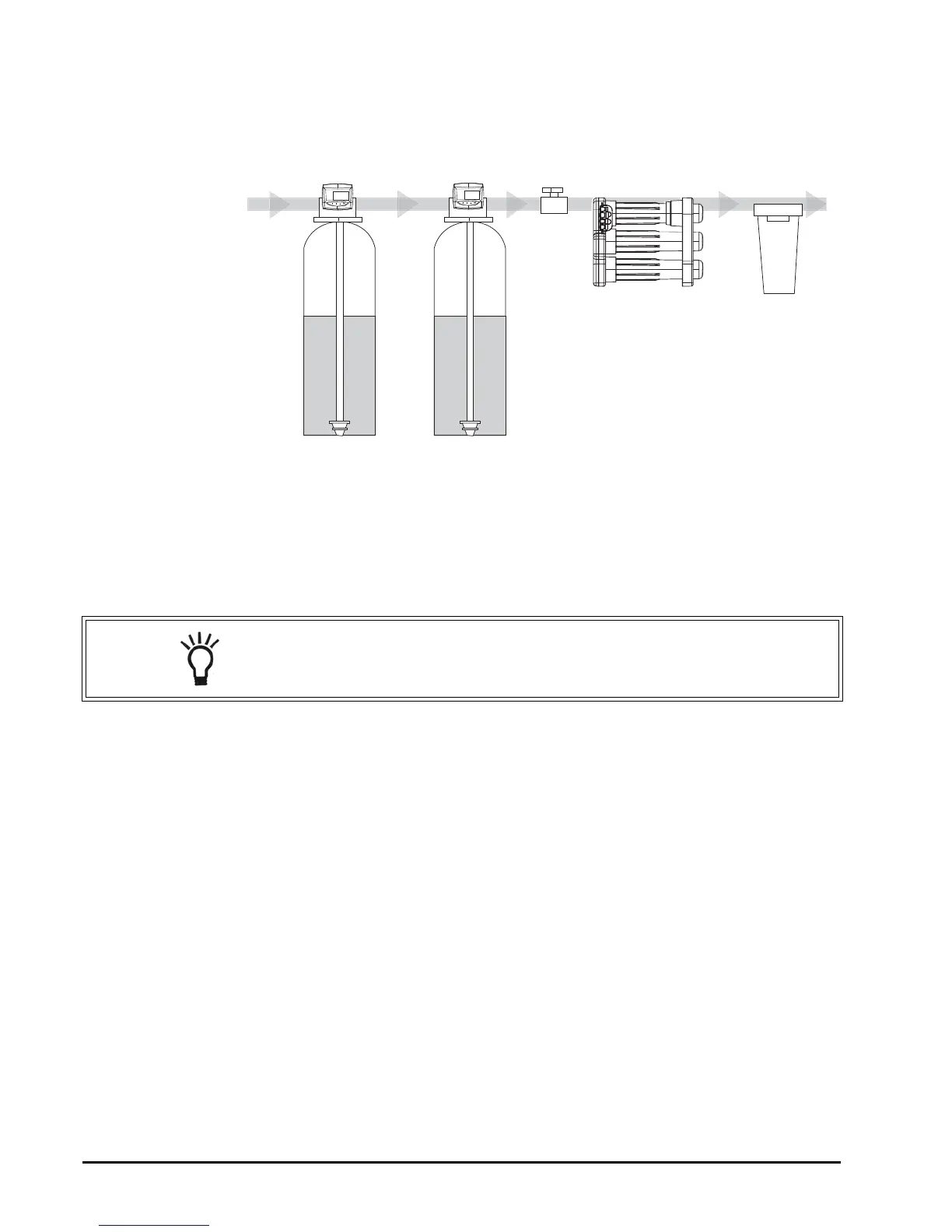

Figure 22 - 100 to 720 Gallons (378 to 2725 Liters) Per Day Permeate Water Use
Merlin RO Assembly
Carbon Backwash Filter -
size according to water
use needs - reduce to
0ppm chlorine
Water Softener -
size according to
water use needs -
reduce hardness,
manganese, and
iron to 0 grains
System
Inlet
Water
Replace prefilter
with 10-micron
sediment filter
High capacity
post filter
Shutoff Valve-
use when
permeate
systems
are in
regeneration
To point
of use
NOTE: Additional pretreatment may be necessary for high turbidity,
high iron, or pH imbalanced water.
