3. Connecttheovenneutral(white)leadtothebranch
circuit neutral(whiteor gray)In accordancewith
localcodes.
4. Connecttheovenredleadtothebranchcircuitred
leadandtheovenblackleadto the branchcircuit
blackleadIn accordancewith localcodes, ff the
residenceredandblackleadsarealuminumconduc-
tors,see"WARNING"notebelow.
NOTE TO ELEI_'RICIAN= The 3 powerleads
supplied with this appliance are U.L recognized for
connection to larger gauge household wiring. The
Insulation of these 3 leads Is rated at temperatures
much higher than the temperature rating of household
wiring. The currant carrying capacity of theconductor
Isgoverned bythe temperature rctlng ofthe IneulaUon
around the wire, rather than the wire gauge alone.
WARNING:
IMPROPER CONNECTION OF ALUMINUM HOUSE WIRING TO COPPER LEADS CAN
RESULT IN AN ELECTRICAL HAZARD OR FIRE. USE ONLY CONNECTORS DESIGNED
FOR JOINING COPPER TO ALUMINUM AND FOLLOW THE MANUFACTURER'S RECOM.
MENDED PROCEDURE CLOSELY.
FOR ALL INSTALLATIONS
The oven my be supported by either a solid
bottom or two runners. The solid bottom or two
runners should be level with the bottom edge of
the cutout opening.
NOTE: The entire weight of the oven is sup-
ported by the 2" x 4" or equivalent runners. Make
sure these runners are level_ rigidly mounted and
spaced 20 1/2" on center. The space between
the runners is 19" wide.
NOTE:
If a solid bottom is used instead of run.
ners, a 6" x 10" rectangle must be cut out
of the bottom (See Fig. 1_ for optimum
performance and proper air circulation,

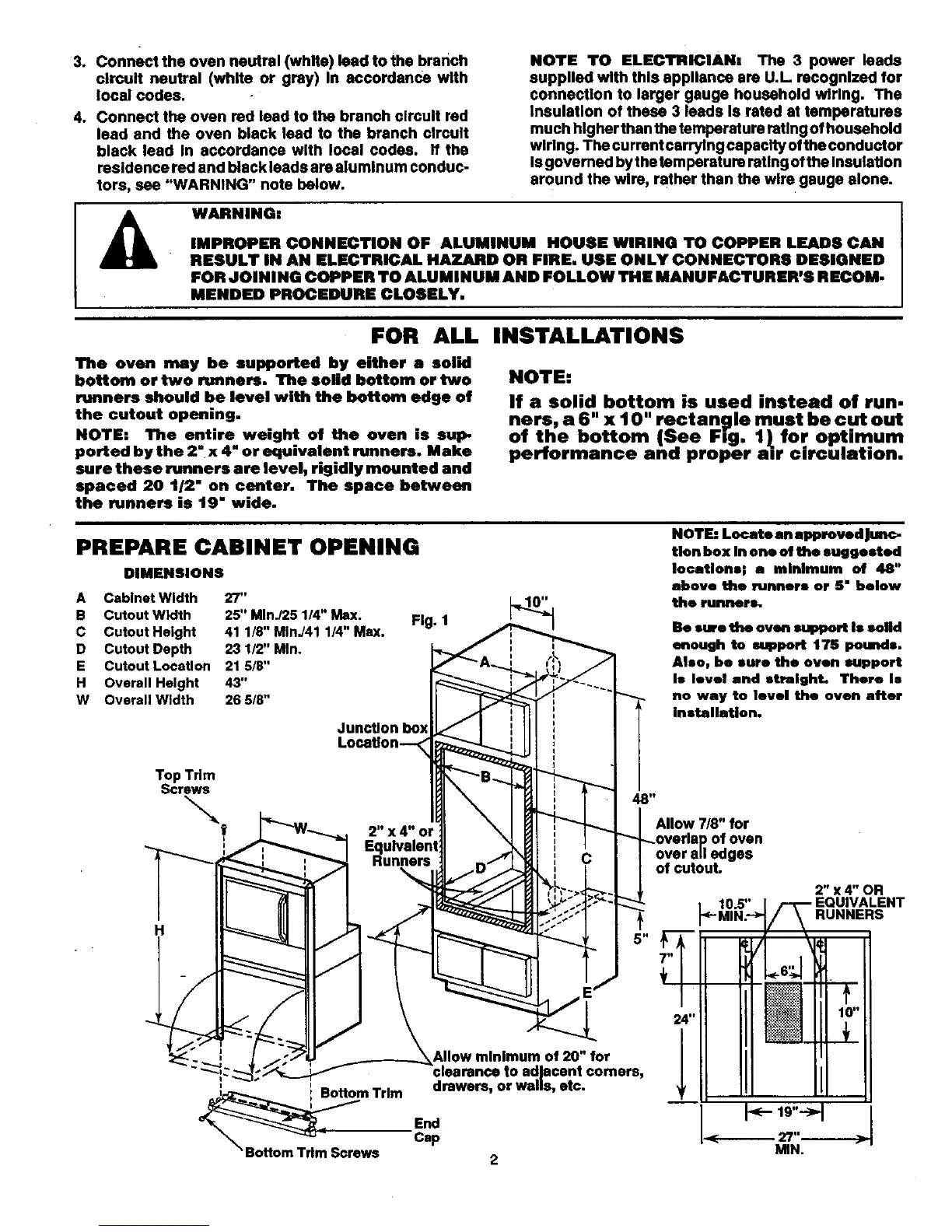

PREPARE CABINET OPENING
DIMENSIONS
A Cabinet Width 27"
B Cutout Width 25" MInJ25 1/4" Max.
C Cutout Height 41 1/8" MInJ41 1/4" Max.
D Cutout Depth 23 1/2" MIn.
E Cutout Location 21 5/8"
H Overall Height 43"
W Overall Width 26 5/8"
Fig. 1
Junction box
NOTE: Locate an appraved Junc-
tion box In one of the suggested
locations I a minimum of 48"
above the runners or 5" below
the runnQrl_
Be sure the oven support Is soUd
enough to aupport 175 pounds.
Also, be sure the oven support
Is level and straight. There Is
no way to level the oven after
installation.
Top Trim
Screws
T
H
Allow minimum of 20" for
drawers, etc.
End
Cap
2
48 w
Allow 7/8" for
) of oven
of cutout.
2" X 4" OR
RUNNERS
24"
_------- 27 --------_
MIN.
