GE MILLENIUM GE OSMONICS MILLENIUMTM REVERSE OSMOSIS UNIT - Page 88

M
Millenium™ RO System by GE Osmonics
14693e - 31 Mar 03 6 - 7 Drawings
ALARM SET
SWITCH
CONDUCTIVITY PC BOARD
DISPLAY PC BOARD
PRODUCT WATER TDS
% REJECTION
PC BOARD
SENSOR
SENSOR
SENSOR
SONALERT
CONDUCTIVITY
INLET WATER
PRODUCT WATER
THERMISTOR
POWER
SUPPLY
(% REJECTION)
Millenium RO

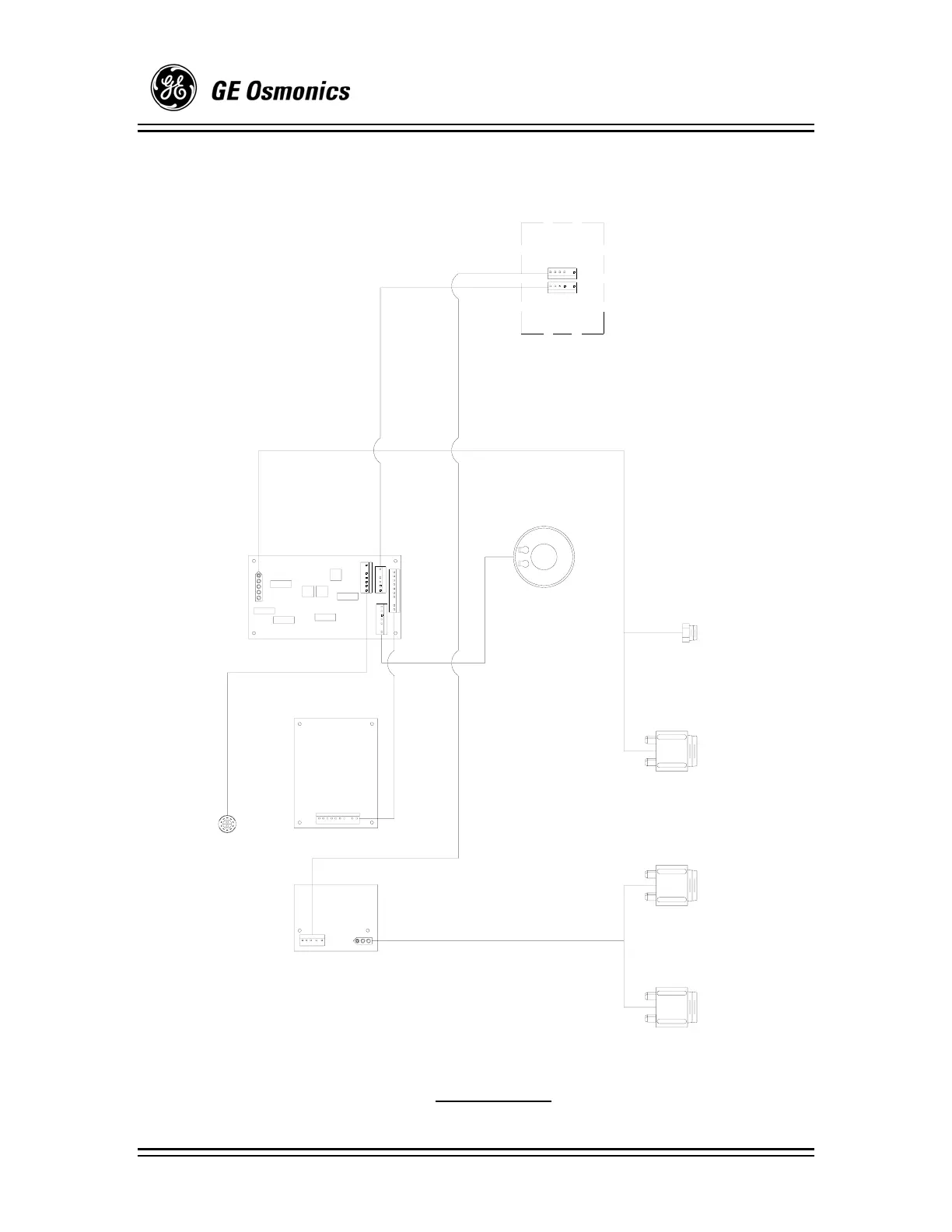

(Electrical Schematic, Low Voltage, 50/60Hz)
