3
Design Information
Automatic Icemaker
Models
Available
ZDI15, ZDIS15
Available in black, white and stainless steel.

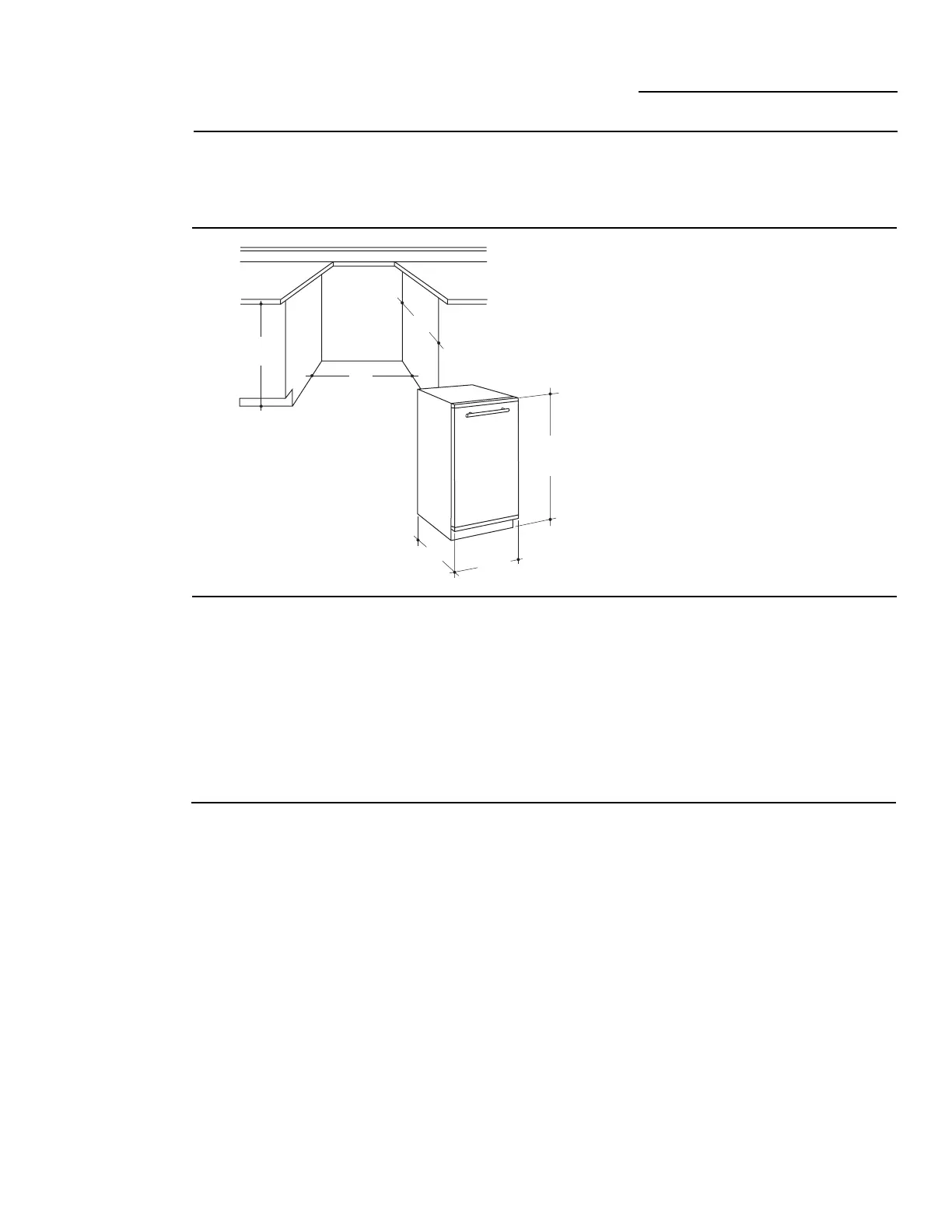

Cutout &
Product
Dimensions
ZIP75WW White and ZIP75BB Black – For the
installation of a trimless 3/4” thick custom
panels on white and black models. (Not for
stainless steel models.) A custom handle of
your choice may be installed onto the 3/4"
panel. See installation instruction page 9.
ZPK1 – Drain Pump Kit. For use when a floor
drain is not available.
The ice machine may be installed below a
countertop or used free-standing.
Optional
Accessories
• 1/4” socket
• 3/4” adjustable wrench
• Level
• 1/4” OD copper tubing, length to reach the installation
Tools and
Materials
Required
14-13/16"
24"
min.
15"
34" min.
Adjustable
to 34-1/2"
34" to
34-1/2"
23-5/16" to
Door Front
Note:
The addition of a 3/4" thick front panel will
result in a front to back depth of 24-1/16".
Cutout dimensions shown allow for a full door
swing. When installing a 3/4" thick custom
door panel, additional clearances at the sides
may be required.
Frameless Cabinets:
• If installing between frameless cabinets, a
1/2" filler strip or side panel may be required
on the hinge side. The filler strip will act as a
spacer between the door case and adjacent
cabinet and will prevent interference with
icemaker door swing. The width of the
opening must include filler or side panel
thickness.
