GE Multilin 350 - Illumination and Component Details

Color Catalog Number
Green 800T-N376G
Red 800T-N376R
White 800T-N376W
Allen-Bradley and Rockwell Automation are trademarks of Rockwell Automation, Inc.
Trademarks not belonging to Rockwell Automation are property of their respective companies.
Publication 800T-PP007B-EN-P - December 2011
Supercedes 800T-PP007A-EN-P – February 2011 Copyright © 2011 Rockwell Automation, Inc. All Rights Reserved. Printed in USA.
Voltage Rating Catalog Number
12...130V AC/DC 800TC-N374
Protection Rating
Code Description
T Metal, Type 4/13
H Plastic, Type 4/4X/13
Finger-Safe Guards
Code Description
blank No Guards
C Guards on Terminals
Illumination Option
Code Description
blank Incandescent
H
Y High Intensity LED
Power Module Type
800T
Description
800H
Code Code
P
Transformer
(or Dual Input)
PR
Q Full Voltage QR
Lens Color
Plastic
Description
Glass †
Code Code
blank No Lens blank
AAmberD
BBlueE
CClearF
GGreenH
RRedJ
WWhiteK
Lamp Test Options
Code Description
blank No Test Option
T
5 Push-to-Test
D
= Dual Input, Diode Type
DT
=
Dual Input,
Transformer Type
Voltage Rating
Full Voltage LED
Code Description
2 12...130V AC/DC
Full Voltage Incandescent
24 24V AC/DC
10 120V AC/DC
20 240V AC/DC
Transformer
16 120V AC 50/60 Hz
26 240V AC 50/60 Hz
46 460V AC 50/60 Hz
56 600V AC 50/60 Hz
Dual Input
16 120V AC
24 * 24V AC/DC

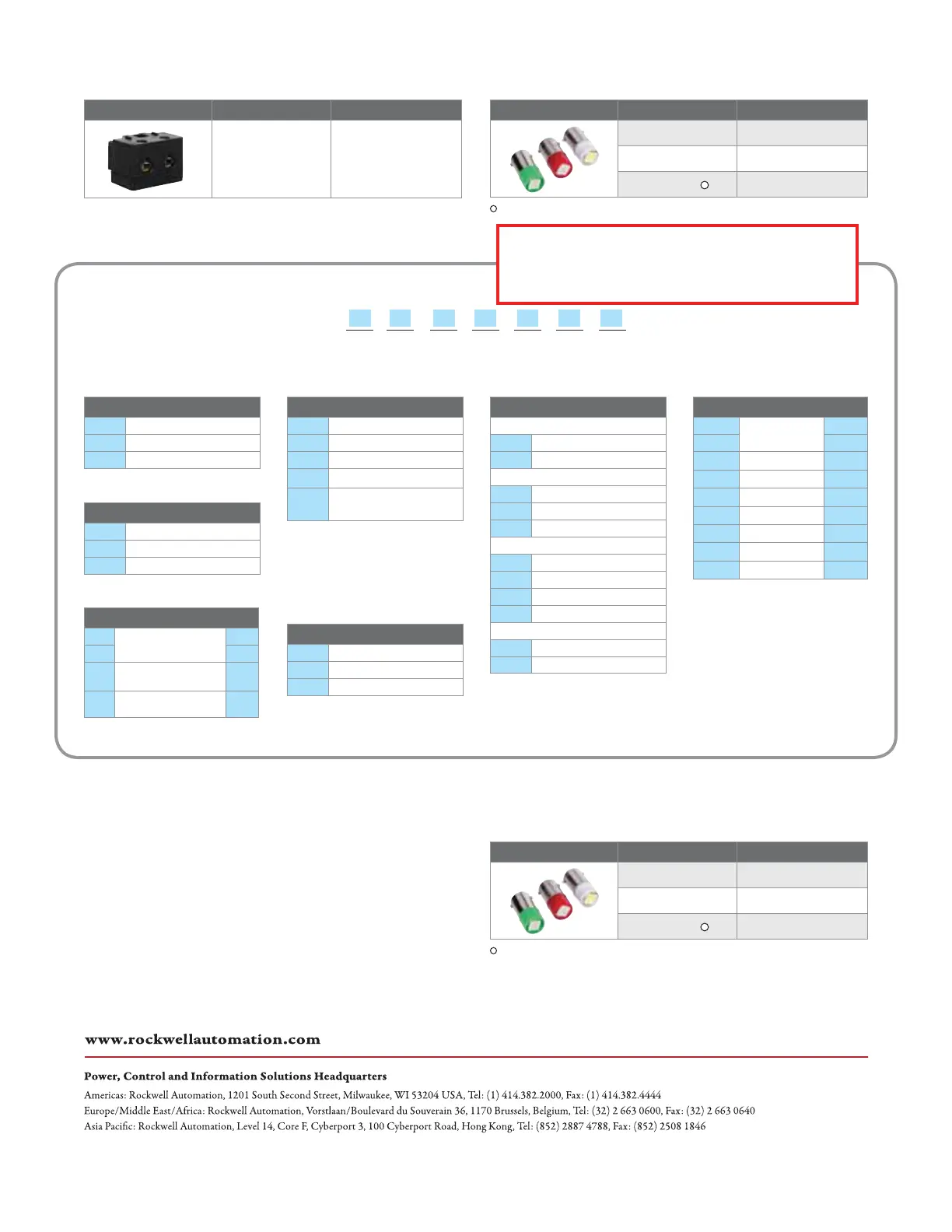

Universal LED System Components
High Intensity LED Lamps for Transformer Type Devices
Pilot Light Catalog Number Confi guration
Power Module LED Lamps
The white LED lamp is recommended for use with amber, blue clear and white color lenses.
Color Catalog Number
Green 800T-N377G
Red 800T-N377R
White 800T-N377W
Transformer Type LED Lamps
The white LED lamp is recommended for use with amber, blue clear and white color lenses.
Available for retrofi tting into existing installations.
For other options, please consult your local Allen-Bradley or Rockwell Automation® sales offi ce.
New high intensity LED lamps are now also available for
transformer type devices – now provided as standard
with all factory assembled transformer type illuminated
devices. The lamps are also being sold separately, allowing
for retrofi tting into existing installations.
* Dual input, diode type only.
† 800T type only.
800 T – Q H 2 R
a b c d e f g
a
b
e
c
dfg
Y LED illumination is not available with diode
type dual input.
5 Non-push-to-test pilot lights using the
Universal LED option cannot be ordered
as 800HC or 800TC. The terminals are
fi nger-safe as standard.
= Dual input devices (diode type and
transformer type) cannot be ordered as
800HC or 800TC. Finger-safe terminal
guards are not available.
This Project
800-T-Q-T-H-2-*
