QUICK START GUIDE

MULTILINK ML1600/2400 ETHERNET COMMUNICATIONS SWITCH – QUICKSTART GUIDE QS–31

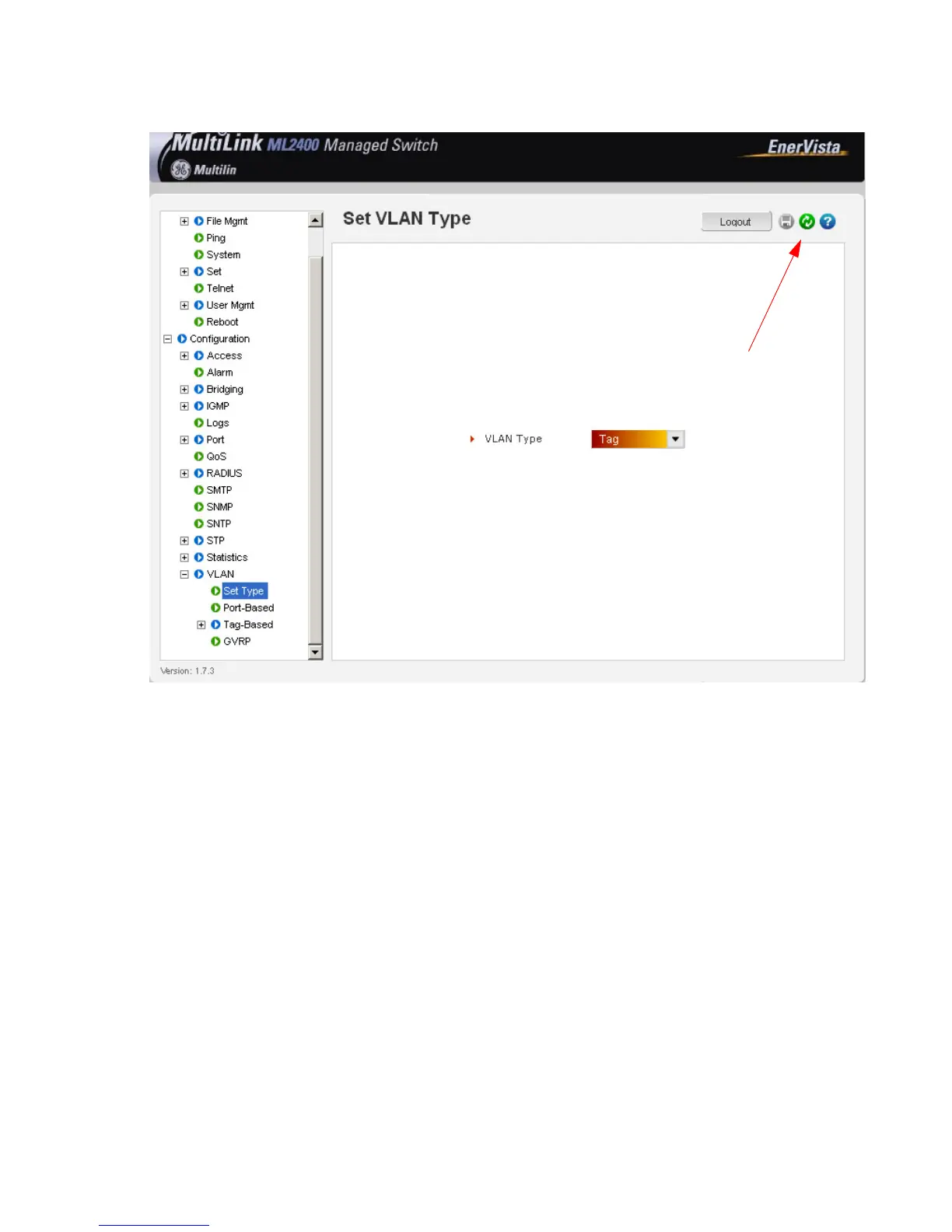

We have now configured the switch to support tagged based VLANs.

We can now proceed to the tagged based VLAN menu . From this menu we can see that all

ports have been assigned to the default tag based VLAN 1.

SAVE
