QS–56 MULTILINK ML1600/2400 ETHERNET COMMUNICATIONS SWITCH – QUICKSTART GUIDE
QUICK START GUIDE

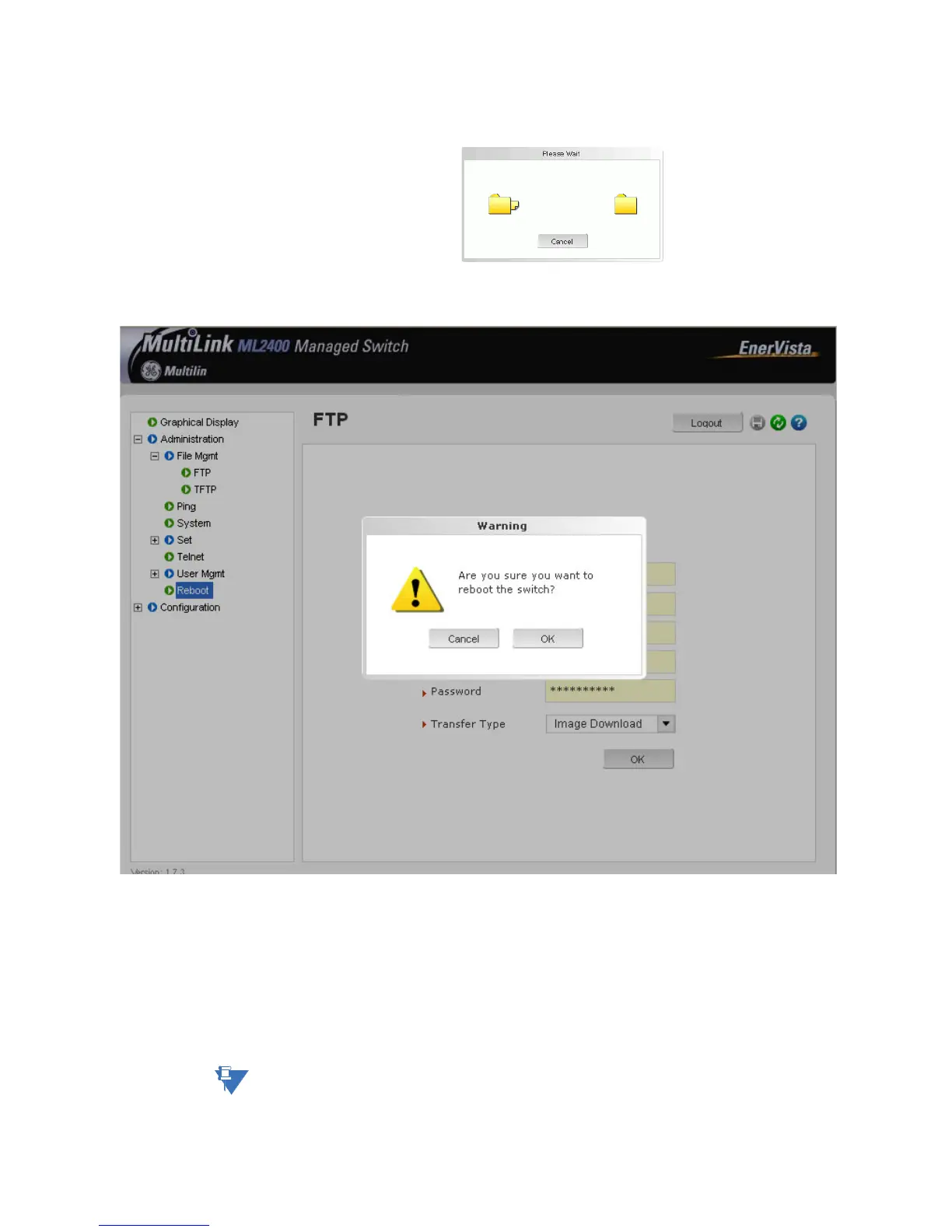

As the file is being loaded, you will see the file transfer in progress window.
Z Once the transfer is complete, the switch needs to be restarted.
After reboot, the new version of the Multilink firmware is ready for use.
Using TFTP
It is always a good idea to save the configuration before an upgrade. GE Multilin
recommends a two-step update: first save the configuration to the ftp server, then load
the new image and restart the switch.
Z Load the new firmware as shown below.
NOTE
Note
FTP is located under Configuration > File Mgmnt > TFTP, if the current firmware is older
than 1.7.3.
