QS–44
MULTIL
INK ML160
0/2400 ETHERNET COM
MUNICATIONS SWIT
CH – QUICKST
ART GUIDE
QUICK START GUIDE
Z

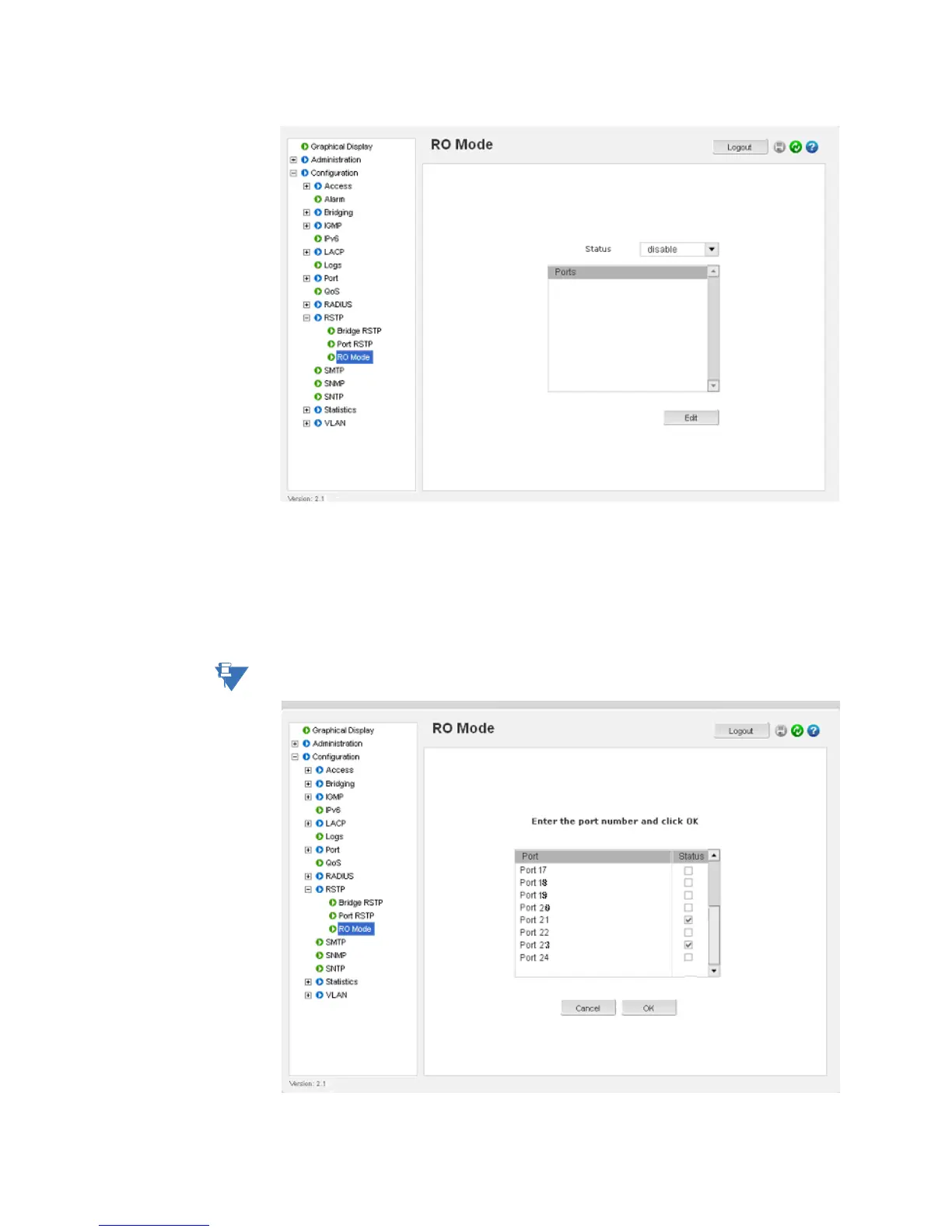

Select the
Conf
iguration > RSTP > RO Mode
menu as shown
above.
Z
Click the
Edit
button to conf
igure RO Mode.
Z
Select the desired por
ts that ar
e part of the ring, as shown below
.
Z
Click
OK
to exit
.
NOTE
Note
Only 2 ports can be select
ed to Ring Only Mode.
